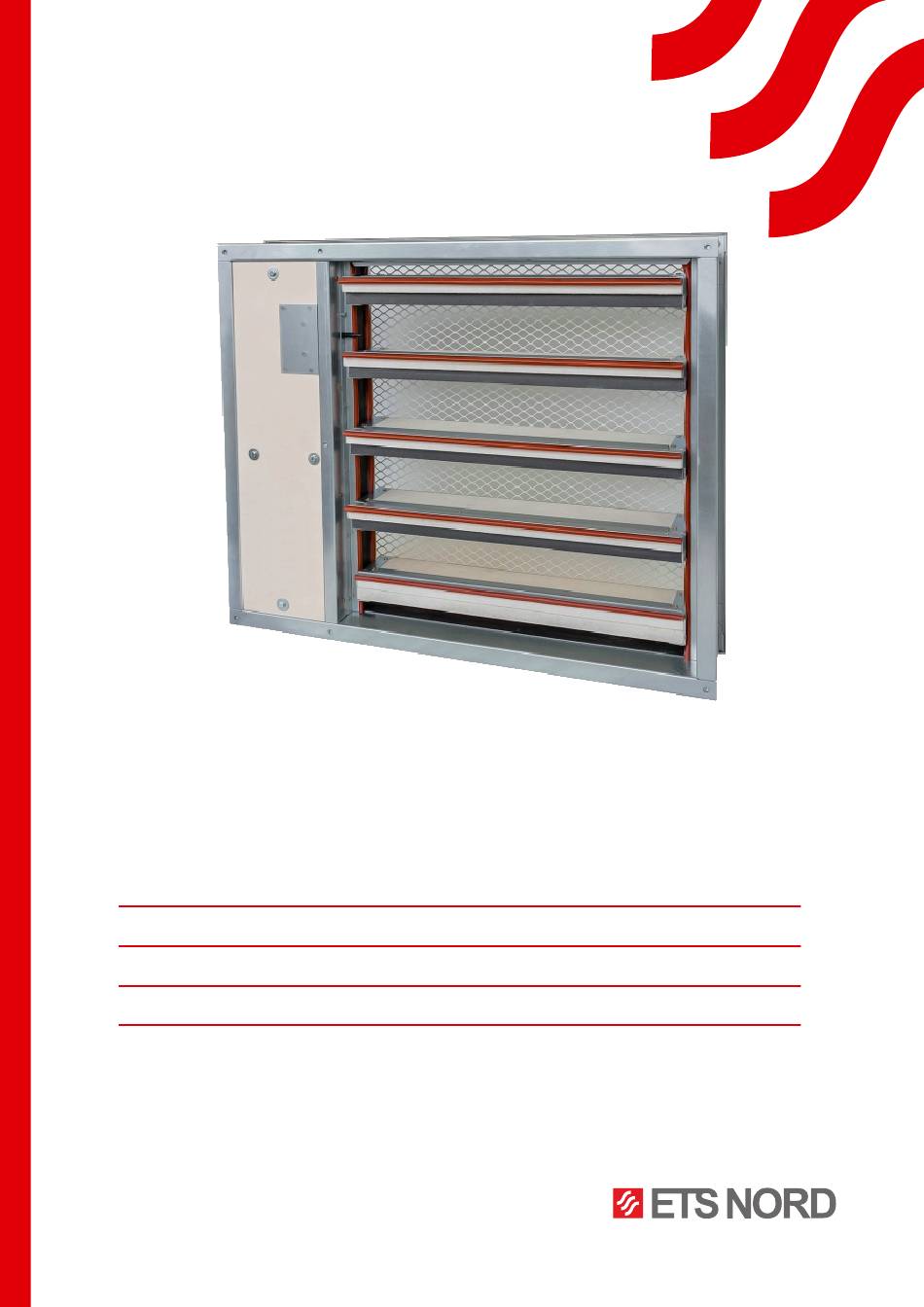

NORDfire
FDML Fire Damper
Square dampers from 200×300 mm to 1000×1000 mm
CE certified according to EN 15650
Fire resistance EIS 90, EI 120
Cycling tests in class C
Leakage according to EN 1751, through the casing class B and
through the damper blades class 3
according to EN 15650
10000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORDfire BFL 230-T and is the answer not in the manual?

Questions and answers

Summary of Contents for ETS NORD NORDfire BFL 230-T

  • Page 1 NORDfire FDML Fire Damper Square dampers from 200×300 mm to 1000×1000 mm CE certified according to EN 15650 Fire resistance EIS 90, EI 120 Cycling tests in class C according to EN 15650 10000 Leakage according to EN 1751, through the casing class B and through the damper blades class 3...
  • Page 2: Table Of Contents

    ® NORDfire | FDML Content 1. Description 2. Design 3. Dimensions 4. Material, finishing 5. Product marking 6. Installation 7. Technical data 8. Transportation, storage and warranty 9. Assembly, attendance and maintenance www.etsnord.com RDT-065-0524...
  • Page 3: Description

    ® NORDfire | FDML General 1. Description Fire dampers are shutters in ducts of air-conditioning devices that prevent the spread of fire and combustion products from one fire segment to the other one. FDML multi blade fire dampers are in motorised design only with actuator and they have two main applications.
  • Page 4: Design

    ® NORDfire | FDML 2. Design 2.1 Design with manual control Design .40 and .50 Fire dampers are equipped with Belimo spring return actuators with thermoelectric activation device BAT. The spring return actuator types are BFL, BFN or BF depending on the damper size. (Further mentioned as „actuator“). After being connected to power supply 230V or AC/DC 24V, the actuator rotates the damper blades to the operating position “OPEN”...
  • Page 5 ® NORDfire | FDML Actuator BELIMO BFL 230-T(-ST) <5° <80° Actuator BELIMO BFL 24-T(-ST) <5° <80° Tab. 1. Actuator BELIMO BFL 230-T(-ST), BFL 24-T(-ST) Actuator BELIMO - 4 Nm / 3 Nm Spring BFL 230-T(-ST) BFL 24-T(-ST) Power voltage AC 230 V AC/DC 24 V 50/60Hz 50/60Hz...
  • Page 6 ® NORDfire | FDML Actuator BELIMO BFN 230-T(-ST) <5° <80° Actuator BELIMO BFN 24-T(-ST) <5° <80° Tab. 2. Actuator BELIMO BFN 230-T(-ST), BFN 24-T(-ST) Actuator BELIMO - 9 Nm / 7 Nm Spring BFN 230-T(-ST) BFN 24-T(-ST) Power voltage AC 230 V AC/DC 24 V 50/60Hz 50/60Hz...
  • Page 7 ® NORDfire | FDML Actuator BELIMO BF 230-T(-ST) <5° <80° Actuator BELIMO BF 24-T(-ST) <5° <80° Tab. 3. Actuator BELIMO BF 230-T(-ST), BF 24-T(-ST) Actuator BELIMO - 18 Nm / 12 Nm Spring BF 230-T(-ST) BF 24-T(-ST) Power voltage AC 230 V AC/DC 24 V 50/60Hz 50/60Hz...
  • Page 8 ® NORDfire | FDML 2.2 Thermoelectric activation device BAT If the thermal fuse Tf1 is interrupted (due to temperature outside the duct), it is necessary to replace the spring return actuator. Thermoelectric activation device BAT is integral part of the actuator. If the thermal fuse Tf2 is interrupted (due to temperature inside the duct), only the spare part ZBAT 72 (95/120/140) needs to be replaced (acc.to the activation temperature).
  • Page 9: Dimensions

    ® NORDfire | FDML 3. Dimensions 164* 1 – Damper casing 2 – Cover grille 3 – Damper blade 4 – Cable glands 5 – Actuator cover * Depth with cover grilles ** Depth of a damper casing 150** Connecting dimensions of nuts M6 B ≤...
  • Page 10: Technical Parameters

    ® NORDfire | FDML 3.1 Technical parameters Weight (kg) Eff. Weight (kg) Eff. A×B No. of area A×B No. of area Actua. Actua. (mm) blades (mm) blades FDML* FDML* 200×300 15,3 0,0276 ×700 32,9 0,1069 ×315 15,9 0,0284 ×710 33,4 0,1093 ×355 17,1...
  • Page 11 ® NORDfire | FDML Weight (kg) Eff. Weight (kg) Eff. A×B No. of area A×B No. of area Actua. Actua. (mm) blades (mm) blades FDML* FDML* ×355 20,3 0,0679 ×750 41,6 0,2020 ×400 22,3 0,0823 ×800 44,1 0,2103 ×450 24,7 0,0855 ×850 46,0...
  • Page 12 ® NORDfire | FDML Weight (kg) Eff. Weight (kg) Eff. A×B No. of area A×B No. of area Actua. Actua. (mm) blades (mm) blades FDML* FDML* ×450 31,0 0,1512 ×850 56,1 0,3365 ×500 33,8 0,1794 ×900 58,9 0,3672 ×560 37,6 0,1906 ×950 61,7...
  • Page 13 ® NORDfire | FDML Weight (kg) Eff. Weight (kg) Eff. A×B No. of area A×B No. of area Actua. Actua. (mm) blades (mm) blades FDML* FDML* ×560 42,2 0,2413 ×950 71,0 0,4949 ×600 43,6 0,2699 ×1000 74,2 0,5356 ×630 45,5 0,2913 900×300 28,9...
  • Page 14: Material, Finishing

    ® NORDfire | FDML Weight (kg) Eff. A×B No. of area Actua. (mm) blades FDML* 55,3 0,3933 56,6 0,4126 60,2 0,4222 61,1 0,4319 63,9 0,4704 68,2 0,4897 70,8 0,5283 74,3 0,5765 78,0 0,5861 1000 81,5 0,6343 * For design with ZNP-10-24 power supply, a weight of 0,4 kg must be added. 4.
  • Page 15: Data Label

    ® NORDfire | FDML 5.1 Data label Data label is placed on the damper casing (example). MANDÍK, a.s. Dobříšská 550, 267 24 Hostomice, Czech Republic DIMENSION: DESIGN: WEIGHT (kg): SERIAL.NO.: MANUAL CLASSIFICATION: TPM XXX/XX Cert. No.: 1391-CPR-XXXX/XXXX, DoP: PM/XXXX/XX/XX/X EN 15650:2010 Images are for illustrative purposes.
  • Page 16: Placement And Installation

    ® NORDfire | FDML 6. Installation 6.1 Placement and installation The damper can be installed with blade axis vertically or horizontally, temperature sensor (BAT) must always be in damper upper part. The damper installation procedures must be done so that all load transfer from the fire sepa- rating constructions to the damper is absolutely excluded.
  • Page 17: Statement Of Installations

    ® NORDfire | FDML Dimensions of an installation opening min. A+290 max. A+490 Grounding of the damper It is necessary to ground the damper casing before installation. 6.2 Statement of installations Wall/ceiling min. Method of Placement Fire resistance Page thickness (mm) installation Mortar or gypsum In solid wall...
  • Page 18 ® NORDfire | FDML 6.3 In solid wall construction Fig. 1. In solid wall construction - mortar and gypsum EIS 90* EI 120** * In case with connected duct and with forced air flow ** In case without connected duct with grilles on both sides and with natural air flow ≥...
  • Page 19 ® NORDfire | FDML Fig. 2. In solid wall construction - Weichschott system EIS 90* EI 120** * In case with connected duct and with forced air flow ** In case without connected duct with grilles on both sides and with natural air flow *** HILTI system can be replaced by a similar system with the same or higher thickness, density, fire reaction class, tested according to EN 1366-3.
  • Page 20 ® NORDfire | FDML 6.4 In gypsum wall construction Fig. 3. In gypsum wall construction - mortar or gypsum EIS 90* EI 120** * In case with connected duct and with forced air flow ** In case without connected duct with grilles on both sides and with natural air flow ≥...
  • Page 21 ® NORDfire | FDML Fig. 4. In gypsum wall construction - Weichschott system EIS 90* EI 120** * In case with connected duct and with forced air flow ** In case without connected duct with grilles on both sides and with natural air flow *** HILTI system can be replaced by a similar system with the same or higher thickness, density, fire reaction class, tested according to EN 1366-3.
  • Page 22 ® NORDfire | FDML 6.5 In solid ceiling construction Fig. 5. In solid ceiling construction - mortar or gypsum EIS 90* EI 120** 50…150 50…150 * In case with connected duct and with forced air flow min. A+290 max. A+490 ** In case without connected duct with grilles on both sides and with natural air flow A+190...
  • Page 23 ® NORDfire | FDML 6.6 Examples of installation situations Damper in line with the wall Damper in th centre of the (fire-resistant cover boards wall (fire-resistant cover required) boards not required) Damper in the wall 150 mm Fire-resistant cover boards Damper with grille Damper with duct Damper with grille...
  • Page 24 ® NORDfire | FDML 6.7 Examples of fixing FDML Fig. 6. In solid wall construction - mortar or gypsum/Weichschott system min. 30 min. 30 Fig. 7. In gypsum wall construction - mortar or gypsum/Weichschott system min. 30 min. 30 min. 3 B+30 Screw two L-profiles to the damper using M6x20 screws + washers and fix the L-profiles to the wall using M8 anchors and nuts (solid wall construction) or screws (gypsum wall construction - screws must go through a...
  • Page 25 ® NORDfire | FDML Fig. 8. In solid ceiling construction - mortar or gypsum min. 3 B+30 Screw two L-profiles to the damper using M6x20 screws + washers and fix the L-profiles to the ceiling using M8 anchors and nuts. Fill the gap between the damper and the ceiling with mortar or gypsum. L-profiles must be removed before installing grilles or duct and are not part of the installation, they are only used to help install the damper.
  • Page 26 ® NORDfire | FDML Fig. 9. In solid wall construction - mortar or gypsum/Weichschott system max. 200 max. 100 min. 30 min. 30 Fig. 10. In gypsum wall construction - mortar or gypsum/Weichschott system max. 200 max. 100 min. 30 min.
  • Page 27 ® NORDfire | FDML 6.8 Example of duct connection The air duct is not connected to the damper in the entire cross-section of the damper, but only through the area of the damper with blades. The actuator cover must be accessible from at least one side. It is recommended that the cover be accessible from the side where the thermoelectric activation device cover is located for easy access.
  • Page 28: Technical Data

    ® NORDfire | FDML 7. Technical data 7.1 Pressure loss ∆p = ξ * ρ * (w / 2) ∆p presure loss (Pa) ξ coefficient of local pressure loss ρ air density (kg/m ³ air flow speed (m/s) Pressure losses for air density ρ=1,2 kg/m³...
  • Page 29: Transportation, Storage And Warranty

    ® NORDfire | FDML 1000 2,103 2,057 2,026 1,949 1,933 1,871 1,794 1,717 1,640 1,563 1,485 1,992 1,941 1,908 1,824 1,808 1,741 1,657 1,573 1,489 1,406 1,322 2,429 2,371 2,333 2,237 2,218 2,141 2,045 1,949 1,853 1,758 1,662 2,306 2,254 2,218 2,130 2,112...
  • Page 30 ® NORDfire | FDML Manual operation - actuator control without electric voltage A special wrench (part of the actuator) can be used to manually turn the damper blades to any position. When the wrench is turned in the direction of the arrow, the damper blades rotate to open position. As the blades rotation is stopped, in every position, the actuator will be locked.
  • Page 31 ® NORDfire | FDML How to proceed after Tf1 or Tf2 fuses have been activated If the thermal fuse Tf1 is interrupted (due to temperature outside the duct), it is necessary to replace the spring return actuator (see page 8). If the thermal fuse Tf2 is interrupted (due to temperature inside the duct) , only the spare part ZBAT 72 (95/120/140) needs to be replaced (acc.to the activation temperature) (see page 8).
  • Page 32 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 40 184 2842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 692 35 Kumla...
