Using Power Management

The LCD monitor follows the VESA approved DPM (Display Power Management function).
The power management function is an energy saving function that automatically reduces the power consumption of the
display when the keyboard or the mouse has not been used for a fixed period.
The power management feature on your new display has been set to the "ON" mode. This allows your display to enter a
Power Saving Mode when no signal is applied. This could potentially increase the life and decrease the power consumption of
the display.
NOTE: Depending on the PC and video card used, this function may not operate.

Selecting a video source

To view a video source:
Use the input button to set [VIDEO1], [VIDEO2], [S-VIDEO].
Use the COLOR SYSTEM menu to set [AUTO], [NTSC], [PAL], [SECAM], [PAL60], [4.43NTSC], according to your video
format.

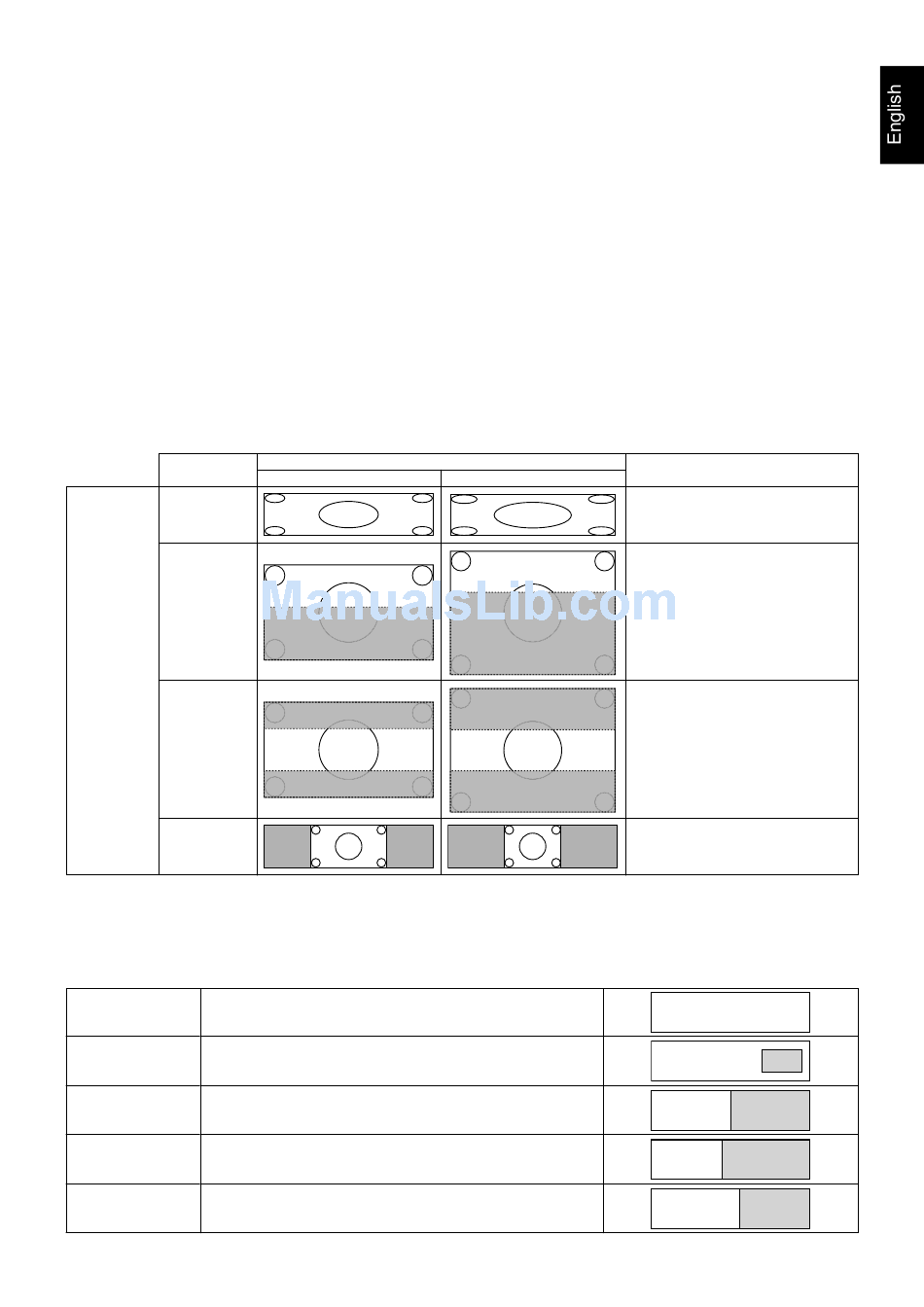

Picture Aspect

Select the Aspect ratio. [FULL], [TRIM], [ZOOM (CUSTOM], [NORMAL].
Mode
FULL
TRIM
Result by
aspect* 6
ZOOM
(CUSTOM)
NORMAL
NOTE: When the signal is 4:1 (1920 x 480), the image fills the entire screen no matter which mode you select.

PIP MODE

Select the viewing mode of sub picture.
OFF Display the main picture only.
PIP Display the sub picture in the main picture.
SIDE BY SIDE FULL Display the main picture and sub picture side by side.
Enlarge the horizontal direction to fill the entire screen by maintaining
POP ASPECT MAIN the aspect ratio of main picture. The remaining area is assigned to sub
picture.
Enlarge the horizontal direction to fill the entire screen by maintaining
POP ASPECT SUB the aspect ratio of sub picture. The remaining area is assigned to main
picture.
Aspect ratio of image
16:9
English-17
4:3
Image fills the entire screen.
Image is enlarged horizontally to fill the
top of the screen and maintain the
selected aspect ratio.
Image is enlarged horizontally to fill the
center of the screen and maintain the
selected aspect ratio. H POS/V POS
allows you to move the image's position.
Image is enlarged vertically to fill
the screen and maintain the selected
6
* Grey areas indicate unused portions of the screen.
Main Picture
Main Picture
Main Picture
Main Picture
Remark
aspect ratio.
Main Picture
Sub Picture
Sub Picture
Sub Picture
Sub Picture
