2 TrueHVLP™ Spray Finishing Systems
CONGRATULATIONS!! You have just purchased the finest HVLP air turbine system available.
You are about to enjoy the great benefits of TrueHVLP™. Our designs are the result of many
years experience in manufacturing HVLP turbine systems, and HVLP spray guns. We have
painstakingly worked and consulted with professional spray finishers to bring you this versatile,
well engineered tool.
Whether you are new to spray finishing, you have spray finished before, or are just new to HVLP
spraying; there are some basic spray finishing guidelines that will help you to achieve the best
results and optimum success from your new equipment. Reading this information carefully and
following these simple steps will ensure that you get the best performance and results from your
new TrueHVLP™ spray system.
Check the contents of your box. The following are included:
(1) Precision-6 Turbine Unit
(1) TrueHVLP™ Spray Gun
(1) 37' Flex-Air Hose
(1) Instruction Manual
(1) Wrench

2.1 How Your HVLP Turbine System Works

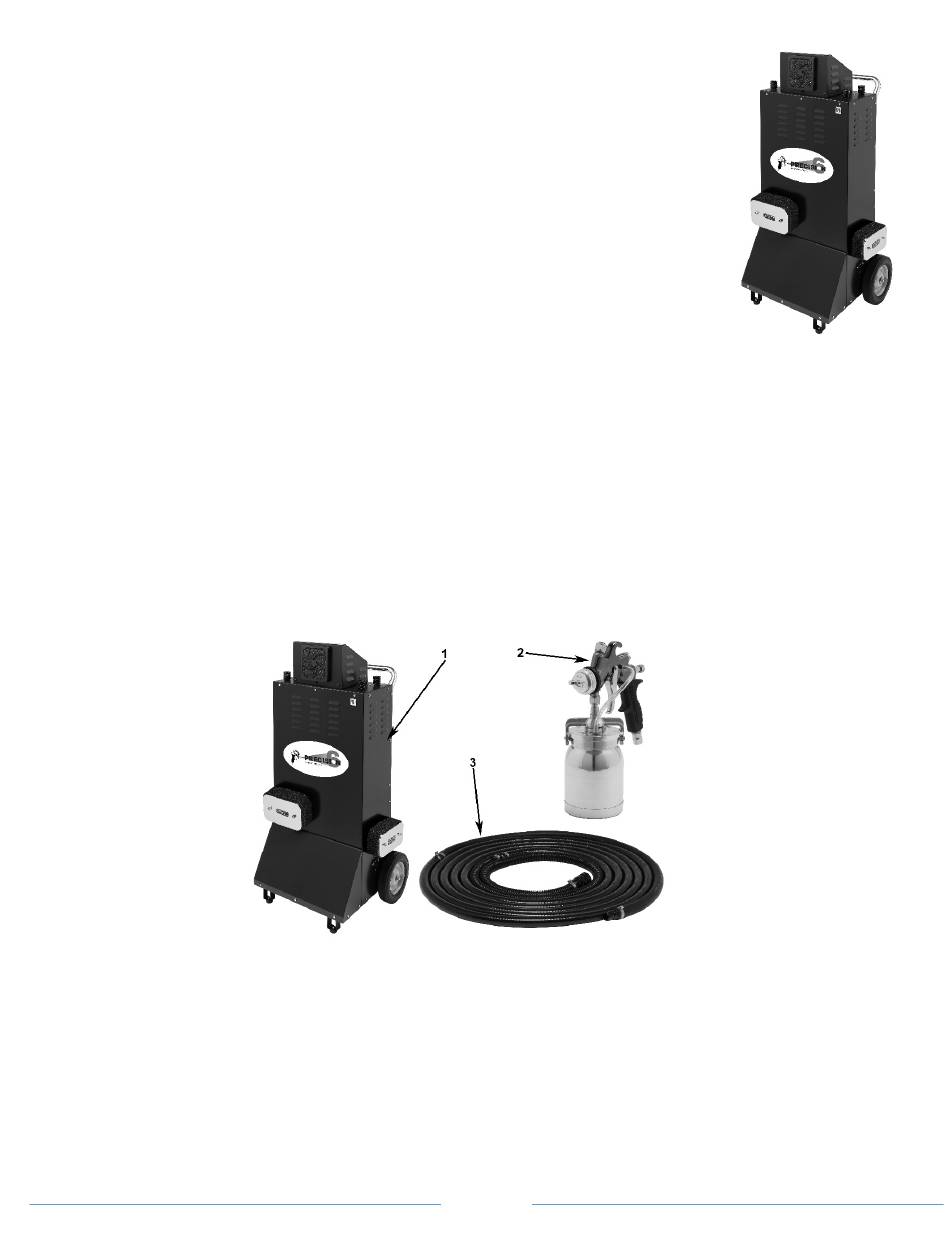

Your turbine system has three components: the turbine unit (1), spray gun (2) and air hose (3). The turbine unit, when connected
to the correct electrical power supply and with the on/off switch in the "on" position, provides a continuous sourc e of clean, warm,
dry, High Volume Low Pressure (HVLP) air. The air hose connects the turbine unit to the spray gun. Air flows through the hose to
the nozzle of the specially designed TrueHVLP™ spray gun. Atomization of the coating is achieved when the air mixes with the
stream of fluid passing through the tip/nozzle. This low pressure atomization principle achieves minimum misting (overspray) to
the spray environment.

2.2 How Your Spray Gun Works

Apollo's 7500 series spray gun is a non-bleeder style gun. When the turbine blower is turned "on", air will only flow
through the air cap when the trigger on the spray gun is activated or pulled back. Air also flows through the air feed tube to
pressurize the cup and deliver fluid to the tip/nozzle. When the paint flow screw is opened and the trigger pulled back, fluid flows
through the tip/nozzle mixing with the air flow delivered from the air cap and projects a fine atomized mist to your work piece.
Spray pattern control will vary depending on the spray gun model. Consult your individual spray gun manual for detailed
operation and maintenance of your spray gun.
(1) Spray Gun Lube
(1) Cleaning Brush
(1) Electric Cord
(5) Quick Coupler (4x Handi-Hold™) (1x Hose Coupler)
