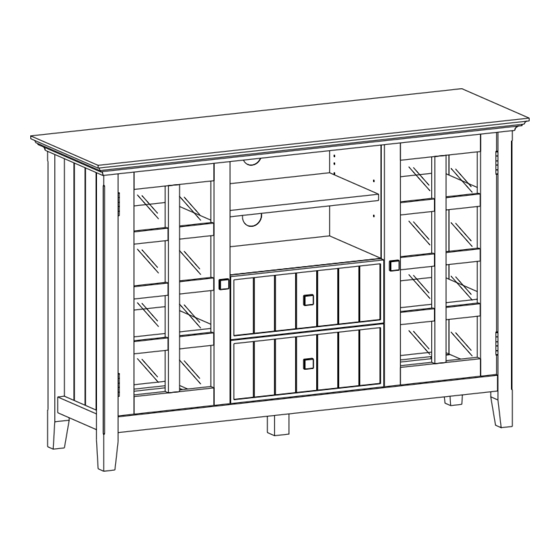

- Page 1 SIMP HOME L I F E B Y D E S I G N ACADIAN / NORMANDY / BRUNSWICK TALL TV MEDIA STAND MODEL # AXCRACA17-BRU 1/20...
- Page 2 SIMP HOME L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCRACA17-BRU PARTS DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 CABINET SHELF UPPER CENTRE SHELF LOWER CENTRE SHELF QTY 4 QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCRACA17-BRU PARTS DESCRIPTION BACK PANEL BACK PANEL LEFT BACK PANEL QTY 1 QTY 1 QTY 1 Warning Label RIGHT BACK PANEL DOOR (L&R Same) DRAWER FRONT QTY 1 QTY 2 QTY 2 RIGHT DRAWER SIDE DRAWER BACK LEFT DRAWER SIDE QTY 2 QTY 2...
-
Page 7: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXCRACA17-BRU HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN M6 X 30 mm ALLEN KEY CAM LOCK QTY 26 QTY 20 SETS QTY 1 PHILLIPS SCREW ROUND HEAD PHILLIPS SHORT SCREW M4 X 15 mm M3 X 12 mm SHELF SUPPORT QTY 24 QTY 12... - Page 8 COMPONENTS – KEY DIAGRAM MODEL # AXCRACA17-BRU 8/20...
- Page 9 ASSEMBLY MODEL # AXCRACA17-BRU STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front L . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides ML , MR . 3. Insert 2 Cam Locks 2 into guide holes on each Drawer Side ML , MR . 4.
- Page 10 ASSEMBLY MODEL # AXCRACA17-BRU STEP 3 1. Align Drawer Back N with Drawer Bottom O and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3. Use Allen key 3 to tighten. Do not over tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 11 ASSEMBLY MODEL # AXCRACA17-BRU STEP 5 1. Attach 3 Cam Lock Pins 2 into pre-drilled holes on each Divider DL , DR . 2. Align Cam Lock Pins with guide holes and attach Lower Centre Shelf E . 3. Insert 6 Cam Locks 2 into guide holes on Lower Centre Shelf E . 4.
- Page 12 ASSEMBLY MODEL # AXCRACA17-BRU STEP 7 1. Attach 3 Cam Lock Pins 2 into pre-drilled on each Side BL , BR . 2. Align Cam Lock Pins with guide holes and attach Bottom Shelf C . 3. Insert 6 Cam Locks 2 into guide holes on Bottom Shelf C . 4.
- Page 13 ASSEMBLY MODEL # AXCRACA17-BRU STEP 8 1. Use 12 Allen Key Screws 1 attach Top A to Sides BL , BR and Dividers DL , DR . 2. Use Allen Key 3 to tighten screws. Do not over-tighten. 13/20...
- Page 14 ASSEMBLY MODEL # AXCRACA17-BRU STEP 9 1. Attach Bottom Support Leg P to Bottom Shelf C using 4 Phillips Screws 10 . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten. STEP 10 Note: The back of the tv frame does not have pre-drilled holes to attach the back panels. Warning Label 1.
- Page 15 ASSEMBLY MODEL # AXCRACA17-BRU First Step Last Step ( after adjust the door ) STEP 11 1. Attach hinges on Doors K to Sides BL , BR using Phillips Screws 6 into pre-drill holes: - Using Phillips screwdriver to attach Screws 6 at middle hole of hinges for both top & bottom hinges.
- Page 16 ASSEMBLY MODEL # AXCRACA17-BRU STEP 12 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use 4 Shelf Supports 5 for each Shelf F , G in desired location . 2. 2 Shelf Supports 5 may be used on back top of each Shelf F , G as a tipping restraint.
- Page 17 ASSEMBLY MODEL # AXCRACA17-BRU STEP 13 1. Insert assembled drawers into glides on assembled TV 17/20...
- Page 18 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 19 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 20: Warranty
SIMP HOME L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
