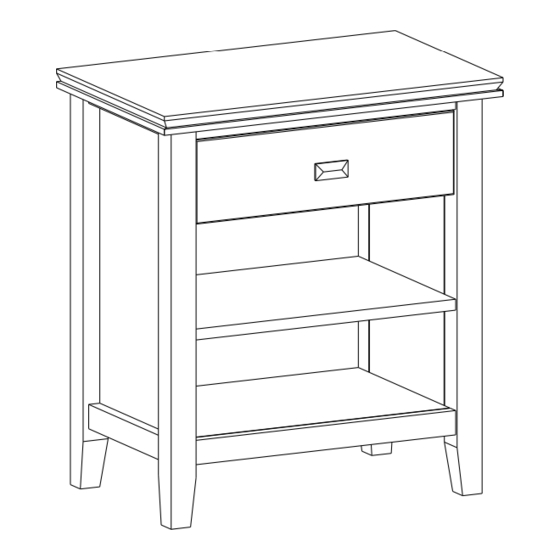

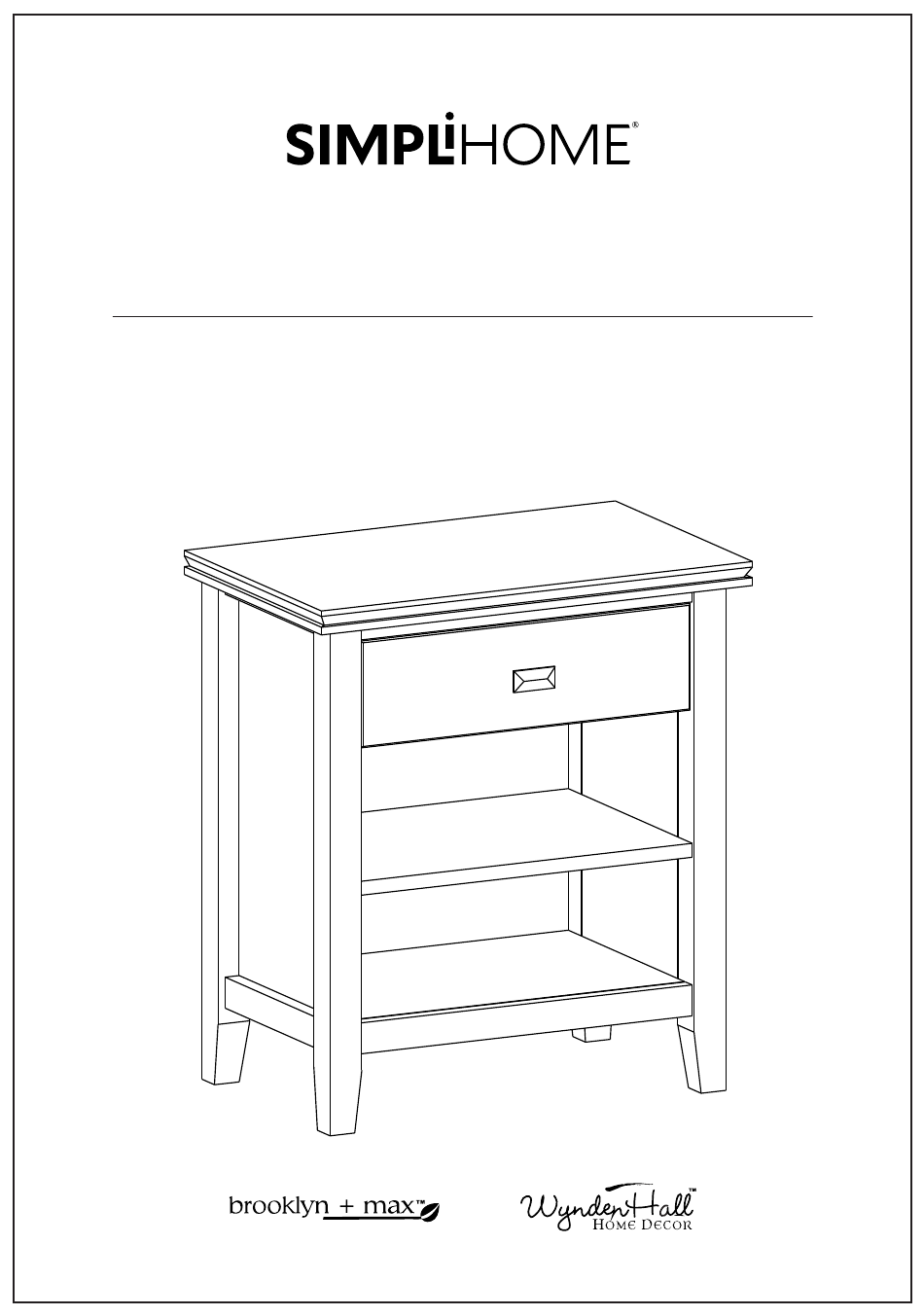

- Page 1 Artisan / Holden / Stratford Bedside Table Model # AXCRART46-RUS...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCRART46-RUS Part Description SHELF BOTTOM SHELF QTY 1 QTY 1 QTY 1 TOP BACK PANEL LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DRAWER SIDE DRAWER FRONT BOTTOM BACK PANEL QTY 1 QTY 1 QTY 1 RIGHT DRAWER SIDE DRAWER BACK...
-
Page 8: Pre-Assembly Information
Pre-Assembly Information Model # AXCRART46-RUS Hardware Description ALLEN KEY BOLT ALLEN KEY SCREW CAM LOCK PIN M6 X 30 mm M6 X 30 mm CAM LOCK QTY 8 QTY 4 QTY 4 SETS HANDLE WOOD DOWEL ALLEN KEY M4 X 25 mm Ø8 X 30 mm QTY 1 QTY 1 SET... - Page 9 Components - Key Diagram Model # AXCRART46-RUS...
- Page 10 Assembly Model # AXCRART46-RUS Assembly Model # AXCRART46-RUS Step 1 1. Attach 4 Cam Lock Pins 3 to pre-drilled holes at back of Drawer Front F . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides GL , GR . 3.
- Page 11 Assembly Model # AXCRART46-RUS Step 3 1. Align Drawer Back H with Drawer Bottom I and press firmly into slot. 2. Attach Drawer Back using 2 Allen Key Screws 2 through guide holes on each Side GL , GR . 3.
- Page 12 Assembly Model # AXCRART46-RUS Step 5 1. Insert 6 Dowels 5 into guide holes on Shelf C . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. ½ length of Dowels should be exposed. 3. Align guide holes on Sides DL , DR with Dowels 5 on Shelf C . 4.
- Page 13 Assembly Model # AXCRART46-RUS Step 6 1. Attach Top A to Sides DL , DR using 4 Allen Key Bolts 1 ( 2 Bolts / each Side ). 2. Use Allen Key 6 to tighten bolts. Do not over-tighten.
- Page 14 Assembly Model # AXCRART46-RUS Note: Step 7 The back of the table frame does not have pre-drilled holes to a ach the back panels. 1. Attach Back Panels E1 , E2 to back frame of cabinet using Phillips Screws Round Head 7 through guide holes.
