Related Manuals for BIOS Diagnostics BD313
Summary of Contents for BIOS Diagnostics BD313
- Page 1 BLOOD PRESSURE MONITOR Simplicity Instruction Manual Model: BD313 Go to biosmedical.com Advancing Home Monitoring for a FREE Log Book! Since 1973 biosmedical.com 08.04.22...
- Page 2 Certificate of Excellence from Angelique Berg, CEO of Hypertension Canada Trusted by Canadians for 3 Generations At BIOS Diagnostics™, we are proud of our legacy in blood pressure monitoring in Canada. From the early 1930’s to 1987 we manufactured “Tycos” brand professional blood pressure equipment for doctors and hospitals in Canada.
-
Page 3: Table Of Contents
1.2 Safety Information 1.3 What do your Numbers Mean? 1.4 Normal Blood Pressure Values 2. Getting Started 2.1 About the BD313 2.2 About the LCD Screen 2.3 Inserting the Batteries 2.4 Using the AC/DC Power Adapter 3. Using the Device Setting Time, Date and Year 3.2 Obtaining Accurate Measurements... - Page 4 5. Trouble Shooting Error Messages & Malfunctions Calibration 6. Care and Maintenance 7. 4 Year Limited Warranty 8. Technical Specifications...
-
Page 5: Introduction
Indications for Use: This blood pressure monitor (BD313) is intended to measure the systolic/diastolic pressure, and pulse rate of an adult individual by using a non-invasive oscillometric technology. This device is designed to be portable, and used in both home and professional environments for every day blood pressure monitoring. -
Page 6: Safety Information
1.2 Safety Information • Self-measurement means control, not diagnosis or treatment. Your values must always be discussed with your doctor or a physician who is familiar with your family history. • If you are undergoing medical treatment and receiving medication, consult your doctor to determine the most appropriate time to measure your blood pressure. -
Page 7: What Do Your Numbers Mean
— After consuming alcohol — After taking a bath • The pulse display is not suitable for checking the frequency of heart pacemakers. • If you have been diagnosed with a severe arrhythmia or irregular heartbeat, vascular constriction, liver disorders, or diabetes, have a cardiac pacemaker, or are pregnant, measurements made with this instrument should only be evaluated after consultation with your doctor. -
Page 8: Normal Blood Pressure Values
1.4 Normal Blood Pressure Values When rested, and measuring your blood pressure at home, measurements with diastolic pressure readings above 85 mmHg or systolic readings over 135 mmHg are considered high. If you obtain consistent readings in this range, consult your doctor immediately. -
Page 9: Getting Started

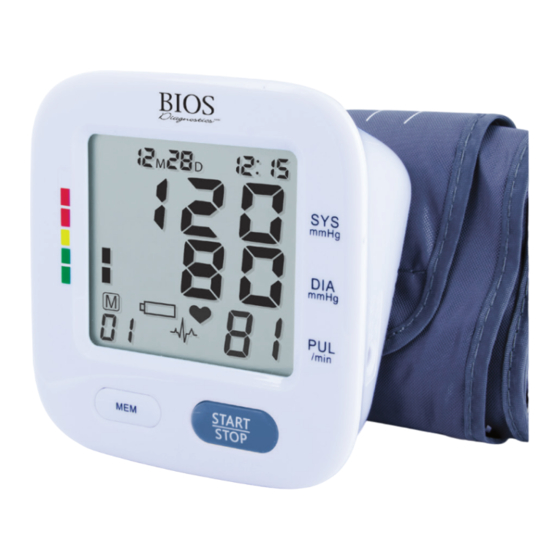

* Hypertension measured at a physician’s office for a diabetic patient ≥ 130/80 For further information, see our website www.biosmedical.com. 2. Getting Started 2.1 About the BD313 This section describes the various components of the Blood Pressure Monitor - Simplicity. Wide... -
Page 10: Inserting The Batteries
Year / Month / Date / Time Blood Pressure Classification Systolic Blood Pressure Diastolic Blood Pressure Memory Symbol Pulse Memory Times mmHg Low Battery Heartbeat Rhythm Irregular Heartbeat 2.3 Inserting Batteries (not included) Follow these steps to insert four “AAA” batteries in the device. 1. -
Page 11: Using The Device
3. Using the Device This section describes how to get the maximum benefit from your BD313 blood pressure monitor. Follow the instructions carefully to get an accurate measurement of your blood pressure and pulse rate. -
Page 12: Obtaining Accurate Measurements
5. Next, you will see “CL” on the display, press the MEM button to exit out of the setup or see section 3.8 on how to Clear Measurements from Memory. NOTE: In order to change any setting you must repeat the process and confirm each setting by pushing the MEM button. -
Page 13: C Fitting The Wide Range Cuff
ATTENTION! Comparable blood pressure measurements always require the same conditions with a peaceful and calm environment. Ensure that you take measurements under the same conditions to obtain an accurate and reliable readings. • If the arm artery lies considerably lower or higher than the heart, an erroneous value of blood pressure is measured. - Page 14 c) Pull the cuff and tighten it by attaching the Velcro fastener. ® d) The cuff should fit snugly around the bare arm, but not too tight. You should be able to fit two fingers under the cuff. If the cuff is the wrong size, the device will not measure your blood pressure accurately.
-
Page 15: Measuring Your Blood Pressure
If this device was stored in low temperature, it is necessary to leave it in room temperature for at least 1 hour, otherwise the measurement can be inaccurate. Comment: Continue to use the same arm for comparisons. It is not unusual for there to be a difference in blood pressure between arms. -
Page 16: Determining Your "Real" Average Blood Pressure At Home
3.5 Determining Your “Real” Average Blood Pressure at Home It is normal for blood pressure to vary significantly in the middle of the day when most people are busy with their daily tasks. Hypertension Canada recommends measuring in the morning and evening to avoid variability. At the end of a measurement, this instrument automatically stores each result, including date and time. -
Page 17: Memory Recall
RESULTS Discard Day 1 measurements. Average your day 2-7 measurements = Average ≤ ≥ 135 / 85 mmHg = NO 135 / 85 mmHg = No Hypertension Yes Hypertension *Note: If the result is “borderline” repeat the series for confirmation. This data can be used by a medical professional to make a diagnosis of hypertension. -
Page 18: Blood Pressure Assessment Indicator
appears. Press the START/STOP button until ” flashes 3 times to clear the memory. After this, press either the MEM button, “ the symbols “ ” and “ ” will appear on the screen. This means that the memory has successfully cleared. -
Page 19: Comparing Readings To Other Blood Pressure Devices
mmHg Time b) Why is the doctor’s reading different from the reading taken at home? Your blood pressure can vary due to the environment (temperature, nervous condition). When measuring blood pressure at the doctor’s office, it is possible for blood pressure to increase due to anxiety and tension, this is known as “White Coat Hypertension”. - Page 20 requires three pairs of measurements with 60 seconds between measurements. These measurements are averaged and a comparison can be made. Since most people tend to relax and their blood pressure falls with subsequent measurements, following this protocol reduces these natural changes in Blood Pressure levels. The standard technical error of both consumer and professional devices is normally ±3 mmHg, so a discrepancy of 6 mmHg is acceptable even when the devices are working within their specifications.
- Page 21 If problems occur when using the device the following points should be checked, and if necessary, the corresponding measures should be taken. Malfunction Remedy 1. Check batteries for correct polarity. The display remains blank when the 2. If using the AC adapter, ensure it is device is switched on.
- Page 22 Do not use the device if you think it is damaged, or if anything appears unusual. 7. 4 Year Limited Warranty This BIOS Diagnostics blood pressure monitor has a 4 year limited warranty to be free of manufacturing defects for the life of the original owner. This warranty does not include the inflation system including the cuff and inflation bladder.
- Page 23 100% Satisfaction Guarantee If at any time, you are not completely satisfied with the performance of this device, call our BIOS Medical Hotline and speak with a customer service representative, who will make arrangements to have the device repaired or replaced to your full satisfaction. If you have questions regarding the operation of your monitor call the BIOS Medical Hotline: 1-866-536-2289 Should repair be necessary, return the unit with all component pieces.
- Page 24 Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use. Type BF applied part Batteries and electronic devices must be disposed of in accordance with the locally applicable regulations, not with domestic waste.
