Summary of Contents for BIOS Diagnostics BD270

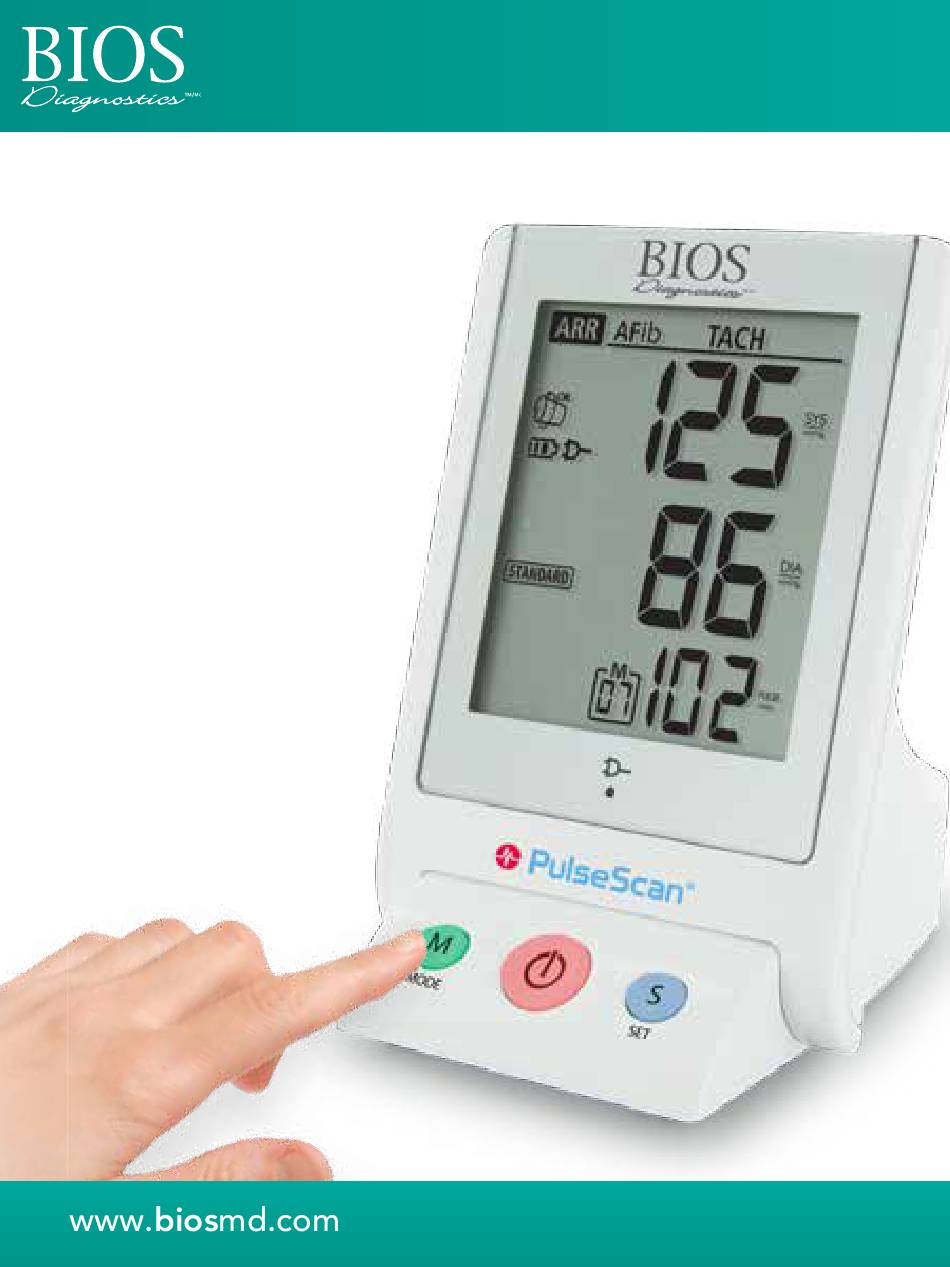

- Page 1 AUTOMATIC PROFESSIONAL Blood Pressure Monitor Instruction Manual Model: BD270 01.09.18 23.11.2017...
- Page 2 Berg, CEO of Hypertension Canada Trusted by Canadians for 3 Generations At BIOS Diagnostics™, we are proud of our legacy in blood pressure monitoring in Canada. From the early 1930’s to 1987 we manufactured “Tycos” brand professional blood pressure equipment for doctors and hospitals in Canada.
-
Page 3: Table Of Contents
Automatic Professional Blood Pressure Monitor Instruction Manual Table of Contents Introduction Features General Warnings and Cautions Getting Started About the BD270 About the LCD Screen Monitor Installation - Trolley PulseScan (Pulse Arrhythmia Technology) Atrial Fibrillation Detection (Afib) Premature Contraction Detection (PC) Tachycardia Detection (TACH) -
Page 4: Introduction
Never use thinner, alcohol or petrol as cleaner. 8. There are no user-serviceable parts inside the BD270. You should not use any tool to open the device nor should you attempt to adjust anything inside the device. - Page 5 10. Improper disposal of batteries may create an explosion or contamination hazard. Never dispose of batteries in refuse containers. Do not dispose of the battery in fire. Always recycle batteries according to local regulations. 11. Improper handling of the battery can lead to heat generation, smoke, bursting or fire. 12.
-
Page 6: Getting Started

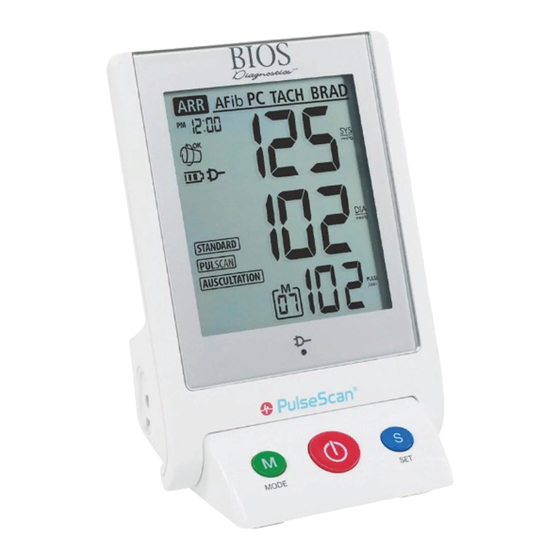

2. Getting Started 2.1 About the BD270 This section describes the various components of the Automatic Professional Blood Pressure Monitor. LCD Display Arm Cuff Charging LED SET Button MODE Button ON/OFF Button Air Tube and Connector TIME/DATE + Button Button... -
Page 7: About The Lcd Screen
2.2 About the LCD Screen sec. STANDARD PULSCAN AUSCULTATION SET DEFLATION Arrhythmia Detection (ARR) 10. AC Power Icon 11. Standard Mode Atrial Fibrillation Detection (AFib) Premature Contraction Detection (PC) 12. Pulsescan Mode Tachycardia Detection (TACH) 13. Ausculatation Mode 14. Set Deflation Rate Bradycardia Detection (BRAD) Time and Date 15. - Page 8 2.3 Monitor Installation - Stand (Optional) Model number for stand - BD271 Installing Monitor on the stand Placing Protection Cover onto the Monitor...
-
Page 9: Pulsescan (Pulse Arrhythmia Technology)
2.4 PulseScan (Pulse Arrhythmia) Technology PulseScan (ARR) technology specifically detects the existence of pulse arrhythmia, including Atrial Fibrillation (AFib), Atrial and / or Ventricular Premature Contractions (PC), Tachycardia (TACH), and Bradycardia (BRAD). Pulse Arrhythmia may be related to cardiac disorders, needs medical attention and thus early diagnosis is of paramount importance. -
Page 10: Premature Contraction Detection (Pc)
2.6 Premature Contraction Detection (PC) Extra abnormal heartbeats generated in irregular excitation sites of your heart, either in the atria (PAC), the ventricle (PVC) or the cardiac conduction nodes (PNC). These extra beats may disrupt the regular rhythm, they may come in early or cause a significant pause regarding your perceivable pulse. -
Page 11: Pulse Arrhythmia Detection (Arr)
NOTE: It is strongly recommended, that you consult your physician, if either the BRAD icon occurs several times, or, if your BRAD is known to your doctor, but the incidence of BRAD readings changes over time. Your doctor will then be able to provide all required medical test and possible therapeutic procedures. -
Page 12: Preliminary Remarks
2.10 Preliminary Remarks This Blood Pressure Monitor complies with the European regulations and bears the CE mark “CE 0120”. The quality of the device has been verified and conforms to the provisions of the EC council directive 93/42/ EEC (Medical Device Directive), Annex I essential requirements and applied harmonized standards. -
Page 13: Installation And Replacement Of Battery Pack
3.2 Installation and Replacement of Battery Pack Warning: • If the fluid in the battery gets into your eye, wash the eye with sufficient water without rubbing the eye, then immediately consult the doctor for treatment. There is danger in losing your eyesight. •... -
Page 14: Obtaining Accurate Measurements
4. Connect the main unit and the AC adapter, then charge the battery pack. The battery pack is not charged when you purchase the monitor. Important: When using the battery pack for the first time, charge for more than twelve hours before use. -
Page 15: A Tips For Taking Accurate Measurements
3.3A Tips on Taking Accurate Measurements In morning before breakfast, 2 hours after dinner, before taking Empty bladder (if necessary). medication. Rest quietly for 5 minutes. Avoid coffee and smoking within the Remain calm and quiet while the hour, and no exercise 30 minutes measurement is in process. -
Page 16: C Fitting The Cuff
3.3C Fitting the Cuff a) Select cuff according to arm size: Cuff size Arm circumference Results 34 - 46 cm L size (13.4”-18.1”) 24 - 36 cm M size (9.4” - 14.2”) 16 - 26 cm S size (6.3” - 10.2”) Index Line Arm Circumference Indicator Artery Mark... - Page 17 c) Place the cuff around the patients bare arm. Make sure the bottom edge of the cuff is about 1” (2-3 cm) above the elbow joint. Adjust the cuff so that the rubber tubing under the cuff lies over the brachial artery, which runs on the inside of the arm (see Fig.
- Page 18 g) You can adjust the level of the arm by putting a cushion under the arm. Ideally the cuff should be at heart level. h) Remain seated in a comfortable room temperature for at least 5 minutes, then start the measurement. i) If this device was stored in low temperature, it is necessary to leave it in room temperature for at least 1 hour, otherwise the measurement can be inaccurate.
-
Page 19: Using The Device
4. Using the Device Follow instructions carefully to get an accurate measurement of your blood pressure and pulse rate. 4.1 Setting the Date and Time NOTE: Setting the Year/Month/Day/Hour/Minute is one sequential process • Start with the power off, but with batteries or adapter inserted into the machine. •... -
Page 20: C Auscultation/Manual Mode
• Power on the machine by pressing the ON/OFF button. The LCD will show on the screen. • Press the “M” MODE button to select the Pulsescan mode. will appear on the LCD screen. • Press the “M” MODE button once to initiate the countdown process. You will see seconds appear on the LCD screen. -
Page 21: Setting Deflation Rate
4.3 Setting Deflation Rate In the Auscultation mode, select the deflation rate of 2.5 mmHg/sec, 4.5 mmHg/sec, 6.5 mmHg/sec by pressing the “S” SET button. AUSCULTATION AUSCULTATION AUSCULTATION 4.4 Loose Cuff Detection If the cuff was applied too loosely, it may cause unreliable measurement results or measurements can fail to start. -
Page 22: Clearing Values From Memory
• Press the ON/OFF button again to turn the monitor on. • Press the “S” SET button to enter into the Memory Recall. You will see M with a number on the screen. In Standard Mode the number underneath the M indicates the stored number of measurements in the memory. -
Page 23: Error Messages / Malfunctions
5. Error Messages and Malfunctions If any abnormality should arise during use, please check the following points. Symptoms Check Points Correction Charge the battery pack or Have the batteries run down? replace with a new one No display when the ON/ Re-insert the connector of OFF button is pressed Has the connector of the battery... -
Page 24: Specifications
6. Specifications* Measurement Method : Oscillometric Pressure: 30-260mmHg; Measurement Range : Pulse: 40-199 beats/ minute Pressure Sensor : Semi conductor Pressure: ±3mmHg; Accuracy : Pulse : ±5% of reading Inflation : Pump Driven Deflation : Automatic Pressure Release Valve Memory capacity : 7 memories (standard mode) Auto-shut-off : 5 minute after last key operation... -
Page 25: Year Warranty
Lower minimum separation distances shall be calculated using the equation specified in 8.10. Manufacturer’s declaration-electromagnetic immunity The BD270 is intended for use in the electromagnetic environment specified below. The customer or the user of the BD270 should assure that is used in such and environment. Compliance... - Page 26 If you have questions regarding the operation of your monitor call the BIOS Medical Hotline: 1-866-536-2289 Should repair be necessary, return the unit with all component pieces. Enclose proof of purchase and $5.00 for return shipping and insurance. Ship the unit prepaid and insured (at owners option) a division of Thermor Ltd.
Need help?
Do you have a question about the BD270 and is the answer not in the manual?
Questions and answers

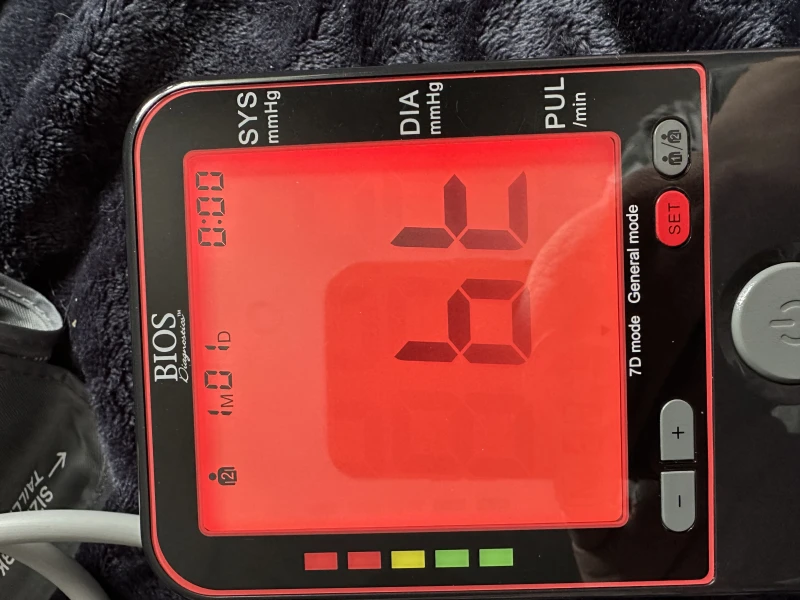

Im having an error that I cannot find
The error messages on the BIOS Diagnostics BD270 indicate different issues and suggest corresponding actions:
- EE / Measurement Error: Ensure the cuff is wrapped correctly, keep the arm steady, and check if the L-plug is securely connected to the air socket.
- E1 / Air Circuit Abnormality: Ensure the L-plug is securely connected and try measuring again calmly.
- E2 / Pressure Exceeding 300 mmHg: Turn off the unit and retry the measurement quietly.
- E3 / Data Error: Remove the batteries, wait 60 seconds, then reload and try again.
- Er / Exceeding Measurement Range: Try measuring again quietly.
If errors persist, contact the BIOS Medical Hotline.
This answer is automatically generated
