BIOS Diagnostics BD280 Instruction Manual

Affordable abpm and strictly guideline-based sbpm for accurate out-of-office blood pressure measurement
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

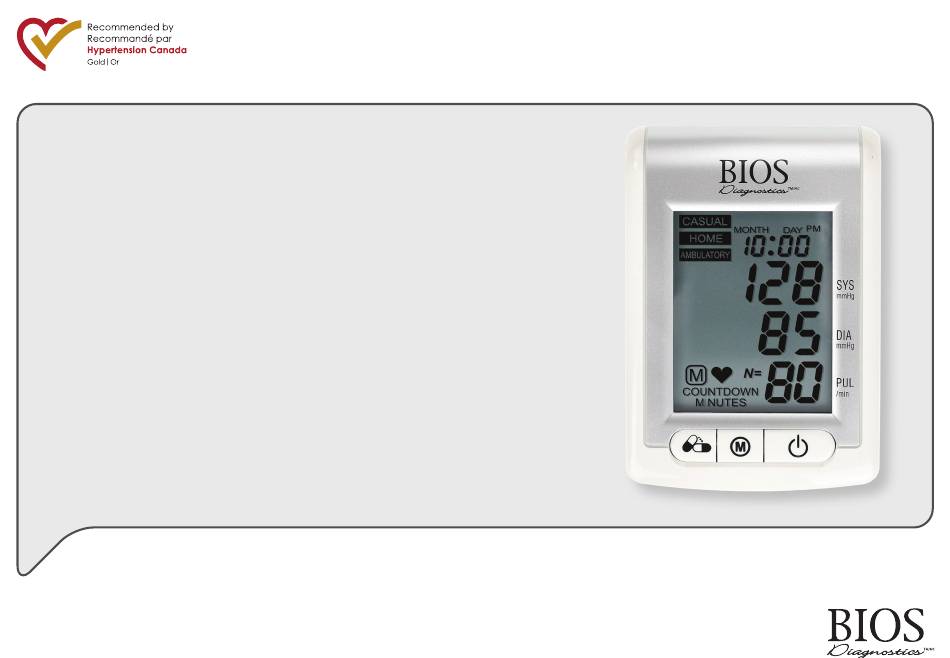

Model: BD280
Affordable ABPM and strictly
guideline-based SBPM for
accurate out-of-office blood
pressure measurement.
Instruction Manual
11.09.22
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BD280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIOS Diagnostics BD280

Summary of Contents for BIOS Diagnostics BD280

  • Page 1 Model: BD280 Affordable ABPM and strictly guideline-based SBPM for accurate out-of-office blood pressure measurement. Instruction Manual 11.09.22...
  • Page 2 The BIOS Diagnostics BD280 Ambulatory Blood Pressure Monitor is designed to provide reliable and unbiased ambulatory and self blood pressure measurement results, and strictly follows European Society of Hypertension (ESH), American Heart Association (AHA) and Hypertension Canada recommendations for out-of-office blood pressure measurement .The BD280 device has...
  • Page 3 It offers a programmable 24-hour patient out-of-office blood pressure measurement on the ambulatory mode. This device can be used in both home and professional environments. The BD280 can be used in connection with a computer running the BIOS Diagnostics BD280 Analyzer software. The memory data can be transferred to the computer by connecting the monitor via a USB cable.
  • Page 4 Contraindications • The measuring arm suffers from injuries (e.g. open wounds) or conditions (e.g. intravenous drip and blood vessel stent implant) making it unsuitable for surface contact or pressurization of the arm. • The application of the cuff would apply undue pressure on a limb where intravascular access/therapy, or an arteriovenous shunt is present.

  • Page 5: Table Of Contents

    Taking blood pressure measurements Name of parts and display ....... 6-7 “AMBULATORY” mode........20-24 “HOME” mode..........25-26 Before using BD280 for the first time “CASUAL” mode..........27-28 Activating the device ........8 Confirm cuff size..........9 Viewing, deleting and transferring measurements Viewing measurements........

  • Page 6: Product Description

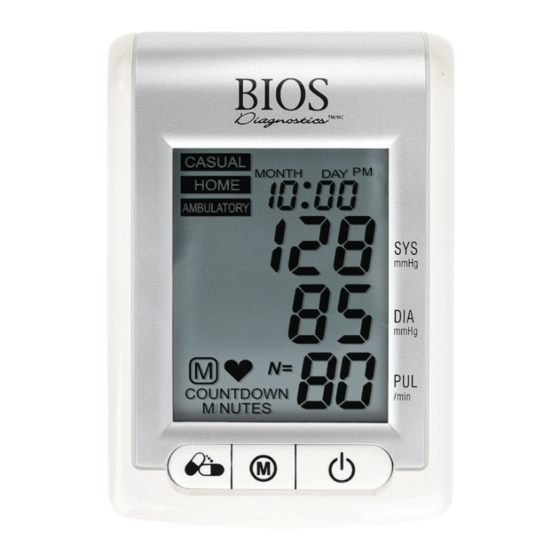

    Product description Name of parts mmHg mmHg Display D I A D I A mmHg mmHg Cuff Socket /min /min START/ STOP Button M Button (Memory) Battery Medication Compartment Button USB Port Mode Switch...
  • Page 7 Product description Display Morning Data Mode Indication Evening Data Doctor Symbol Date/Time Outside Measurement Time Systolic Value Relax Diastolic Value Battery Display Pulse Indicator Pulse Rate Stored Value Number of Stored Data Time Left to Next Automatic Measurement...

  • Page 8: Before Using Bd280 For The First Time

    Before using BD280 for the first time Activating the Device Pull out the protective strip from the battery compartment. 2) Set the month – Use M Button to set the Month. Press the START/STOP Button to confirm. 1) Set the year – Upon removing the protective strip or installing new batteries, the Year number flashes in the display.

  • Page 9: Confirm Cuff Size

    START/STOP Button pressed, A variety of different cuff sizes are available for the date and time are set, and the current time is use with the BD280 device. (S, XL sizes are also displayed. available, but not included.)

  • Page 10: Selecting The Operation Mode

    Prior to each measurement, use the Mode Switch “AMBULATORY” Mode on the side of the device to select the proper Select “AMBULATORY” mode for fully programmable measurement mode. The BD280 offers three 24-hour patient out-of-office blood pressure measurement modes: “AMBULATORY”, “HOME” or measurement.
  • Page 11 15, 20, 30, or 60 minutes, as programmed and asleep (night) hours can be programmed using by the physician. the provided BD280 software. Intervals for each measurement period can also be programmed independently. * The default measurement interval is 30 minutes.

  • Page 12: Home" Mode

    Selecting the operation mode (cont.) Two measurement periods “HOME” Mode Each measurement period can be programmed to Select “HOME” mode for patient home blood start at anytime, between 4AM and 10AM, and the pressure measurement in accordance with the asleep measurement period can be set to anytime guidelines of the European Society of Hypertension between 9PM and 2AM.
  • Page 13 No measurements on non-work days Two sets of measurements per day The patient should carry out readings on 7 ESH guidelines recommend one double measurement consecutive working days (or normal week days), No be taken in the morning between 06:00 and 09:00 and one double measurement taken in the evening readings should be taken on “non-working”...
  • Page 14 7 working days, patients return to the office with the 04:00 and 12:00 and evening measurements between BD280 device for an evaluation of their home blood 18:00 and 24:00. pressure measurement data. Outside...

  • Page 15: Casual" Mode

    “CASUAL” Mode 250 measurements safely stored In “CASUAL” mode, the device functions The BD280 device can store up to 250 single like a regular blood pressure monitor – single measurements in “CASUAL” mode. measurements are automatically stored and can be * When memory is full, each new measurement will reviewed by the physician at a later date.

  • Page 16: Recording The Taking Of Medication

    Recording the taking of medication 2) Release the Medication Button. The Pill icon and Medication record the recorded time will alternate on the display. The patient can record the time medication is taken by pressing the Medication Button. Press and hold 1) Press and hold the Medication Button for 2 seconds and the Pill icon will appear.
  • Page 17 50 records safely stored Delete stored medication records The BD280 device can store up to 50 medication To clear the memory of all medication records, press records. and hold the Medication Button for 7 seconds. The “CL” symbol will flash. Press M to delete the memory * When the memory is full, the device will display Full.

  • Page 18: Measurement Interval Programming

    Measurement interval programming Installing the software program Connecting the device to a computer 1) The BIOS Diagnostic BD280 Analyzer Software is 1) Connect the device to a computer via a USB cable. available from the BIOS Medical Website: https:// A successful connection is displayed by “PC” on biosmedical.com/pages/software-downloads...

  • Page 19: Programming The Interval Schedule

    Measurement interval programming 3) Once you have completed the settings, press Programming the interval schedule “Program to BP device” to program the schedule 1) Use the drop-down menu on the lower left of the into the device. screen to choose the begin and end time for each measurement period.

  • Page 20: Taking Blood Pressure Measurements

    Taking blood pressure measurements 2) Positioning the cuff and device – Fit the cuff closely, In “AMBULATORY” mode but not too tight. Make sure that the cuff is 2 - 3 Be sure the device is set to “AMBULATORY” Mode. cm (1 inch) above the elbow with the tube on the inside of the arm.
  • Page 21 Taking blood pressure measurements 3) Next measurement indicator – The device will 4) Measurement reminder – One minute before display the next measurement time, indicated by a the next scheduled measurement, the device will countdown in minutes on the display. partially inflate and immediately deflate the cuff to remind the patient of the next measurement.
  • Page 22 Taking blood pressure measurements (cont.) 5) Measurement reminder – Five seconds before 6) During measurements – the patient should be the next measurement, the device will emit a short reminded to remain still, refrain from talking, and to series of beeps to notify the patient of the coming breath normally during the measurement.

  • Page 23: Ambulatory" Mode

    Taking blood pressure measurements (cont.) 7) Repeat measurements in the case of an 8) Storing measurement data – The BD280 error – The device will automatically repeat the automatically stores each measurement result, measurement after a two minute countdown should along with the measurement date and time.

  • Page 24: Home" Mode

    Taking blood pressure measurements (cont.) 2) Applying the cuff – Patients should be trained In “HOME” mode on how to properly fit the cuff to their own arm. Be sure the device is set to “HOME” Mode. The cuff should fit closely around the arm, but not too tight, and be placed 2-3cm above the elbow with the tube on the inside of the arm.
  • Page 25 Taking blood pressure measurements (cont.) 3) Start the measurement – Press the START/STOP 5) Finishing the measurement – Once the two Button to start measurement. measurements are complete, measurement data is automatically stored for later reference by the physician. If an error displays after the /min measurements, the process should be repeated once again.

  • Page 26: Casual" Mode

    Taking blood pressure measurements (cont.) 2) Applying the cuff – Patients should be trained In “CASUAL” mode on how to properly fit the cuff to their own arm. Be sure the device is set to “CASUAL” Mode. The cuff should fit closely around the arm, but not too tight, and be placed 2 - 3cm above the elbow with the tube on the inside of the arm.
  • Page 27 If an error displays after the /min measurements, the process should be repeated once again. 6) Storing measurement data – The BD280 automatically stores each measurement result, along with the measurement date and time. A total of 250 measurements can be stored at once.

  • Page 28: Viewing, Deleting And Transferring Measurements

    Viewing, deleting and transferring measurements Viewing measurements In “AMBULATORY” mode 1) Use the Mode switch to first select the type of 1) When the M Button is pressed, it briefly displays measurements wished to be viewed. the total number of measurements stored, e.g. N=20.
  • Page 29 Viewing, deleting and transferring measurements (cont.) 2) Pressing the M Button again displays the average In “HOME” mode of all morning data. 1) When the M Button is pressed, it briefly displays the total number of measurements stored, e.g. N=20. 3) Pressing M Button once again shows the average of all evening data.
  • Page 30 Viewing, deleting and transferring measurements (cont.) 2) Pressing the M Button again displays the average In “CASUAL” mode of all morning data. 1) When the M Button is pressed, it briefly displays the total number of measurements stored, e.g. N=63, followed immediately by the average of all measurements stored in memory.

  • Page 31: Deleting Measurements

    3) Release the M Button and press it once more while Deleting measurements the delete symbol flashes. Data from “AMBULATORY”, “HOME” and “CASUAL” mode measurements can be deleted independent of each other. 1) Use the Mode switch to first select the type of measurements you wish to delete.

  • Page 32: Transferring Measurements

    Viewing, deleting and transferring measurements (cont.) Transferring measurements Software commands 1) Connect the device to a computer. A successful Click “Save Excel report” Store data connection is displayed by “PC” on the device. or “Save PDF report”, the file name is formed 2) Start the software program.

  • Page 33: Appendix

    “AAA” alkaline batteries are the is displayed. The voltage of the batteries is displayed main power source of BD280. on the PC screen. If the voltage is low, the buzzer of the device beeps. The battery icon and number...

  • Page 34: Safety, Care, Accuracy Test And Disposal

    Safety, care, accuracy test and disposal Observe the storage and operating conditions Safety and protection described in the “Technical specifications” section of This device should only be used for the purposes this manual. described in this booklet. The device is comprised of sensitive components and must be treated with caution.
  • Page 35 DO NOT iron the cuff cover. Accuracy test Do not iron the cuff! We recommend the BD280 device be tested for accuracy every 2 years or after mechanical impact (e.g. being dropped). Please contact BIOS Medical to Disposal arrange for an accuracy test.

  • Page 36: Error Messages

    Error messages If an error occurs during measurement, the Potential cause measurement is interrupted and an error message Error Description and remedy “Er” is displayed. The pulse signals on the cuff are too Signal too weak. Re-position “Er 1” weak the cuff and repeat the measurement.
  • Page 37 Potential cause Potential cause Error Description Error Description and remedy and remedy Adequate pressure The pressure in the cannot be cuff is too high (over generated in the 300 mmHg) OR the Pulse or cuff cuff. A leak may pulse is too high “HI”...

  • Page 38: Technical Specifications

    Technical Specifications • 10 to 40 ˚C (50 to 104 ˚F) / 15 - 90 % relative • Device corresponds to the Operating maximum humidity / 80-105kPa requirements of the standard conditions: for non-invasive blood pressure • -20 to +55 ˚C (-4 to +131 ˚F) / 15 - 90 % relative Storage monitor.
  • Page 39 Date: completed by the owner confirming date of purchase or purchase receipt. Telephone: Batteries, cuff and wearing parts are not Email: covered by this guarantee. Product: Ambulatory Blood Pressure Monitor Product Number: BD280 Serial Number: Date:...
  • Page 40 Follow Instructions for Use. This document provides important product operation and safety information. Please read this document thoroughly before using the device and keep for future reference.
