Summary of Contents for BIOS Diagnostics ULTRA BD350

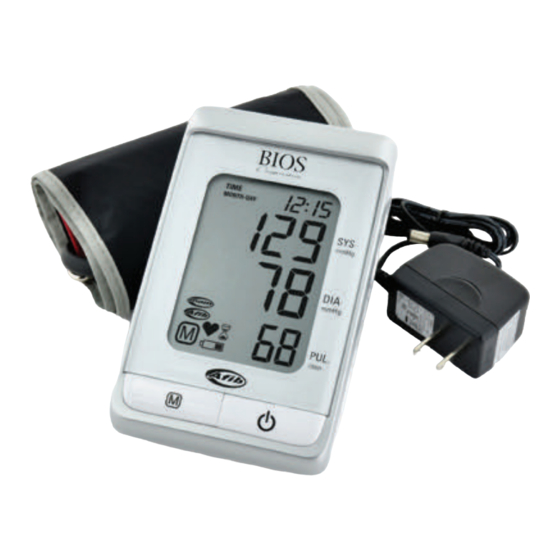

- Page 1 Go to biosmedical.com for a FREE Guide Book on Measuring Blood Pressure at Home! Blood Pressure Monitor ULTRA Instruction Manual With Atrial Model: BD350 Fibrillation Screening 03.20.2018...
- Page 2 Berg, CEO of Hypertension Canada Trusted by Canadians for 3 Generations At BIOS Diagnostics™, we are proud of our legacy in blood pressure monitoring in Canada. From the early 1930’s to 1987 we manufactured “Tycos” brand professional blood pressure equipment for doctors and hospitals in Canada.
-
Page 3: Table Of Contents
Ultra Blood Pressure Monitor with Atrial Fibrillation Screening Instruction Manual Table of Contents 1. Introduction 1.1 Features 1.2 Important Information 1.2A Safety Information 1.2B Care of the Device 1.2C Comparing Readings to other Blood Pressure Devices 1.2D Calibration 1.3 What Do Your Numbers Mean? 1.4 Normal Blood Pressure Values 1.5 Common Blood Pressure Questions and Answers 1.6 About MAM Technology... - Page 4 4. Software Functions 5. Error Messages / Malfunctions 6. Care and Maintenance 7. Lifetime Guarantee 8. Technical Specifications...
-
Page 5: Introduction
1. Introduction Thank you for purchasing the BIOS Diagnostics™ Ultra Blood Pressure Monitor with Atrial Fibrillation Screening. Designed for convenient and easy operation, this device provides a simple, yet accurate method to measure your blood pressure. Your blood pressure is an important parameter that can be used to monitor your health. This device enables you to monitor your blood pressure regularly, and maintain a record of your blood pressure measurements. -
Page 6: Important Information
1.2 Important Information Refer to the following sections to learn about important safety instructions and how to take care of the BIOS Diagnostics™ Ultra Blood Pressure Monitor with Atrial Fibrillation Screening. 1.2A Safety Information • Self-measurement means control, not diagnosis or treatment. Your values must always be discussed with your doctor or a physician who is familiar with your family history. -
Page 7: B Care Of The Device
• The pulse display is not suitable for checking the frequency of heart pacemakers. • If you have been diagnosed with a severe arrhythmia or irregular heartbeat, vascular constriction, liver disorders, or diabetes, have a cardiac pacemaker, or are pregnant, measurements made with this instrument should only be evaluated after consultation with your doctor. -
Page 8: D Calibration
The most accurate way to compare devices is to take two readings at the same time. However most people and doctor’s offices do not have the equipment necessary to measure blood pressure from two devices simultaneously. To take sequential measurements properly requires a pair of initial measurements to determine the subjects blood pressure level: first with the reference equipment, followed by 60 seconds, then with the monitor-under-test. -
Page 9: Normal Blood Pressure Values
1.4 Normal Blood Pressure Values Blood pressure is too high when measuring at home and you have rested, the diastolic pressure is above 85 mmHg or the systolic blood pressure is above 135 mmHg. If you obtain readings in this range, consult your doctor immediately. -
Page 10: Common Blood Pressure Questions And Answers
1.5 Common Blood Pressure Questions and Answers a) Why is my blood pressure reading always different? Your blood pressure changes constantly. It is quite normal for blood pressure to fluctuate significantly (50 mmHg to 60 mmHg) throughout the day. Blood pressure is normally lowest at night, but increases during waking hours when the stress and activities of everyday life are highest. -
Page 11: A Why Use Mam
1.6A Why Use MAM? • Human blood pressure is not stable 1.6B Key Advantages The technology provides reduction in: • Device scattering • Insufficient rest prior to measurement • Movement effects (i.e. coughing, talking, movement) • Cuff positioning influences 1.6C Medical Benefits •... -
Page 12: D Risk Factors You Can Control
1.7C AFIB detection provides a convenient way to screen for AFIB (only in MAM mode) Knowing your blood pressure and knowing whether or not you or your family members have AFIB can help reduce the risk of stroke. AFIB detection provides a convenient way to screen for AFIB while taking your blood pressure. -
Page 13: About The Lcd Screen
2.2 About the LCD Screen The LCD screen displays the systolic and diastolic blood pressure measurements along with your heart rate. It also displays previously recorded measurements and the date and time, when the appropriate button is pressed. Symbol Guide Time/Date Atrial Fribrillation Systolic Blood... -
Page 14: Using The Ac Adapter
2.4 Using the AC Adapter You may also operate this monitor using the included AC adapter (output 6V DC/600 mA with DIN plug). Use only the included AC adapter to avoid damaging the unit. 1. Ensure that the AC adapter and cable are not damaged. 2. -
Page 15: Measurement Mode Selection (Mam Or Single)
TIME 3. Lastly, the screen starts flashing the hour values. Press the button repeatedly to set the hour and then press the button to confirm the settings. Follow the same steps to set the minute values. 3.2 Measurement Mode Selection (MAM or Single) Clinical studies demonstrate taking multiple blood pressure readings and calculating an “average”... -
Page 16: A Before Measuring
3.3A Tips on Taking Accurate Measurements In morning before breakfast, 2 hours after dinner, before taking Empty bladder (if necessary). medication. Rest quietly for 5 minutes. Avoid coffee and smoking within the Remain calm and quiet while the hour, and no exercise 30 minutes measurement is in process. - Page 17 b) Place the cuff around your bare arm. Make sure the bottom edge of the cuff is about 1” (2-3 cm) above the elbow joint. Adjust the cuff so that the rubber tubing under the cuff lies over the brachial artery, which runs on the inside of the arm (see Fig.
-
Page 18: Measuring Your Blood Pressure
i) Consecutive measurements will cause blood accumulation in the lower arm which will affect the measuring results. To improve reading accuracy, raise the arm being measured, squeeze and relax your hand several times, then take another measurement. Another option is to take the cuff off and wait at least 5 minutes before repeating measurement. -
Page 19: Viewing Previously Recorded Values
Information for the doctor on frequent appearance of the atrial fibrillation indicator This instrument is an oscillometric blood pressure monitor that also analyses pulse frequency during measurement. The instrument is clinically tested. symbol is displayed after the measurement, if atrial fibrillation occurs during measurement. If the symbol appears more frequently (e.g. - Page 20 4. Software Functions This unit can be used in connection with your personal computer (PC) running the PC Link Blood Pressure Analyzer Software. The software will allow a capacity of monitoring 80 patients, each with 1000 data (Note: overuse will lower system efficiency). The memory data can be transferred to the PC by connecting the monitor via USB cable with your PC.
- Page 21 Due to unstable conditions during Avoid unnecessary movement and measurements, it is not possible to calculate talking. an average result. Low battery Replace batteries. Ensure that the cuff is worn correctly Cuff pressure is over 300 mmHg or pulse is and measure again.
- Page 22 7. Lifetime Warranty BIOS Diagnostics™ blood pressure monitors have a lifetime warranty to be free of manufacturing defects for the life of the original owner. This warranty does not include the inflation system including the cuff and inflation bladder.
- Page 23 Should repair be necessary, return the unit with all component pieces. Enclose proof of purchase and $5.00 for return shipping and insurance. Ship the unit prepaid and insured (at owners option) to: Repair Department 16975 Leslie Street Newmarket, ON L3Y 9A1 www.biosmedical.com Email: support@biosmedical.com Please include your name, return address, phone number, and email address.
- Page 24 Ensure that children do not use thes device unsupervised, some parts are small enough to be swallowed. Be aware of the risk of strangulation in case this device is supplied with cables or tubes. Follow Instructions for Use. This document provides important product operation and safety information.
