Tybox 5150
www.deltadore.com
Warning

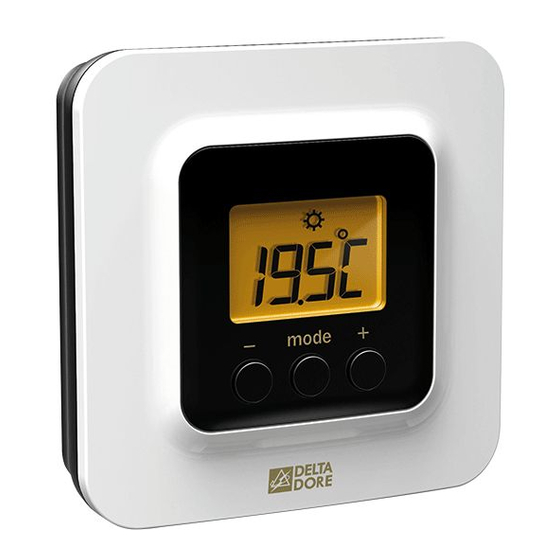

The Tybox 5150 pack consists of a Tybox 5101 transmitter and a RF6200 receiver.
There are two versions of the Tybox 5101 transmitter.
To find out the transmitter version, press the "mode" button for several seconds until the 1st
configuration menu appears: CF00 or CF01.
First
version
1
1
2
Second
version
1
> 5s
> 5s
2
3
mode
> 5s
2
1
2
mode
mode
mode
3
mode
mode
mode
> 5s
3
3
mode
mode
Installation and User
Guide
Access the instructions
mode
> 5s
> 5s
4
4
Access the instructions
mode
mode
> 5s
4
> 5
4
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tybox 5150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DELTA DORE Tybox 5150

Summary of Contents for DELTA DORE Tybox 5150

  • Page 1 Warning The Tybox 5150 pack consists of a Tybox 5101 transmitter and a RF6200 receiver. There are two versions of the Tybox 5101 transmitter. To find out the transmitter version, press the “mode” button for several seconds until the 1st configuration menu appears: CF00 or CF01.
  • Page 2 Tybox 5101 RF 6200 230 V~ +/-10%, 50 Hz 2 x 1,5V LR03 - AAA Alkaline Tybox 5150 1,8 W max 868,7 MHz -> 869.2 MHz (EN 300 220) - 300 m max. Maximum wireless power < 10 mW Category 2 receiver Output 5A max., 230V~ (Type 1.C)
  • Page 3 Association radio / Draadloze verbinding / Funkzuordnung / Associazione radio / Radio association / Asociación vía radio / Przypisanie radiowe >3s mode mode mode ..>3s Per uscire dalla modalità, premere simultaneamente e brevemente i tasti mode e +. ❶...

  • Page 4: Table Of Contents

    Installation and User Guide Tybox 5150 www.deltadore.com Contents Installation Installing the transmitter .................... 3 Location ...........................3 1.2 Wall mounting ........................3 1.3 Mounting on a base ......................3 Installing the receiver ....................4 2.1 Location ...........................4 2.2 Mounting / Connection ......................4 Pairing the receiver to the transmitter..............4 4.

  • Page 5: Installation

    INSTALLATION 1. Installing the transmitter 1.1 Location mode mode mode The thermostat can be mounted on the wall or mode ~1,50 m placed on a piece of furniture in a room whose temperature is representative of the location’s average temperature, with a recommended height of 1.5 m, and it should also be nowhere near any heat sources (fireworks, sunlight, etc.) or >...

  • Page 6: Installing The Receiver

    2. Installing the receiver >20 cm 2.1 Location 1,50 m The receiver must be installed at a minimum distance of 20 cm from any metal surface (e.g. the heat pump), and about 1.50 m from the ground to ensure there’s a good radio link with the transmitter.

  • Page 7: Configuring Your Device

    4. Configuring your device mode mode > 5s > 5s mode ❶ Press any button to activate the ❸ Press + or - to adjust the setting, ❹ Press mode for 5 seconds to exit screen. and on mode to move to the next the configuration menu or, after a menu.

  • Page 8: Pairing With The Tydom App

    5. Pairing with the Tydom app Launch the Tydom application from your smartphone or tablet, then: Settings -> My devices -> Add a device -> Heating -> Hydraulics -> TYBOX 5150 (RF6200)... and follow the instructions. For more information, refer to the “Operation with the Tydom application” section.

  • Page 9: Unpairing The Receiver With The Transmitter

    8. Unpairing the receiver with the transmitter If there’s a fault, you may need to unpair a product and/or re-associate a new one. Wireless resetting of the transmitter mode mode mode >3s >3s ❶On the Tybox, briefly press a ❷ The screen displays rF-- ❸...

  • Page 10: Use

    1. Description Temperature display Heat mode Select the mode Air conditioning mode Adjustment buttons Battery level indicator Request in progress mode 2. Consultation or modification of temperatures ❶ Press any button to activate the display screen. To switch from Heating ( ) to Cooling ( ), press mode twice.

  • Page 11: Troubleshooting

    (until the next time the system is in >5s standby), press the + and - buttons simultaneously for 5 seconds. To unlock them permanently, consult the CF02 configuration menu. mode END OF TYBOX 5150 WEB INSTRUCTIONS 2nd VERSION.
  • Page 12 2 www.deltadore.com 8 max. -10°C / +40°C Important product information (Ë Í) Raccordement / Connection / Anschluss / Collegamento TYBOX 5101 TYBOX 5100 TYBOX 5200 TYBOX 5150 Ê Ë mode RF 6000 RF 6050 RF 6200 230V~ mode...
  • Page 13 Indica che una deroga della temperatura TYBOX 5200 Befehl nicht gesendet werden konnte. di riferimento è in corso sull’emettitore Wiederholen Sie den Vorgang. TYBOX 5150 associato Indica puntualmente che si è verificato (es.: TYBOX 2020 WT). un conflitto di trasmissione radio e che 00 : Fonction thermostat / Thermostat function il comando non è...
