Tybox 5101
www.deltadore.com
Warning
Your Tybox 5101 is paired to a receiver. You must identify this receiver in order to consult the
corresponding instructions:
RF 6050+
RF 6000+
RF 6700 FP
RF 6000 (Tybox 5100)
RF 6050 (Tybox 5200)
RF 6200
Delta 8000 RF
Other receivers

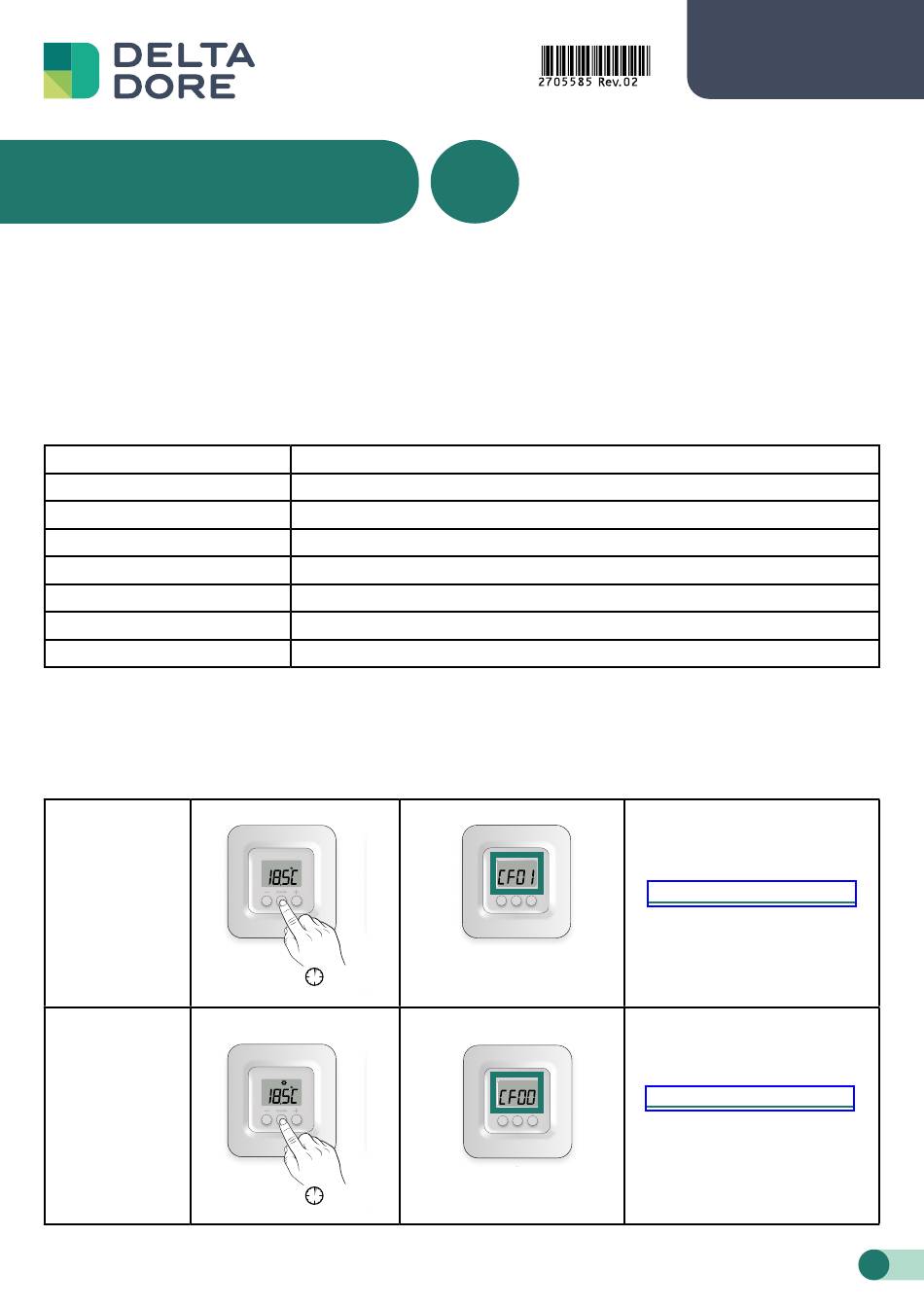

There are two versions of the Tybox 5101 transmitter.
To find out the transmitter version, press the "mode" button for several seconds until the 1st
configuration menu appears: CF00 or CF01.
Please wait up to 2 minutes to return to the initial display.
First
version
1
1
2
Second
version
1
Consult the Tybox 5300 web instructions
Consult the Tybox 2300 web instructions
Consult the Tybox 5701/5702 FP web instructions
Consult these instructions
Consult these instructions
Consult the Tybox 5150 web manual
Consult the Delta 8101 Pack web instructions
Consult these instructions
> 5s
> 5s
2
3
mode
> 5s
2
1
2
mode
mode
mode
3
mode
mode
mode
> 5s
3
3
mode
mode
Installation and User
Guide
Access the instructions
mode
> 5s
> 5s
4
4
Access the instructions
mode
mode
> 5s
4
> 5
4
1
