Frame
Location of type plate and
frame number
Front brake
Rear brake
Brake system

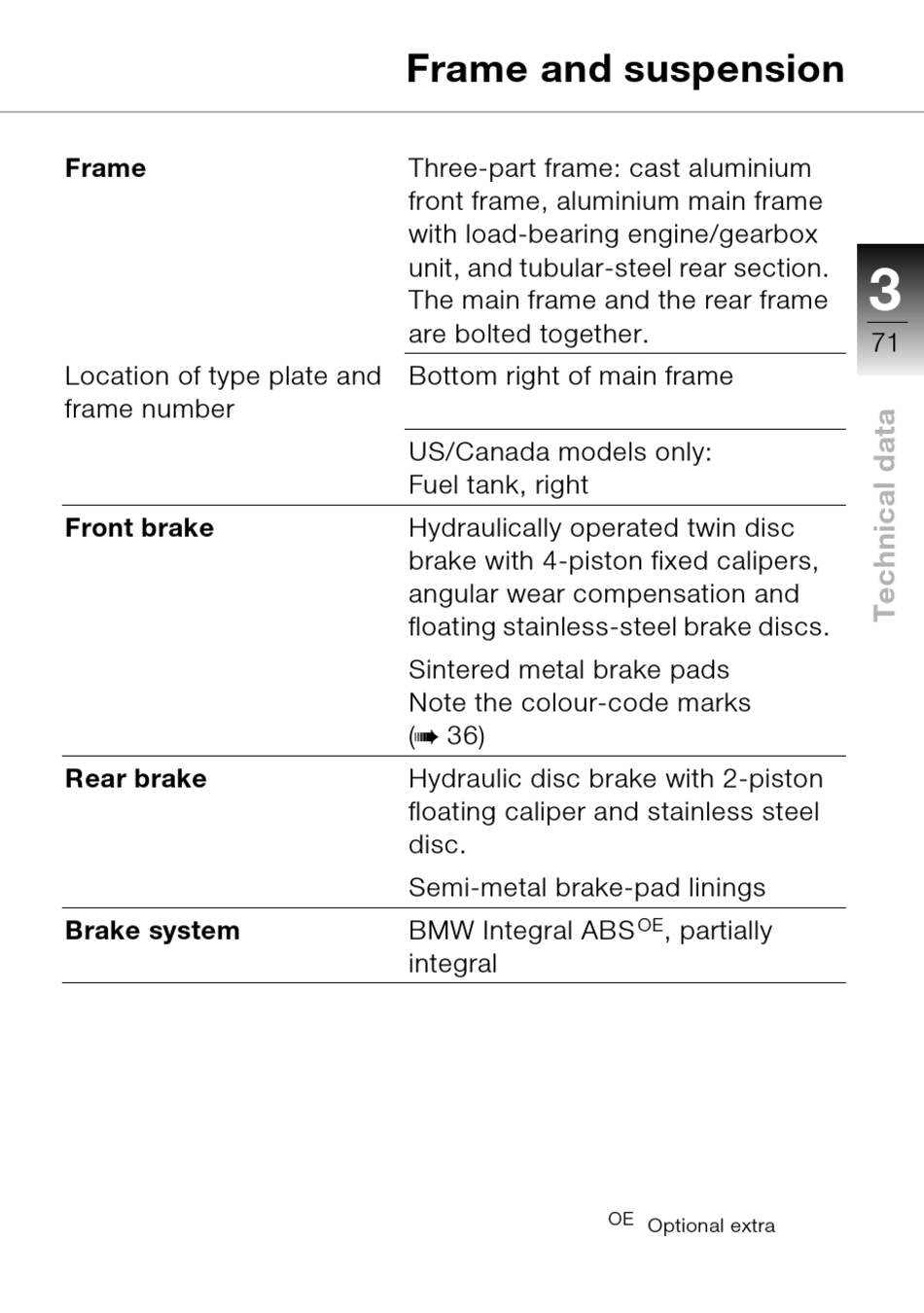

Frame and suspension

Three-part frame: cast aluminium
front frame, aluminium main frame
with load-bearing engine/gearbox
unit, and tubular-steel rear section.
The main frame and the rear frame
are bolted together.
Bottom right of main frame
US/Canada models only:
Fuel tank, right
Hydraulically operated twin disc
brake with 4-piston fixed calipers,
angular wear compensation and
floating stainless-steel brake discs.
Sintered metal brake pads
Note the colour-code marks
( 36)
b
Hydraulic disc brake with 2-piston
floating caliper and stainless steel
disc.
Semi-metal brake-pad linings
BMW Integral ABS
integral
OE
, partially
OE
Optional extra
3
71
