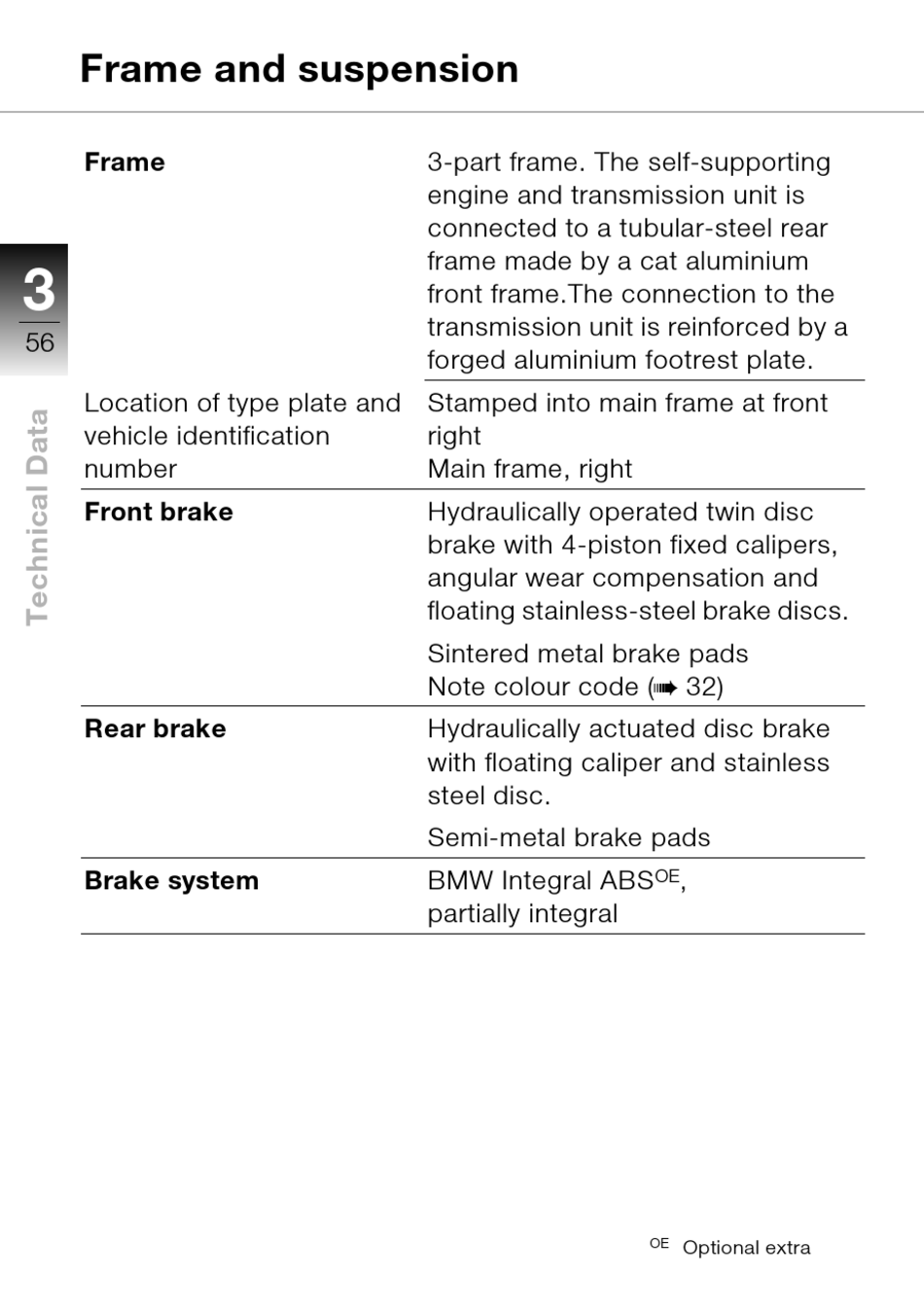

Frame and suspension

Frame
3
56
Location of type plate and
vehicle identification
number
Front brake
Rear brake
Brake system
3-part frame. The self-supporting
engine and transmission unit is
connected to a tubular-steel rear
frame made by a cat aluminium
front frame.The connection to the
transmission unit is reinforced by a
forged aluminium footrest plate.
Stamped into main frame at front
right
Main frame, right
Hydraulically operated twin disc
brake with 4-piston fixed calipers,
angular wear compensation and
floating stainless-steel brake discs.
Sintered metal brake pads
Note colour code (
Hydraulically actuated disc brake
with floating caliper and stainless
steel disc.
Semi-metal brake pads
BMW Integral ABS
partially integral
32)
b
OE
,
OE
Optional extra
