[ X DISASSEMBLY PROCEDURE ]

6. Bearing

M35, 50, 60, 71 models only.
1. Removing the bearing
(1) Remove the two fixing screws on the bearing
cover (M) to remove it. (Fig. 14)
(2) Remove the two bearing retainer screws to
remove the bearing. (Fig. 15)
HWE1909A
Exercise caution when removing heavy parts.

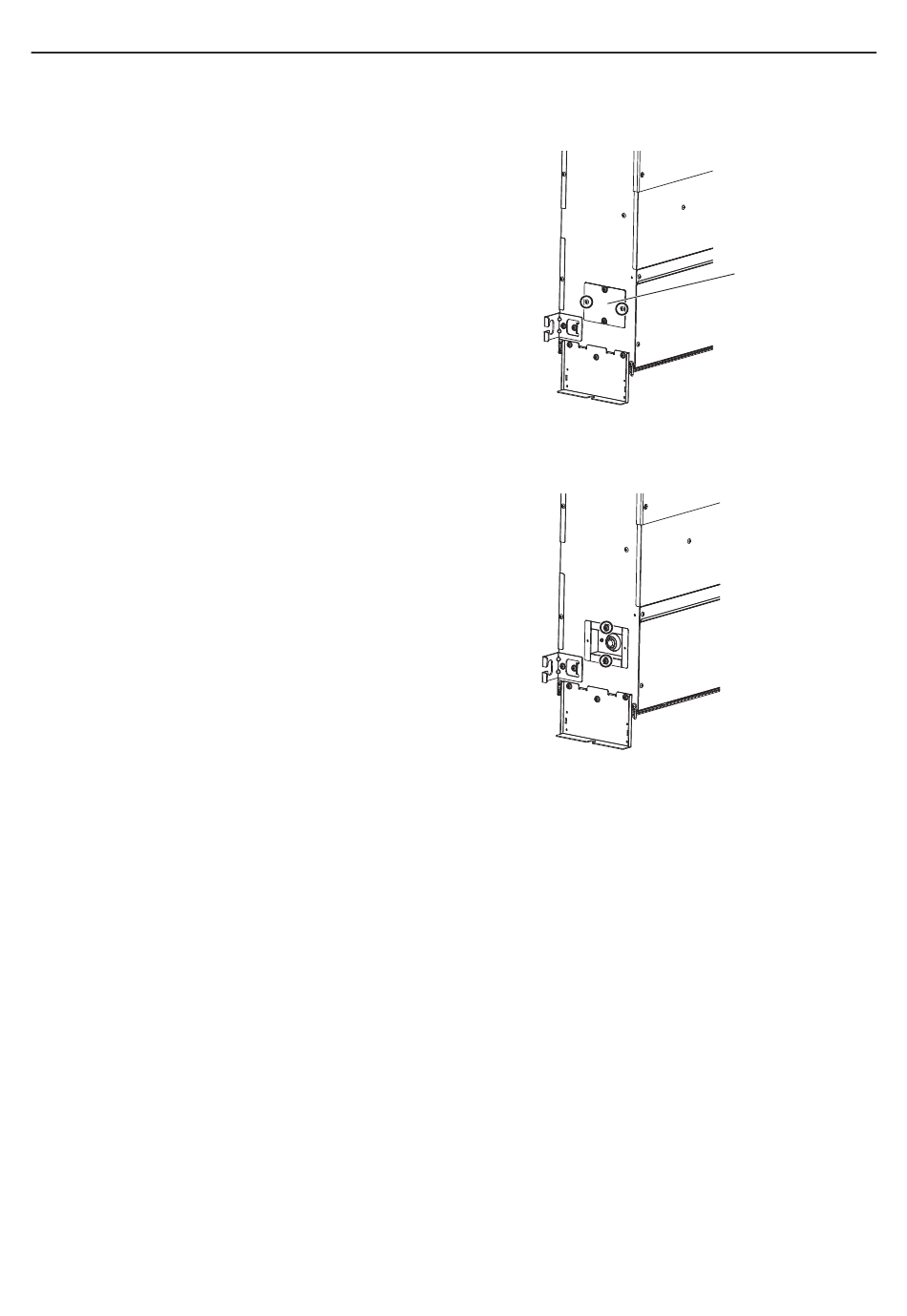

Fig. 14
Fig. 15
