- Page 1 USER GUIDE AND SPECIFICATIONS NI 9924 25-Pin DSUB to Screw-Terminal Connector Block Français Deutsch ni.com/manuals...

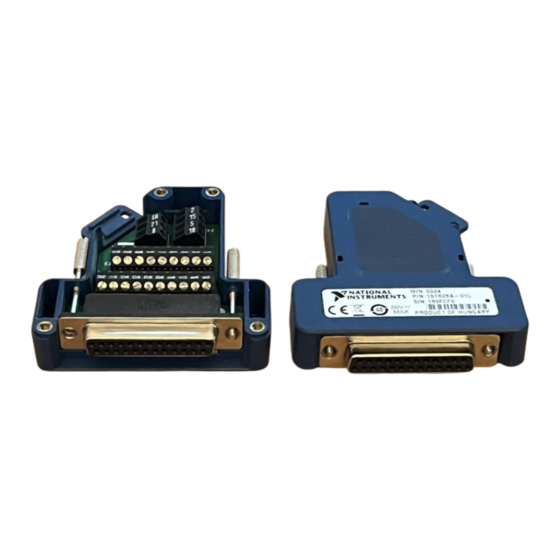

- Page 2 This user guide describes the features of the National Instruments 9924 DSUB to Screw-Terminal Connector Block. You can use the NI 9924 to create custom cables for C Series modules that use 25-pin DSUB connectors. Do not remove the NI 9924 circuit board from Caution the enclosure.
- Page 3 Connecting the NI 9924 The NI 9924 provides connections for C Series 25-pin DSUB modules. Figure 1. NI 9924 Terminal Assignments Pin 1 Pin 14 Pin 25 Pin 13 NI 9924 User Guide and Specifications | © National Instruments | 3...
- Page 4 5. Route the wire to the NI 9924 opening. 6. Remove slack in the NI 9924 wiring and secure the wires or cable by threading a zip tie through the two strain relief holes on the NI 9924 opening.
- Page 5 7. Reinstall the top cover on the NI 9924 and tighten the four captive screws. Figure 2. NI 9924 Parts Locator Diagram 1 Captive Screws 3 Terminals 5 Jackscrews 2 Top Cover 4 Strain Relief Holes NI 9924 User Guide and Specifications | © National Instruments | 5...
- Page 6 Installing the NI 9924 Connect the NI 9924 to the 25-pin DSUB connector on the module as shown in Figure 2. Tighten the two jackscrews on the NI 9924 to hold it securely in place. Do not overtighten the jackscrews.
- Page 7 (0.18 in.) of insulation stripped from the end Torque for screw terminals ....0.4 N · m max (3.4 lb · in. max) Weight..........65 g (2.29 oz) NI 9924 User Guide and Specifications | © National Instruments | 7...
- Page 8 LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National Instruments Corporation. Refer to the Trademark Information at ni.com/trademarks for other National Instruments trademarks.
