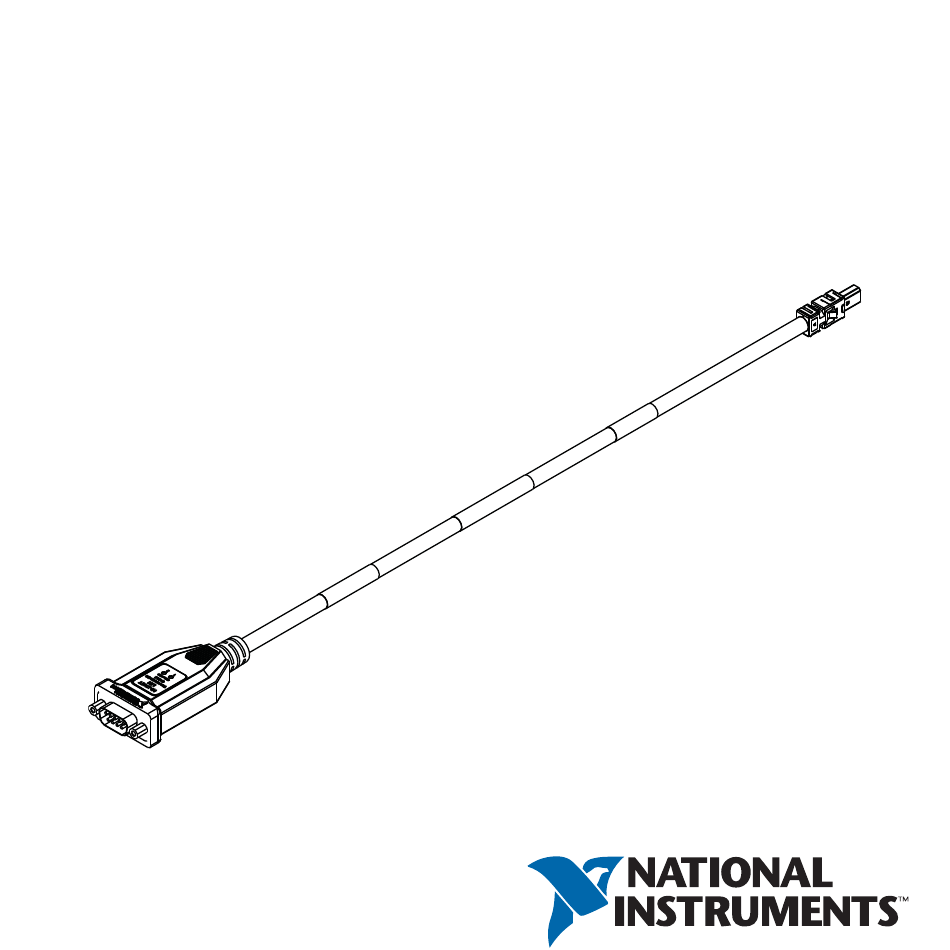

- Page 1 OPERATING INSTRUCTIONS NI-XNET LIN Transceiver Cable...
-
Page 2: Safety Guidelines
Safety Guidelines Operate the NI-XNET LIN Transceiver Cable only as described in these operating instructions. This icon denotes that the component may Hot Surface be hot. -
Page 3: Safety Guidelines For Hazardous Locations
Safety Guidelines for Hazardous Locations The NI-XNET LIN Transceiver Cable is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 and Ex nA IIC T4 hazardous locations; and nonhazardous locations only. - Page 4 This equipment has been evaluated as Ex nA IIC T4 equipment under DEMKO Certificate 12 ATEX Number (1202658X). Each transceiver cable is marked II 3G and is suitable for use in Zone 2 hazardous locations. 4 | ni.com | NI-XNET LIN Transceiver Cable Operating Instructions...
- Page 5 Refer to the user manual of the host this device directly connects to for specific information regarding thermal management. Not following mounting requirements may affect the system ambient temperature and/or the measurement accuracy of modules in the system. NI-XNET LIN Transceiver Cable Operating Instructions | © National Instruments | 5...
- Page 6 Wiring to the NI-XNET LIN Transceiver Cable The NI-XNET LIN Transceiver Cable is used with a compatible NI-XNET Transceiver Cable host port. Figure 1. NI-XNET LIN Transceiver Cable Connections...
- Page 7 Vsup pin from the LIN bus. The NI-XNET LIN Transceiver Cable pinout is listed in Table 1. Table 1. Pin Assignments for the NI-XNET LIN Transceiver Cable Connector Signal No Connection (NC) Vsup NI-XNET LIN Transceiver Cable Operating Instructions | © National Instruments | 7...
-
Page 8: Cable Specifications
The maximum allowable cable length is 40 m, per the LIN specification. Number of LIN Nodes The maximum number of devices on a LIN bus is 16, per the LIN specification. 8 | ni.com | NI-XNET LIN Transceiver Cable Operating Instructions... -
Page 9: Termination Resistors
The port has an NXP TJA1028 LIN transceiver that is fully compatible with the LIN 1.3/2.0/2.1/2.2 and SAE J2602 standards and supports baud rates up to 20 kbps. NI-XNET LIN Transceiver Cable Operating Instructions | © National Instruments | 9... - Page 10 Cable Host Inserting and Removing the NI-XNET LIN Transceiver Cable The NI-XNET LIN Transceiver Cable connects to a host device with an active latching connector. To connect the NI-XNET LIN Transceiver Cable to a host device, push the connector assembly into the host receptacle until the internal latch snaps into position.
- Page 11 LED 2 primarily indicates the activity information of the connected bus. Each LED can display two colors (red or green), which display in the following four patterns. NI-XNET LIN Transceiver Cable Operating Instructions | © National Instruments | 11...
- Page 12 Blinks green Blinks green NI-XNET catastrophic error Blinks red Blinks red No open session on hardware Open session on hardware, port is Solid green properly powered, and hardware is not communicating 12 | ni.com | NI-XNET LIN Transceiver Cable Operating Instructions...
-
Page 13: Specifications
The following specifications are typical for the range -40 to 70 °C unless otherwise noted. LIN Characteristics Transceiver........NXP TJA1028 Max baud rate ........20 kbps LIN bus lines voltage......-40 to +40 VDC NI-XNET LIN Transceiver Cable Operating Instructions | © National Instruments | 13... -
Page 14: Power Requirements
LIN bus (Vsup) ......... 320 mW max 180 mW typical Physical Characteristics To clean the transceiver cable, wipe it with a dry towel. Weight..........Approx. 65 g (2.3 oz) 14 | ni.com | NI-XNET LIN Transceiver Cable Operating Instructions... - Page 15 Cable to signals or use for measurements within Measurement Categories II, III, or IV. The maximum voltage that can be applied or output between any port and a COM terminal without creating a safety hazard. NI-XNET LIN Transceiver Cable Operating Instructions | © National Instruments | 15...
-
Page 16: Isolation Voltage
This product meets the requirements of the following standards of safety for electrical equipment for measurement, control, and laboratory use: • IEC 61010-1, EN 61010-1 • UL 61010-1, CSA 61010-1 16 | ni.com | NI-XNET LIN Transceiver Cable Operating Instructions... -
Page 17: Hazardous Locations
Canada (C-UL) ......... Class I, Division 2, Groups A, B, C, D, T4; Class I, Zone 2, Ex nA IIC T4 Europe (DEMKO) ......Ex nA IIC T4 Gc NI-XNET LIN Transceiver Cable Operating Instructions | © National Instruments | 17... - Page 18 Pollution Degree (IEC 60664) ..2 Similar to other standard PVC cables, this product’s cable becomes less ductile at low temperatures. Preroute and secure the cable while flexible to avoid premature failure. 18 | ni.com | NI-XNET LIN Transceiver Cable Operating Instructions...
-
Page 19: Shock And Vibration
(IEC 60068-2-6) ....5 g, 10 to 500 Hz 60 V CAT I, 1000 V Withstand up to 3000 m; 60 V CAT I, 860 V Withstand from 3001 to 5000 m. NI-XNET LIN Transceiver Cable Operating Instructions | © National Instruments | 19... -
Page 20: Electromagnetic Compatibility
For the standards applied to assess the EMC of Note Online Product Certification this product, refer to the section. For EMC compliance, operate this product Note according to the documentation. 20 | ni.com | NI-XNET LIN Transceiver Cable Operating Instructions... -
Page 21: Online Product Certification
NI is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial to the environment and to NI customers. NI-XNET LIN Transceiver Cable Operating Instructions | © National Instruments | 21... -
Page 22: Waste Electrical And Electronic Equipment (Weee)
National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste and Electronic Equipment, visit ni.com/environment/ weee National Instruments (RoHS) National Instruments RoHS (For information ni.com/environment/rohs_china about China RoHS compliance, go to ni.com/ environment/rohs_china 22 | ni.com | NI-XNET LIN Transceiver Cable Operating Instructions... -
Page 23: Worldwide Support And Services
You can obtain the DoC for your product by visiting . If your product supports calibration, ni.com/certification you can obtain the calibration certificate for your product ni.com/calibration NI-XNET LIN Transceiver Cable Operating Instructions | © National Instruments | 23... - Page 24 For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents . You can find information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product.
