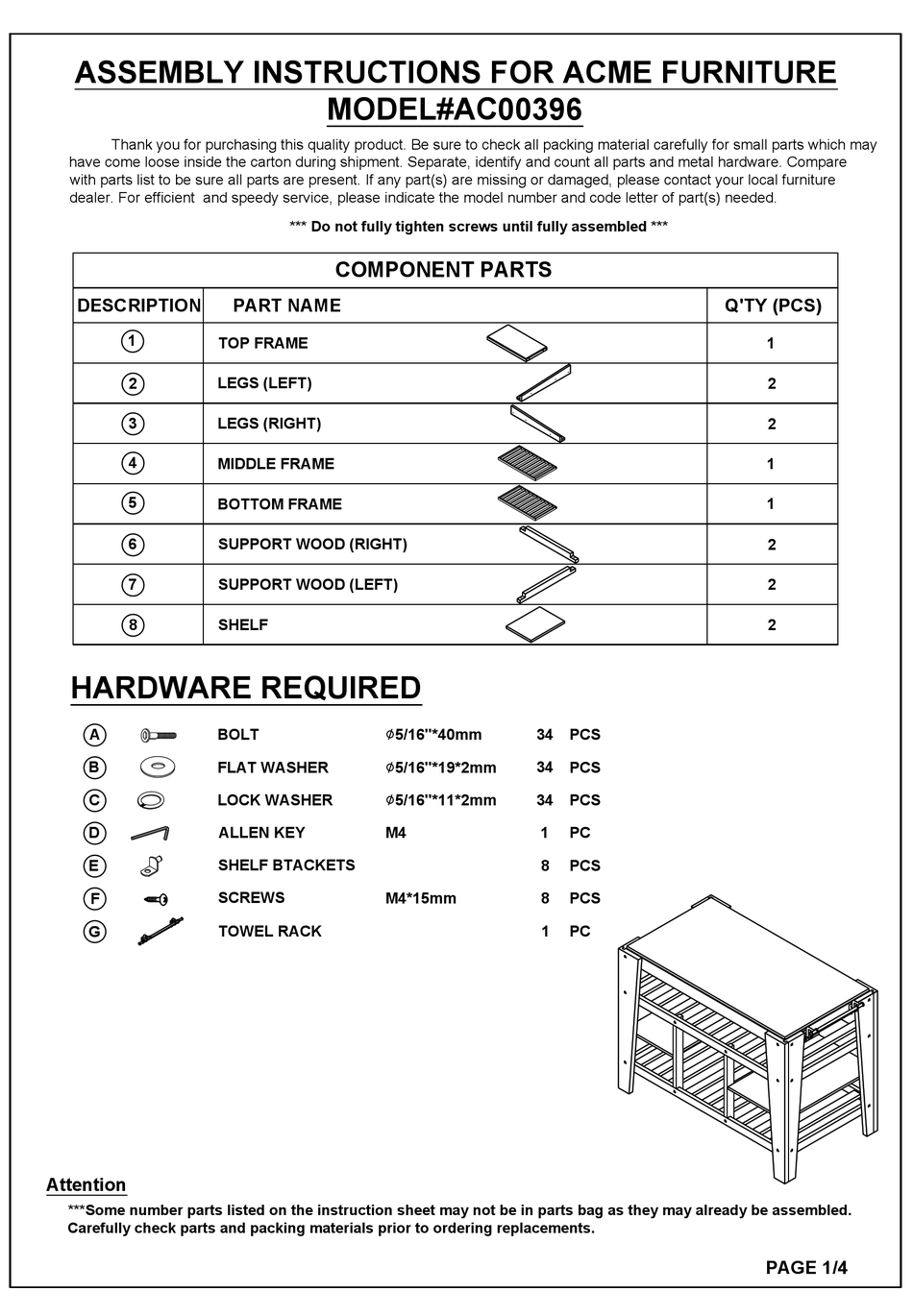

Acme Furniture AC00396 Assembly Instructions

ASSEMBLY INSTRUCTIONS FOR ACME FURNITURE
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may
have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware. Compare
with parts list to be sure all parts are present. If any part(s) are missing or damaged, please contact your local furniture
dealer. For efficient and speedy service, please indicate the model number and code letter of part(s) needed.
DESCRIPTION
1
TOP FRAME
LEGS (LEFT)
2
3 LEGS (RIGHT)
4
MIDDLE FRAME
5
BOTTOM FRAME
6 SUPPORT WOOD (RIGHT)
7 SUPPORT WOOD (LEFT)
8 SHELF
HARDWARE REQUIRED
A BOLT
B FLAT WASHER
C LOCK WASHER
D ALLEN KEY
E SHELF BTACKETS
SCREWS
F
G TOWEL RACK
Attention
***Some number parts listed on the instruction sheet may not be in parts bag as they may already be assembled.
Carefully check parts and packing materials prior to ordering replacements.
MODEL#AC00396
*** Do not fully tighten screws until fully assembled ***
COMPONENT PARTS
PART NAME
∅ 5/16"*40mm
5/16"*19*2mm
∅
5/16"*11*2mm
∅
M4
M4*15mm
34 PCS
34 PCS
34 PCS
1 PC
8 PCS
8
PCS
1 PC
Q'TY (PCS)
1
2
2
1
1
2
2
2
PAGE 1/4
