Sunricher SR-2421-SB Instructions

RF+Bluetooth to DALI+0/1-10V 2 in 1 Converter
Important: Read All Instructions Prior to Installation

Function introduction

SR-BUS to DALI+0/1-10V
110-240V
L

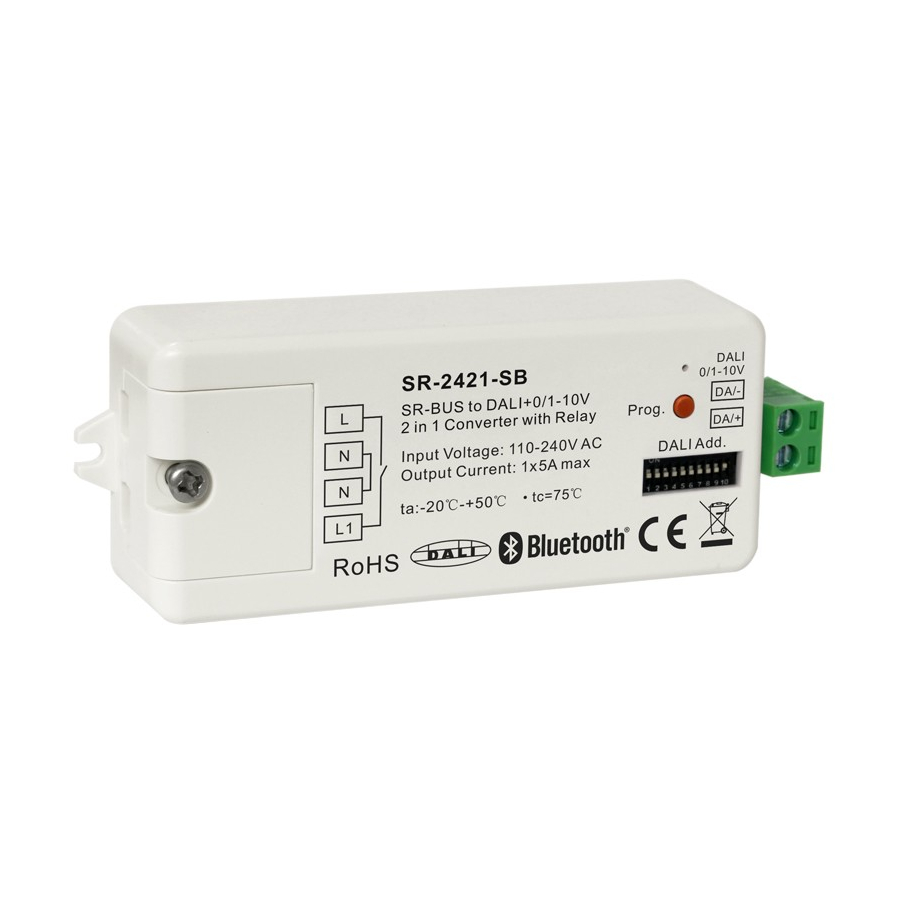

2 in 1 Converter with Relay
power input
Input Voltage: 110-240V AC
N
Output Current: 1x5A max
ta:-20℃-+50℃
N
Relay output,
max. 5A
L1
Learning key, for pairing with RF+Bluetooth remote
Dip switches to select DALI or 0/1-10V output, DALI DT6 or DT8 color type, DALI address
or group control mode, DALI address to be controlled, DALI group to be controlled

Product Data

Input Output, DALI
DALI current
DALI PS
Power Signal
consumption
current
Bluetooth+RF
110-240VAC Max. 50mA Max. 4mA
2.4GHz
• Bluetooth+RF to DALI+0/1-10V 2 in 1 converter, bluetooth mesh network
• Bluetooth+RF signal input, DALI signal output to DALI line or 0/1-10V signal output, 110-240VAC power input
• With max. 5A relay output and metering function
• Controlled through both RF remote and smart App, no gateway required
• Easy & quick pairing to the smart App by simply pushing the Prog. button
• Mesh network, much longer control distance, transmits received signal to neighbor devices
• Cloud control is available for remote access, works with Amazon Alexa and Google Home
• DALI signal or 1-10V signal output selectable by DIP switch
• Built-in DALI bus power supply, no extra DALI bus PS required
• With max. 50mA DALI bus power current output
• To supply control current to up to 25 DALI control gears
• DALI DT6 or DT8 device type selectable by DIP switch under DALI mode
• Color control according to DALI specifications of Device Type 8,
• Color type: Tc, XY coordinates, RGBW selectable by DIP switches
• DALI address control mode or group control mode selectable by DIP switch
• Enables to select the DALI address (00-63) to be controlled by DIP switches
LED indicator
Prog. DA/-
DA/+
0/1-10V output (+, -)
1 2 3 4 5 6 7 8 10 9
DALI Add.
Output,
Output, relay
Environment
0/1-10V
Switching
Operating Relative
Current
Current
voltage temperature humidity
Max. 20mA 110-240VAC Max. 5A -20℃-+50℃ 8% to 80%
70200022
• Enables to select the DALI group (0-15) to be controlled by DIP switches
• Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
• Enable to control all devices on DALI line via broadcast
• Waterproof grade: Ip20
