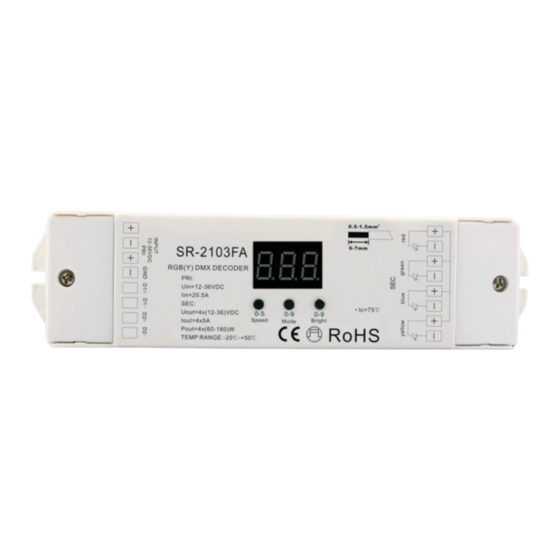

Sunricher SR-2103FA Quick Start Manual

DMX512 Decoder(with Stand-Alone)
SR-2103FA/SR-2103EA/SR-2103FA3/SR-2103FA7
Feature
Standard DMX512 compliant control interface, enable to set the DMX address freely.
And show address Via digital numueric display.
Stand-alone mode and DMX512 decoder mode can be freely switched by buttons.
Under situation of Stand-alone mode, it can be controlled by manual buttons with its built-in programs,
instead of DMX signal.
Three-channel/ four-channel output selectable.
Two types available(Constant Voltage, Constant Current),suitable for different LED lamps.
To work with power repeater to expand output power unlimitedly.
Compatible with SR-2811DMX,SR-2201DMX,SR-2812,SR-2816 and any good quality DMX Master
Parameter
Part No. INPUT
SR-2103FA 12-36VDC
SR-2103EA 12-36VDC
SR-2103FA3 12-36VDC
SR-2103FA7 12-36VDC
Product Size
178.9
170.4
CURRENT OUTPUT
constant voltage
4x(60-180)W
4x5A
constant voltage
4x8A 4x(96-288)W
constant current
4x0.35A 4x(4.2-12.6)W
constant current
4x0.7A 4x(8.4-25.2)W
SR-2103FA

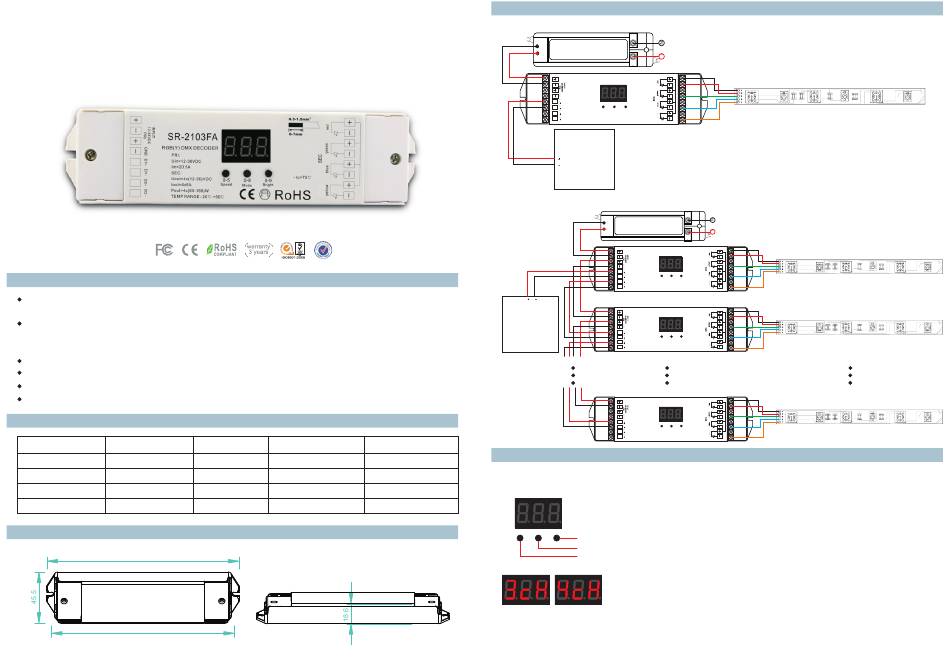

Wiring diagram
1)Connection Diagram for Single Unit
SR-2103FA
DMX512 Decoder
DMX Master
D1
D1
2)Connection Diagram for Multiple Units
D1 D1
DMX Master
REMARKS
Using instruction
Operation
Through buttons to set desired DMX512 address, 1 key is to set "hundreds" position, 2 is to set "ten" position, 3
is to set "a" bit.
To open the connection of DMX512 controller, then it can work correctly.
Choose Channel
Press button" 2 "and button" 3" at the same time for 2 seconds, cH digital display flashes, press button"1" to choose
3 means total 3 channels, 4 means total 4 channels. Press any button for 2 seconds to confirm 3 or 4 channels outputs.
The factory preset default is 4 channels outputs.
Power Supply
AC110-230V
12-36VDC
Power Supply
AC110-230V
12-36VDC
SR-2103FA
DMX512 Decoder
SR-2103FA
DMX512 Decoder
SR-2103FA
DMX512 Decoder
"3" button
"2" button
"1" button
3/4,
