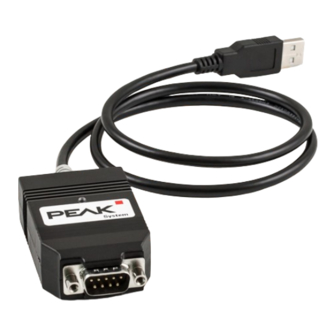

- Page 1 PCAN-USB FD User Manual User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
-
Page 2: Imprint
PCAN-USB FD IPEH-004022 Imprint PCAN is a registered trademark of PEAK-System Technik GmbH. CiA® is a registered community trade mark of CAN in Automation e.V. All other product names in this document may be the trademarks or registered trademarks of their respective companies. -
Page 3: Table Of Contents
5.3 Distinguishing several PCAN-USB FD Interfaces 6 CAN Monitor PCAN-View 6.1 Initialize CAN interface 6.2 Transmit CAN message 6.3 Additional Tabs 7 API PCAN-Basic 7.1 Features of PCAN-Basic 7.2 Principle Description of the API Contents PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... - Page 4 8 Technical Specifications Appendix A CE Certificate Appendix B UKCA Certificate Appendix C Dimension Drawings Appendix D Quick Reference Appendix E Linux Appendix F Disposal Contents PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
-
Page 5: Introduction
Device drivers and application information for Linux: www.peak-system.com/quick/DL-Driver-E At the end of this manual you can find a Quick Reference with brief information about the installation and operation of the PCAN-USB FD interface. 1 Introduction PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 6: Properties At A Glance
5-Volt supply to the CAN connection can be connected through a ■ solder jumper, e.g. for external bus converter Voltage supply via USB ■ Extended operating temperature range from -40 to +85 °C (-40 to +185 °F) ■ 1 Introduction PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 7: System Requirements
CAN monitor PCAN-View for Windows ■ Programming interface PCAN-Basic for developing applications with CAN ■ connection Programming interfaces for standardized protocols from the automotive sector ■ Manual in PDF format ■ 1 Introduction PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 8: Settings
Risk of short circuit! Soldering on the CAN interface may only be performed by qualified electrical engineering personnel. Attention! Electrostatic discharge (ESD) can damage or destroy components on the card. Take precautions to avoid ESD. 2 Settings PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... - Page 9 Therefore, turn off the computer before you connect and disconnect CAN cables or peripheral systems. Consider that some computers still supply the USB ports with power even when they are turned off (standby operation). 2 Settings PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
-
Page 10: Internal Termination
Risk of short circuit! Soldering on the CAN interface may only be performed by qualified electrical engineering personnel. Attention! Electrostatic discharge (ESD) can damage or destroy components on the card. Take precautions to avoid ESD. 2 Settings PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... - Page 11 LED must be in the corresponding recesses. 5. Press the lower half of the housing onto the upper half of the housing until the latches engage. 2 Settings PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
-
Page 12: Installation
Install the driver before you connect the CAN interface. 3.1 Install Device Driver Setup 1. Download the device driver setup from our website: www.peak-system.com/quick/DL-Driver-E 2. Unpack the file PEAK-System_Driver-Setup.zip 3. Double-click the file PeakOemDrv.exe The driver setup starts. 4. Follow the program instructions. -
Page 13: Connecting The Can Interface
2. Check the LED on the CAN interface. If the LED is green, then the driver was initialized successfully. 3.3 Check Operational Readiness 1. Open the Windows Start menu. 2. Type Peak Settings and press |Enter|. The window PEAK Settings appears. 3. Select CAN Hardware. The connected CAN interface is displayed. -
Page 14: Connecting The Can Bus
2.1 Voltage Supply of External Devices. Tip: Connect a CAN bus with a different transmission standard via a bus converter. PEAK-System offers different bus converter modules like the PCAN-TJA1054 for a Low-speed CAN bus according to ISO 11898-3. -
Page 15: Cabling
(ECU). The upper example shows a connection with a cable which is terminated with 120 Ω at both ends. At the lower example the connection is made with termination adapters. 4 Connecting the CAN Bus PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 16: Example Application Under Windows
4.3 Example Application under Windows As an example application for accessing the CAN interface, run the CAN monitor PCAN-View from the Windows Start menu. 4 Connecting the CAN Bus PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 17: Operation
You can operate several PCAN-USB FD interfaces on a single computer at the same time. The supplied program PCAN-View allows the assignment of device IDs in order to distinguish the CAN interfaces in a software environment. 5 Operation PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 18: Can Monitor Pcan-View
In the following the initialization of a CAN interface is described as an example. Detailed information about using PCAN-View can be found in the program window under the menu item Help. 6 CAN Monitor PCAN-View PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 19: Initialize Can Interface
Depending on the CAN interface the Connect dialog is displayed with or without settings for CAN FD. CAN FD CAN interface List entry in Available Hardware USB Interface, 1-channel see example above USB Interface, 2-channel PCIe Interface, 2-channel 6 CAN Monitor PCAN-View PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... - Page 20 4. Confirm the entries with OK. The main window appears and displays the Receive / Transmit tab. 5. For initializing another channel or CAN interface, open another instance of PCAN-View. 6 CAN Monitor PCAN-View PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
-
Page 21: Transmit Can Message
4. To send the message manually, select the menu command Transmit > Send or press the |space| bar. The manual transmission process is performed additionally for periodically transmitted CAN messages. 6 CAN Monitor PCAN-View PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 22: Additional Tabs
6.3.1 Trace Tab The tracer (data logger) records the communication of the CAN bus in linear or ring buffer mode. The trace data can be saved to a file. 6 CAN Monitor PCAN-View PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... - Page 23 Depending on the CAN interface, a hardware ID can be determined to distinguish several interfaces of the same type. For interfaces with CAN FD a transmission according to "ISO" or "Non-ISO" can be set as default of the hardware. 6 CAN Monitor PCAN-View PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
- Page 24 6.3.3 Bus Load Tab The Bus Load tab displays the current bus load, its time history and statistical information of the connected CAN channel. 6 CAN Monitor PCAN-View PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
- Page 25 You can destroy CAN frames with the error generator by one of two methods: once after activation ■ repeatedly at specific intervals related to a CAN ID ■ 6 CAN Monitor PCAN-View PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
- Page 26 4. Determine the Number of Frames to destroy. 5. Confirm the entries with Apply to activate the error generator. 6. Stop destroying further CAN frames with Disable. 6 CAN Monitor PCAN-View PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
-
Page 27: Api Pcan-Basic
The programming interface (API) PCAN-Basic provides basic functions for the connection of own programs to the CAN and CAN FD Interfaces of PEAK-System. PCAN-Basic is the interface between the program and the device driver. In Windows operating systems this is a DLL (Dynamic Link Library) and in Linux operating systems an SO (Dynamic Shared Object). -
Page 28: Features Of Pcan-Basic
Use of a single DLL for all supported hardware types ■ Use of up to 16 channels for each hardware type (depending on the PEAK CAN ■ interface used) Simple switching between channels of a PEAK CAN interface ■... -
Page 29: Principle Description Of The Api
To end the communication the function CAN_Uninitialize is called in order to release the reserved resources for the CAN channel, among others. In addition the CAN channel is marked as "Free" and is available to other applications. 7 API PCAN-Basic PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 30: Technical Specifications
Power supply Supply voltage +5 V DC (via USB port) Power consumption max. 170 mA Measures Size (w/o cable) 75 x 43 x 22 mm Length (connection cable) approx. 0.75 m Weight (with cable) 68 g 8 Technical Specifications PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... - Page 31 15 to 90 %, not condensing Ingress protection (IEC 60529) IP20 Conformity RoHS EU Directive 2011/65/EU (RoHS 2) + 2015/863/EU DIN EN IEC 63000:2019-05 EU Directive 2014/30/EU DIN EN 55032:2022-08 DIN EN 55035:2018-04 8 Technical Specifications PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
-
Page 32: Appendix Ace Certificate
German version of EN 55032:2015 + AC:2016 + A11:2020 + A1:2020 DIN EN 55035:2018-04 Electromagnetic compatibility of multimedia equipment - Immunity requirements (CISPR 35:2016, modified); German version of EN 55035:2017 Darmstadt, 25 August 2023 Uwe Wilhelm, Managing Director Appendix A CE Certificate PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 33: Appendix B Ukca Certificate
German version of EN 55032:2015 + AC:2016 + A11:2020 + A1:2020 DIN EN 55035:2018-04 Electromagnetic compatibility of multimedia equipment - Immunity requirements (CISPR 35:2016, modified); German version of EN 55035:2017 Darmstadt, 25 August 2023 Uwe Wilhelm, Managing Director Appendix B UKCA Certificate PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 34: Appendix C Dimension Drawings
Appendix C Dimension Drawings PCAN-USB FD Appendix C Dimension Drawings PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH... -
Page 35: Appendix D Quick Reference
USB hub. The new hardware is recognized by Windows and the driver is initialized. The LED on the interface then lights up green. Check the operational readiness. Open the Windows Start menu. Type Peak Settings and press |Enter|. The window PEAK Settings appears. The connected USB interface is displayed under CAN Hardware. - Page 36 High-speed CAN connector (D-Sub, 9 pins) Assignment D-Sub plug CAN_V+ (optional) CAN_Low CAN_GND Not connected Not connected CAN_GND CAN_High Not connected Not connected Appendix D Quick Reference PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
-
Page 37: Appendix E Linux
Appendix E Linux Depending on the Kernel version, device drivers for the CAN interfaces from PEAK- System are already included in the operating system. The PCAN interfaces are handled as network devices (SocketCAN, netdev). You can find the documentation for SocketCAN under: https://www.kernel.org/doc/Documentation/networking/can.txt... -
Page 38: Appendix F Disposal
Appendix F Disposal The product must not be disposed of in household waste. Dispose of the product properly in accordance with local regulations. Appendix F Disposal PCAN-USB FD User Manual 2.1.0 © 2023 PEAK-System Technik GmbH...
