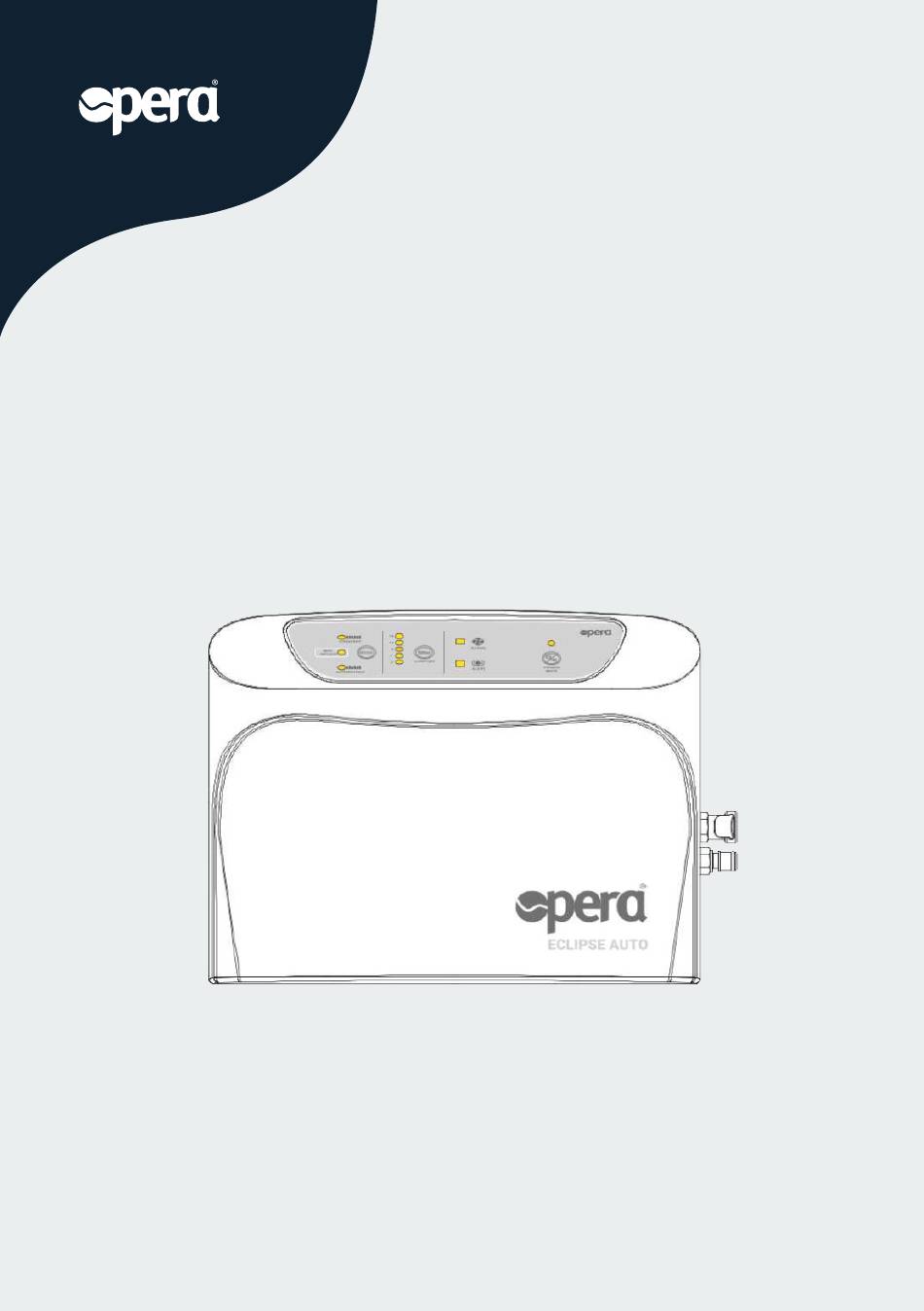

- Page 1 Enhancing Lives, Delivering Comfort O P E R A ® E C L I P S E M A T T R E S S S Y S T E M Instructions and Technical Specifications V I S I T O P E R A B E D S . C O M C A L L 0 3 3 3 2 2 2 8 5 8 4...
-
Page 2: Table Of Contents
Program Settings Patient Transfer and Transport Emergency CPR Deflation Cleaning Instruction Routine Maintenance and Storage Troubleshooting Return for Service Warranty Product Specifications Declaration of Conformity 1 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6... - Page 3 Use of genuine components is essential for optimal performance. If you do not fully understand all the instructions, safety precautions, and warnings, do not use this device. If you have questions, please contact Opera on 0333 222 8584. operabeds.com | 0333 222 8584 | 2...
-
Page 4: Explanation Of Symbols
This product must be disposed of in a separate refuse collection in the European Union. Do not dispose of as normal domestic waste. Read instructions. Manufacturer. Date of Manufacture. 3 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6... -
Page 5: Safety Precautions
2. Safety Precautions 2.1 Proper Operation To ensure proper operation, please inspect and verify that all parts are set up properly and are anchored securely to the bed system. Verify that the mattress replacement system does not interfere with the bed frame function. Do not place anything on top of the power unit. -
Page 6: Warnings
If the equipment needs maintenance, contact Opera on 0333 222 8584 as soon as possible. For equipment that is no longer functional, make sure to follow national, state, and/or facility requirements for disposal of the unit. 5 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6... -
Page 7: System Package
3.7 Environmental Operating Conditions Operating conditions: Temperature: 5°C - 40°C Humidity: 15% - 90% Atmospheric Pressure: 700hPa - 1060hPa 3.8 Sharp Protrusions Ensure that there are no protruding objects, sharp points, or bed springs under the mattress as these could puncture the air cells. 3.9 Disposal of Waste This device must not be disposed of as normal household waste after the end of its service life. -

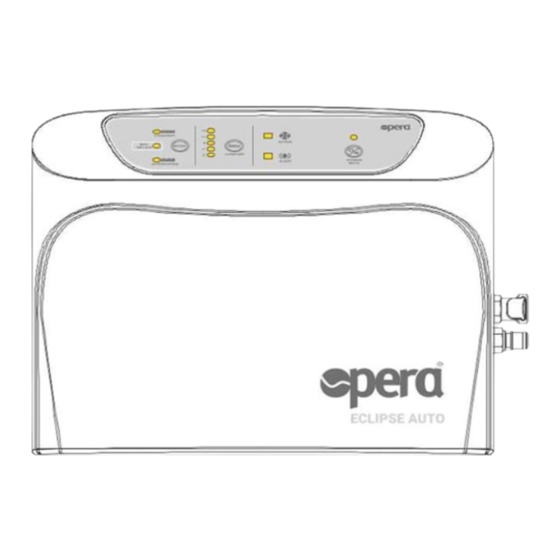

Page 8: Power Unit Features
The audible alarm will sound for 15 seconds at each cycle and the indicator will stay on until the problem has been solved. 7 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6... - Page 9 d. Comfort Adjustment Simply press the button to adjust the patient’s comfort from -2 to +2. Please adjust the comfort setting if the mattress is too soft or firm to suit each patient. Caregivers should always perform a hand check by placing their hands underneath the patient’s pelvis area to check if there is sufficient air support to ensure the patient is not bottoming out.
-
Page 10: Mattress And Power Unit Installations
6.3 Secure Power Unit Secure the power unit on to the foot board using hanging hooks. 9 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6... - Page 11 6.4 Connect Hose Couplers Firmly connect the air hose couplers to the couplers on the power unit. 6.5 Check CPR Pull Cord Unzip mattress cover and inspect CPR latch is fully inserted into the socket. It should arrive fully inserted when first purchased, but it is worthwhile checking, especially when re-installing the mattress.
-
Page 12: Program Settings
Tucking the bed sheet in too tightly may reduce the effectiveness of the system. 11 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6... -
Page 13: Patient Transfer And Transport
8. Patient Transfer and Transport 8.1 Transfer It is recommended to have the mattress system fully inflated during the transfer process. To do this increase the comfort setting to +2. Make sure the bed is secured before proceeding. 8.2 Transport In the event of a patient transport, two options are available. -
Page 14: Cleaning Instruction
Use the straps to secure it and store in clean plastic or other storage bag. Store in a cool, dark place. 13 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6... -
Page 15: Troubleshooting
Make sure there is no power after power is restored to the failure. facility or home. Power unit does not respond Please contact Opera on 0333 to possible solutions. 222 8584 for assistance. Low pressure alert does not go out in Please contact Opera on 0333 Possible control failure. -
Page 16: Return For Service
If the damage is a result from improper operation, a reasonable service fee and part cost will be charged. 15 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6... -
Page 17: Product Specifications
15. Product Specifications System Name Eclipse Auto Air Mattress System Power Unit (Air Pump) Model SR366 2000 x 900 x 200mm (8” depth) Mattress Dimension 2000 x 1070 x 200mm (8”... - Page 18 Humidity: 0% - 90% NiMH Battery 3.6Vdc 600mAh Safety: IEC/EN 60601-1_v3.1 IEC/EN Test Standards EMC: IEC/EN 60601-1-2_v4 Minimum Weight Capacity 30 kg Maximum Weight Capacity 200 kg 17 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6...
-
Page 19: Declaration Of Conformity
16. Declaration of Conformity operabeds.com | 0333 222 8584 | 18... - Page 20 19 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6...
- Page 21 operabeds.com | 0333 222 8584 | 20...
- Page 22 Notes 21 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6...
- Page 23 Notes operabeds.com | 0333 222 8584 | 22...
- Page 24 Azure House, Connaught Road, Kingswood, Hull, HU7 3AP 0333 222 8584 | support@operabeds.com | operabeds.com Version 6 | Published in August 2022 23 | Opera Beds | Opera Eclipse Mattress System Instructions and Technical Specifications | Version 6...
