Summary of Contents for Opera FLO

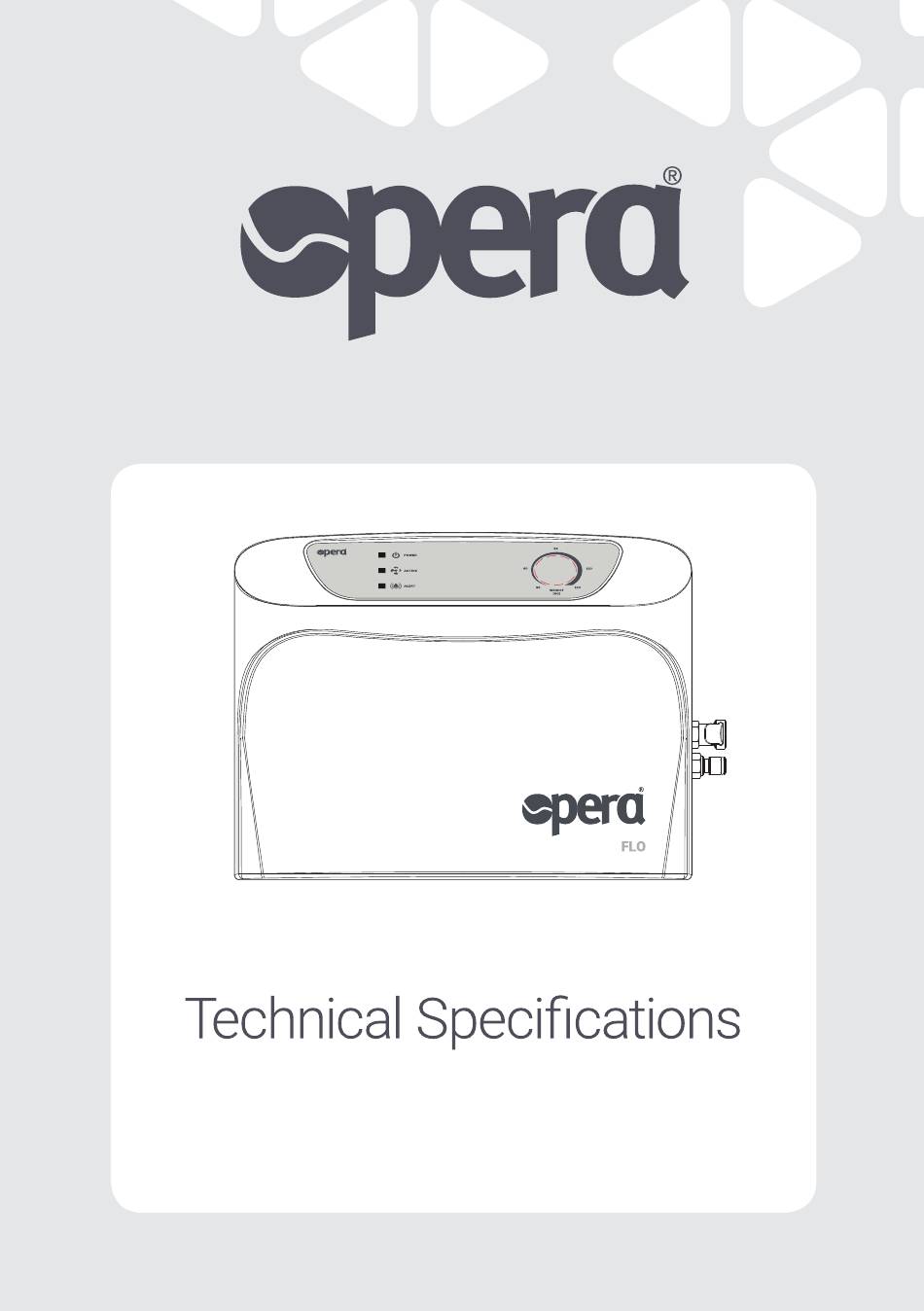

- Page 1 Instructions and for Opera Flo Air Mattress System ® Opera Care, Azure House, Connaught Road, Hull, HU7 3AP 0333 222 8584 | support@opera-care.co.uk | opera-care.co.uk...
-
Page 2: Table Of Contents
Use of genuine components is essential for optimal performance. If you do not fully understand all the instructions, safety precautions, and warnings, do not use this device. In case you have questions, please contact Opera Care on 0333 222 8584... -
Page 3: Symbols And Indications
1. Explanations of Symbols Conformity mark in accordance with the European Medical Device Directive_93/42/EEC amended by 2007/47/EC Protected against ingress of solid foreign objects ≥12.5mm diameter. IP21 Protected against vertically falling water drops. Symbol for Type BF Applied Part_Mattress according to IEC/EN 60601-1 Double Insulated (Class II) equipment Read instructions for use Caution... -
Page 4: Safety Precautions
Failure to do so could result in serious patient injury or death. If applicable, adhere to facility or local guidelines regarding entrapment regulations. DO NOT Disassemble contact Opera Care on 0333 222 8584... -
Page 5: System Package
AP/APG Protection This product is NOT AP/APG protected. Periodic Repositioning It is recommended that the patient be repositioned periodically while using this mattress. t n i If the equipment needs maintenance, contact Oper Care on 0333 222 8584 soon as possible. For equipment that is no longer functional, make sure to follow national, state, and/or facility requirements for disposal of the unit. -
Page 6: Features
5. Power Unit Features POWER ACTIVE ALERT WEIGHT (KG) 1. Power LED The green power LED will light when the main power rocker switch on the right side panel is turned on. 2. Pressure monitoring LED Power unit features an integrated pressure sensor which monitors the mattress’... - Page 7 5. Rocker Switch Power unit’s main power switch. 6. Couplers Quick release female couplers are used to secure mattress air hoses to power unit. 7. Power Receptacle Insert power cord set firmly into receptacle. 8. Hanging Hooks Hanging hooks are designed to hang the power unit on almost any foot board.
-
Page 8: Mattress And Power Unit Installations
6. Mattress and Power Unit Installations Remove Existing Mattress Remove existing mattress from bed frame. Secure Mattress Replacement Place mattress replacement on the bed frame with the foot symbol at foot end. Secure the mattress at each side using anchor straps. Ensure that the anchor straps do not interfere with any moving parts of the bed frame before proceeding to the next step. -
Page 9: Program Settings
7. Program Settings Adjusting Firmness Place the patient in the center of the mattress. Adjust the mattress’ internal pressure according to the patient weight by using the lockable patient weight knob on the decrease the mattress’ internal pressure one increment at a time and wait for the system to stabilize before making another change. -
Page 10: Cleaning Instructions
11. Routine Maintenance and Storage needed, contact Opera Care on 0333 222 8584. Only disinfected and dry systems should be stored. Disconnect the air hoses from the power unit. Roll up the mattress starting from the head end and working down toward the foot end. -
Page 11: Troubleshooting
Turn on and operate the unit after failure. power is restored to the facility or home. Power unit does not respond Please contact Opera Care on 0333 222 8584 for assistance. to possible solutions. Power unit Check CPR Pull Cord... -
Page 12: Returns For Service
Opera Care on 0333 222 8584 within three days of purchase. The warranty period for the products are according to the regulations in your country, the minimum period is 2 year from date of purchase for the power unit and 2 year for the mattress and the coverlet. - Page 13 System Name FLO Air Mattress System Power Unit (Air Pump) Model SR365 Mattress Dimension 2000x900x180mm(7"depth) 2000x1050x180mm(7"depth) Number of Air Cells 20 Cells Power Control Unit Dimension 295x225x120mm Integrated Foam 50mm (2”) Material Power Unit-Plastic Case_UL 94V-0 Mattress Cell – 100 % nylon with TPU lamination Coverlet –...
-
Page 14: Emc Declaration
Company Name: Opera Care Company Address: Azure House, Connaught Road, HULL, HU7 3AP, UK Trade Name: OPERA SR365 (Opera Flo), SR366 (Opera Flo Auto), Model No.: SR366 (Opera ECLIPSE Auto), SR366 (Opera IMPULSE Auto), SR366 (Opera Flo Digital) Report Number:... - Page 15 Declaration – electromagnetic emissions and immunity – for EQUIPMENT and SYSTEMS that are use in the professional healthcare facility environment or in the home healthcare environment The Air Pump declaration – electromagnetic immunity The Air Pump system is intended for use in the electromagnetic environment specified below. The customer or the user of the Air Pump system should assure that it is used in such an environment.
- Page 16 Opera Care, Azure House, Connaught Road, Hull, HU7 3AP 0333 222 8584 | support@opera-care.co.uk | opera-care.co.uk U-2S2203-30631-G V1.3...
