Summary of Contents for Opera Relieve Overlay

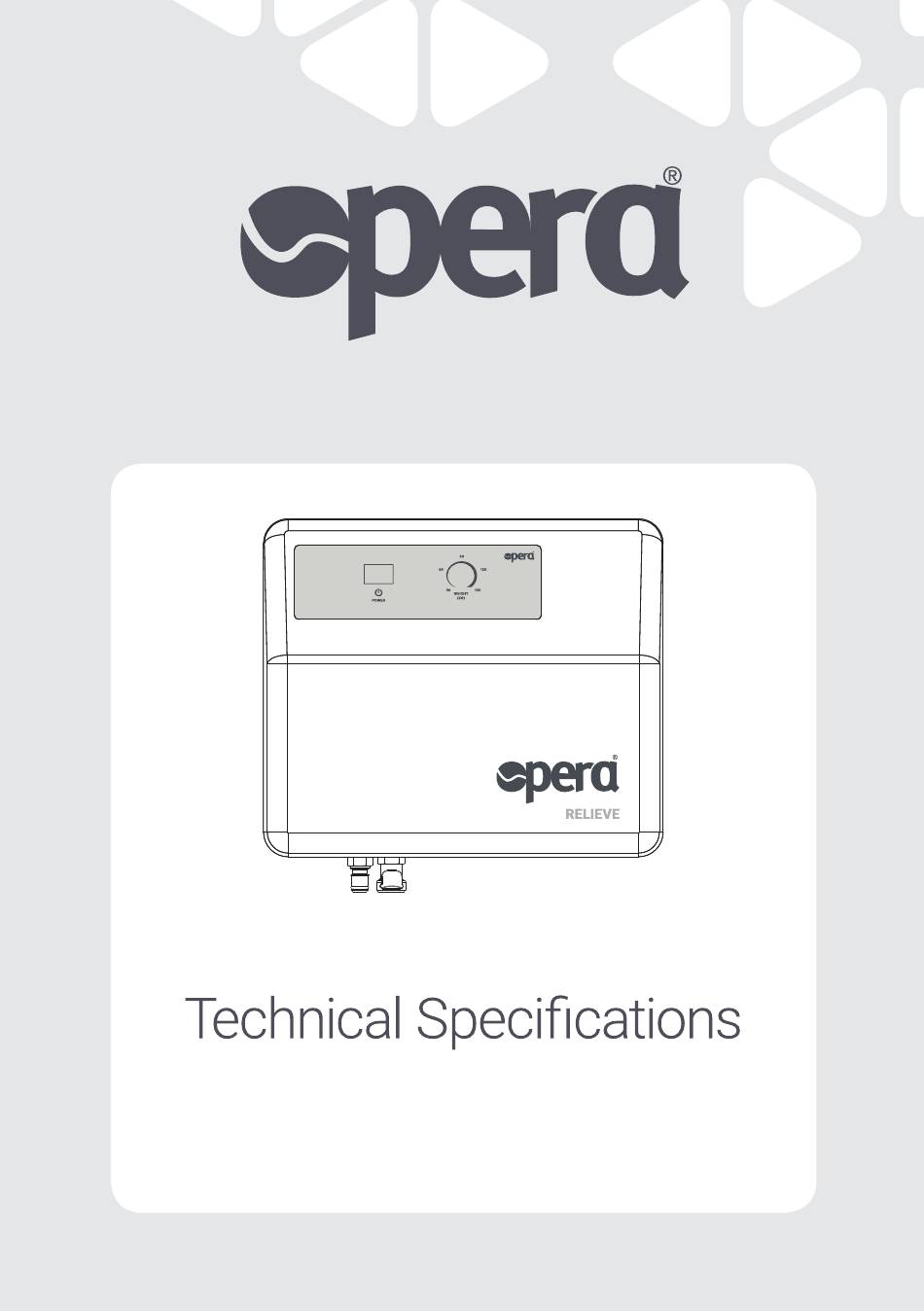

- Page 1 Instructions and for Opera Relieve Overlay Mattress System ® Opera Care, Azure House, Connaught Road, Hull, HU7 3AP 0333 222 8584 | support@opera-care.co.uk | opera-care.co.uk...
-
Page 2: Table Of Contents
Use of genuine components is essential for optimal performance. If you do not fully understand all the instructions, safety precautions, and warnings, do not use this device. In case you have questions, please contact Opera Care on 0333 222 8584 . -
Page 3: Symbols And Indications
1. Explanations of Symbols Conformity mark in accordance with the European Medical Device Directive_93/42/EEC amended by 2007/47/EC Do not immerse power unit in liquid or spray liquids directly on power unit. Symbol for Type B Applied part_Mattress according to IEC/EN 60601- 1 Double Insulated (Class II) equipment Read instructions for use Caution... -
Page 4: Safety Precautions
Failure to do so could result in serious patient injury or death. If applicable, adhere to facility or local guidelines regarding entrapment regulations. DO NOT Disassemble contact Opera Care on 0333 222 8584 . -
Page 5: System Package
It is recommended that the patient be repositioned periodically while using this mattress. Maintenance If the equipment needs maintenance, contact Opera Care on 0333 222 8584 as soon as possible. For equipment that is no longer functional, make sure to follow national, state, and/or facility requirements for disposal of the unit. -
Page 6: Features
5. Power Unit Features WEIGHT (KG) POWER 1. Power Switch The green power LED will light when the main power rocker switch on the panel is turned on. 2. Lockable Patient Weight Knob Patient Weight Knob is used to adjust the internal pressure of the mattress according to patient weight. - Page 7 3. Couplers Quick release female couplers are used to secure mattress air hoses to power unit. 4. Strain Relief of Power Cord provided with a molded-on anti-kink bushing held in place by integral slot in bottom enclosure. 5. Hanging Hooks Hanging hooks are designed to hang the power unit on almost any foot board.
-
Page 8: Mattress And Power Unit Installations
6. Mattress and Power Unit Installations Secure Mattress Overlay Place mattress overlay on top of the original mattress with the logo at foot end. Secure the mattress using the elastic straps at four corners. Please verify all bed functions are working properly without interference before proceeding to the next step. -
Page 9: Program Settings
7. Program Settings Adjusting Firmness Place the patient in the center of the mattress. Adjust the mattress’ internal pressure according to the patient weight by using the lockable patient weight knob on the control panel of the power unit. If the mattress is too soft or too firm, increase or decrease the mattress’... -
Page 10: Cleaning Instructions
11. Routine Maintenance and Storage needed, contact Opera Care on 0333 222 8584. Only disinfected and dry systems should be stored. Disconnect the air hoses from the power unit. Roll up the mattress starting from the head end and working down toward the foot end. -
Page 11: Troubleshooting
Turn on and operate the unit after failure. power is restored to the facility or home. Power unit does not respond Please contact Opera Care on 0333 to possible solutions. 222 8584 for assistance. Power unit Check CPR Pull Cord... -
Page 12: Returns For Service
Opera Care on 0333 222 8584 within three days of purchase. The warranty period for the products are according to the regulations in your country, the minimum period is 2 year from date of purchase for the power unit and 2 year for the mattress and the coverlet. - Page 13 Product Specifications System Name RELIEVE Overlay Mattress System Power Unit (Air Pump) Model SR303 Mattress Dimension 2000x900x130mm (5” depth) Number of Air Cells 16 Cells Power Control Unit Dimension 260x220x90mm Material Power Unit_Plastic Case rated UL 94V- 0 Mattress Cell – 100 % nylon with TPU lamination Coverlet –...
-
Page 14: Emc Declaration
For EN 60601-1-2 (3rd Ed.) Alpine HC Limited Company Name Company Address : Azure House, Connaught Road, Kingswood, HULL, HU7 3AP, UK Trade Name : OPERA Report Number : ETC 18-01-RBO-022-01 Power Supply : 220-240Vac, 50Hz, 20W Recommended separation distances between portable and mobile RF communications equipment and the ME equipment The Air Pump is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. - Page 15 Declaration – electromagnetic emissions and immunity – for EQUIPMENT and SYSTEMS that are not LIFE-SUPPORTING The Air Pump declaration – electromagnetic immunity The Air Pump system is intended for use in the electromagnetic environment specified below. The customer or the user of the Air Pump system should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level...
- Page 16 Opera Care, Azure House, Connaught Road, Hull, HU7 3AP 0333 222 8584 | support@opera-care.co.uk | opera-care.co.uk U-2S2301-30831-G V1.1...
