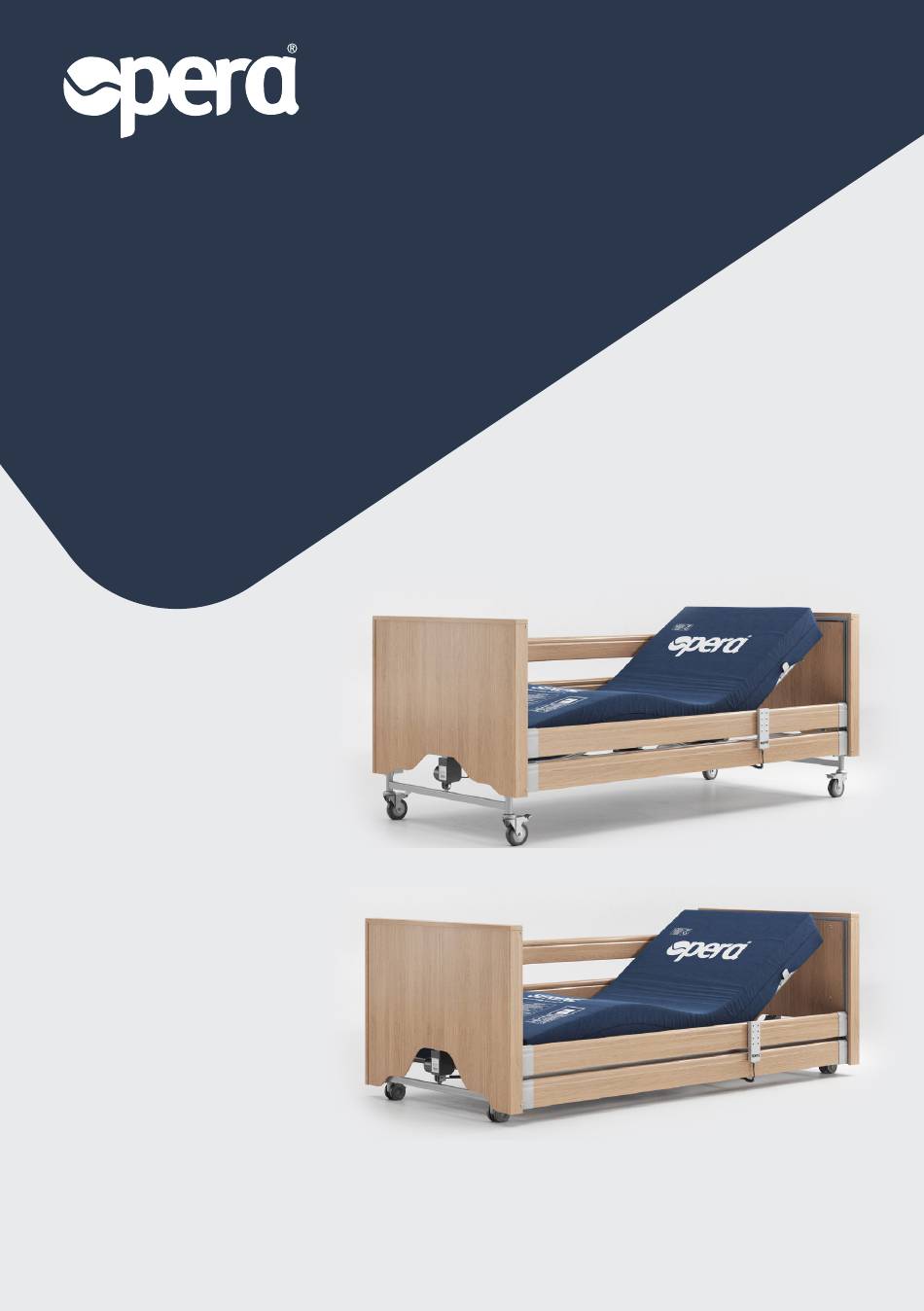

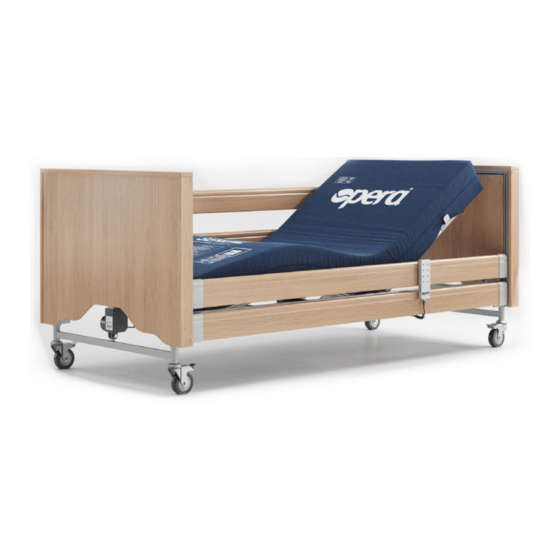

C
Opera Classic and
Classic Low Profiling
Bed Installation Guide
and Technical
Specifications
opera-care.co.uk | 0333 222 8584

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classic and is the answer not in the manual?

Questions and answers

Related Manuals for Opera Classic

Summary of Contents for Opera Classic

  • Page 1 Opera Classic and Classic Low Profiling Bed Installation Guide and Technical Specifications opera-care.co.uk | 0333 222 8584...

  • Page 2: Table Of Contents

    3. Bed Operation and Maintenance 4. Troubleshooting 5. Safety Instructions 6. General Information 7. Servicing 8. Technical Specification 9. Service Life and Disposal 10. Guarantee 11. Opera Warranty Terms and Conditions 1 | Opera Care Classic Installation Guide and Technical Specifications Version 2...

  • Page 3: Explanations Of Symbols

    This product must be disposed of in a separate refuse collection in the European Union. Do not dispose of as normal domestic waste. Symbol for direct current. Symbol for alternating current. Maximum permissible load. Maximum patient weight. Read instructions opera-care.co.uk | 0333 222 8584 |...

  • Page 4: Installation And Commissioning

    * These items are already fitted to the Head/Footboards **These items are already fitted to the Mattress Platform Sections Please note that styles may vary depending upon purchase 3 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 5 (K) Power Transformer Before you begin, you will also need: • Wall space with a plug socket nearby • Tools: 4mm & 6mm Allen Key, A cross head screw driver ; Pair of scissors opera-care.co.uk | 0333 222 8584 |...
  • Page 6 Place the side rail box to one side. Place accessories to one side Detach the following accessories and place to one side: (H) Side Rail End Caps x 8 5 | Opera Care Classic Installation Guide and Technical Specifications | Version 2...
  • Page 7 The mattress platforms are heavy, please observe the general rules of manual handling to prevent strain and injury. Mattress platforms removed from Mattress platform lifted out of the transport bracket transport bracket Mattress backrest platform facing up opera-care.co.uk | 0333 222 8584 |...
  • Page 8 (as per the photos below). The securing bolts are on the inside frame of the head/footboards, with one at each side. Securing bolt released Securing bolt location Securing bolt secured 7 | Opera Care Classic Installation Guide and Technical Specifications | Version 2...
  • Page 9 Repeat the steps above to remove the headboard, place the headboard against the wall and place the detached transport bracket to one side. Transport bracket with footboard removed opera-care.co.uk | 0333 222 8584 |...
  • Page 10 Repeat for the mattress backrest platform. Actuator not aligned Pin removed and holes aligned Pin inserted with guard in place Pin inserted 9 | Opera Care Classic Installation Guide and Technical Specifications | Version 2...
  • Page 11 Mattress backrest platform side Mattress backrest platform lined up to channels lined up to the headboard headboard Mattress backrest platform and Securing bolt securing the mattress headboard secured by securing bolt backrest platform to the headboard opera-care.co.uk | 0333 222 8584 |...
  • Page 12 Backrest platform lined up with the Backrest platform inserted into the mattress legrest platform mattress legrest platform Loose thumb screws on the mattress Thumb screw tightened legrest platform 11 | Opera Care Classic Installation Guide and Technical Specifications | Version 2...
  • Page 13 Remove the cable ties Using a pair of scissors, carefully remove the cable ties from the actuator motors, handset and the mattress platform. Be careful, ensure that no wires are cut or damaged. opera-care.co.uk | 0333 222 8584 |...
  • Page 14 Control box under the bed platform Backrest platfrom lifted up Control box with actuators plugged in Control box with cover attached 13 | Opera Care Classic Installation Guide and Technical Specifications | Version 2...
  • Page 15 Fit the plastic end caps (H) to both ends of the individual side rails. To do this use the bottom of the side rail as a leading edge and push on the cap (see photo below). opera-care.co.uk | 0333 222 8584 |...
  • Page 16 (B). The side rail runners go into the top and bottom holes of the side rail end caps. Side rail runners lined up with side rail Side rail runners inserted into side rail Side rail attached to headboard 15 | Opera Care Classic Installation Guide and Technical Specifications | Version 2...
  • Page 17 Slide the footboard back into the mattress platform mounting channels and secure with the black securing bolts. Side rail runners inserted into side rail Securing bolt released and footboard pulled away Footboard secured to mattress legrest Side rails attached platform opera-care.co.uk | 0333 222 8584 |...
  • Page 18 After replacing the side rails, secure the side rails with the side rail channel fixing bolts. Side rail channel fixing bolts circled 17 | Opera Care Classic Installation Guide and Technical Specifications | Version 2...
  • Page 19 *Please refer to page 21 on how to use the handset to perform the above tests. ATTENTION: Ensure that there are no cables caught when adjusting the bed height. Before lowering the bed check that the area underneath is clear, any obtructions could damage the bed. opera-care.co.uk | 0333 222 8584 |...
  • Page 20 220mm. • The mattress must meet the requirements outlined in the technical specifications. 19 | Opera Care Classic Installation Guide and Technical Specifications | Version 2...

  • Page 21: Bed Operation And Maintenance

    5. Mechanically adjustable legrest power supply box and plug 6. Handset with locking key 13. Mattress holder 7. Backrest actuator 14. Side rails 8. Legrest actuator 15. Side rail channel and runner 16. Brakeable castors opera-care.co.uk | 0333 222 8584 |...
  • Page 22 The switching positions I and II are testing settings, used to check the safety of the bed during annual inspections, after repair work or each time the bed is put into storage. Please refer to page 37 for further information. 21 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 23 Brake on Brake Off The brakes must only be released to move the bed into a new position. The bed is not intended to be used to transport occupants, doing so may result in injury. opera-care.co.uk | 0333 222 8584 |...
  • Page 24 Carefully pull out the battery holder and replace the 9V battery with a new one. Connect the new battery and slide the battery holder back in to the control box. • Replace the cover and secure. 23 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 25 Use the handset to raise the knee break angle back up, this will allow the occupant to further adjust the knee break angle with the handset. opera-care.co.uk | 0333 222 8584 |...

  • Page 26: Troubleshooting

    9V block plugged in battery as a precaution (See page 19 on how to do this) * The control box is located underneath the mattress platform 25 | Opera Care Classic Installation Guide and Technical Specifications Version 2...

  • Page 27: Safety Instructions

    When the side rails are used, the following instructions must be adhered to, to ensure compliance with IEC 60601-2-52: • Use only approved side rails supplied as an option by Opera. • Only suitably instructed personnel are allowed to operate the side rails.
  • Page 28 In order to move the care bed, the brake on all four castors must be released and the mattress base be adjusted to the lowest horizontal position. 27 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 29 (please refer to Technical Data). Do not exceed the maximum weight limitation of the care bed. The maximum safe working load (SWL) is 220kg/34st 6lb for the Opera Classic Profiling Bed and Opera Classic Low Profiling Bed.
  • Page 30 6LR61 alkaline manganese battery and to replace it every two years. Used batteries must be disposed of in an environmentally compatible way, contact your local waste recycling facility for further detail. 29 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 31 Otherwise the bed may tip up, resulting in serious injury. Only the supplied side rails (BOA003) can be used with the Opera Classic Profiling Beds, please see the specifications for further details on the side rails.

  • Page 32: General Information

    In addition, these persons are instructed in the cleaning and disinfection regulations for the care bed. 31 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 33 Refer to chapter 5.4 on how to clean and care for the bed. Opera Beds bear the CE mark and meet all general safety and performance requirements. The beds have been tested in accordance with international standards.
  • Page 34 If the care bed is faulty, operation must not be started. Any issues or incidents must be reported to Opera Care. Please refer to the back cover for contact details. 33 | Opera Care Classic Installation Guide and Technical Specifications Version 2...

  • Page 35: Servicing

    IMPORTANT: If you have any doubts about the safety or functioning of the care bed or a component as a result of the checks performed below the bed should under no circumstances be placed into service again. Contact Opera when there is any uncertainty.
  • Page 36 Do the side rails lock safely into place? Max. distance between the side rails 120mm? Height of side rails above the mattress at least 220mm? 35 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 37 9V block battery OK / expiry date sufficient until next test? Is the safe working load adhered to? Comments: .............................. Place / Date: ............................. Inspected by: ............................Next inspection: ............................Signature: ..............................opera-care.co.uk | 0333 222 8584 |...

  • Page 38: Technical Specification

    Height range (floor 390-815mm/15.3”-32.1” 214-639mm/8.4”-25.2” to top of mattress platform) External length 2180mm/86” External width 1055mm/41.5” External height (in 890mm/35” 815mm/32” lowest position) External height (in 1296.5mm/51.0” 1225mm/48.2” highest position) 37 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 39 Maximum mattress 120mm-200mm/4.7”- 7.9” depth Recommended 2000mm/78.7” mattress length Recommended 870mm to 900mm/35.4” mattress width Backrest length 743mm/29.2” Thighrest length 350mm/13.8” Legrest length 540mm/21.3” Maximum backrest approx. 70° angle Maximum legrest approx. 30° angle opera-care.co.uk | 0333 222 8584 |...
  • Page 40 18 minutes Primary safety fuse Battery for emergency lowering x 1 6LR61 Mattress base motor units (back/leg) MD125 (limoss) Height adjustment motor unit MD121 (limoss) Motor unit protection class 39 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 41 8.5 Weights of the Individual Components Mattress platform - head section 24kg Mattress platform - leg section 20.5kg Bed chassis 45kg Head and foot board (individual) 10kg Wooden side rails 10.5kg Transportation bracket 10kg opera-care.co.uk | 0333 222 8584 |...
  • Page 42 Emissions of Class A harmonics according to IEC 61000-3-2 Emissions of volatge Complies fluctuations/Flicker according to IEC 61000-3-3 41 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 43 The quality of the supply according to IEC voltage should be equivalent Voltage Voltage 61000-4-5 to that of a typical business phase-phase phase-phase or hospital environment conductor conductor 1 Kv Voltage 1 Kv Voltage phase-ground phase-ground conductor conductor opera-care.co.uk | 0333 222 8584 |...
  • Page 44 The customer or user of the care bed should ensure that it is used in such an environment Interference IEC 60601 Compliance Electromagentic Environment - Immunity Test Level Level Guidelines Certification 43 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 45 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 opera-care.co.uk | 0333 222 8584 |...

  • Page 46: Service Life And Disposal

    The care bed is suitable to be put into service again if all measures of section 2 and 7 are taken. Frequent transportation, setting up and adjustment, reduce the service life, as does improper treatment, irregular 45 | Opera Care Classic Installation Guide and Technical Specifications Version 2...

  • Page 47: Guarantee

    11.2.3 The customer is responsible for inspecting all goods received from Opera upon arrival. In instances where goods have been damaged in transit, the customer must report this to Opera within 3 working days of receipt of the product. Failure to report physical damage on arrival within three working days of receipt may result in denial of warranty for physical damage.
  • Page 48 Replacement of the product or a part under the warranty does not extend or restart the warranty period. 11.2.5 If Opera is unable to repair or replace the product, the customer will be provided with credit for Opera products or may be refunded the price of the product (at Operas election).
  • Page 49 11.3.3 To the full extent permitted by law, but subject always to clause 11.3.1: (a) Opera will not be liable for any loss, damage or alterations to third party products, no matter how occurring; or for any loss or damage arising from loss of use, loss of profits or revenue, or for any resulting indirect or consequential loss of damage.
  • Page 50 11. Warranty Terms and Conditions (b) Opera’s aggregate liability in respect of all claims under the warranty shall not exceed the original purchase price of the product or, at Opera’s option, the replacement of the product with a like or similar product.
  • Page 51 Notes opera-care.co.uk | 0333 222 8584 |...
  • Page 52 Notes 51 | Opera Care Classic Installation Guide and Technical Specifications Version 2...
  • Page 53 Notes opera-care.co.uk | 0333 222 8584 |...
  • Page 54 Opera Care Azure House, Connaught Road, Kingswood, Hull. HU7 3AP 0333 222 8584 support@opera-care.co.uk opera-care.co.uk Version 2 | Published October 2020...
