Key Points
Trigger When.
The source runt pulse width must be ≥5 ns in order for
the oscilloscope to detect the pulse.
Slew Rate Trigger
Slew-rate triggering triggers the oscilloscope when a signal's slew rate
(rise or fall time) is less than, greater than, equal to, or not equal to a
specified slew rate. This trigger is useful for troubleshooting digital bus
transceivers, transmission lines, and op-amp circuits.

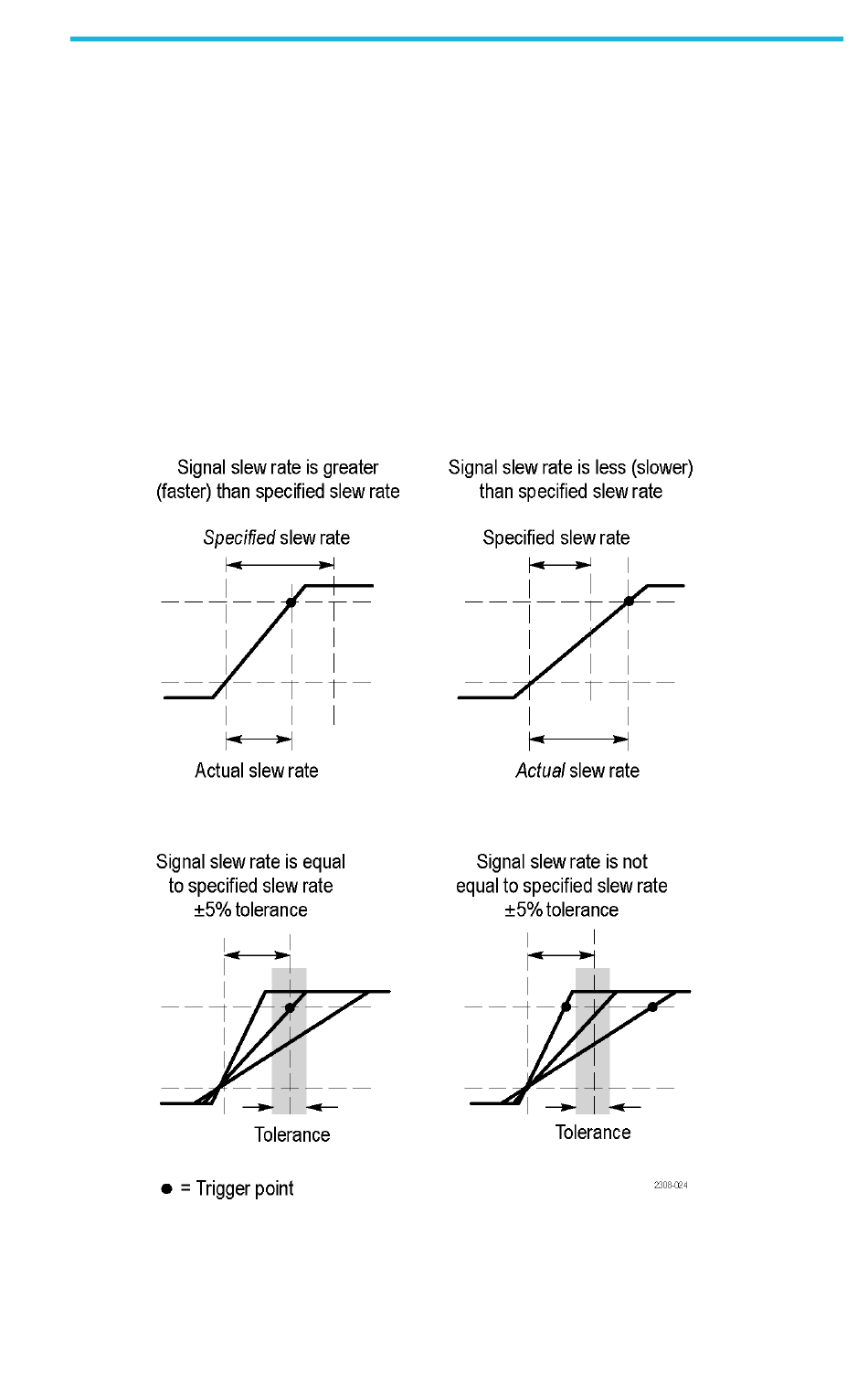

Slew Rate Trigger Conditions
TDS3000C Series Oscilloscopes User Manual
133
