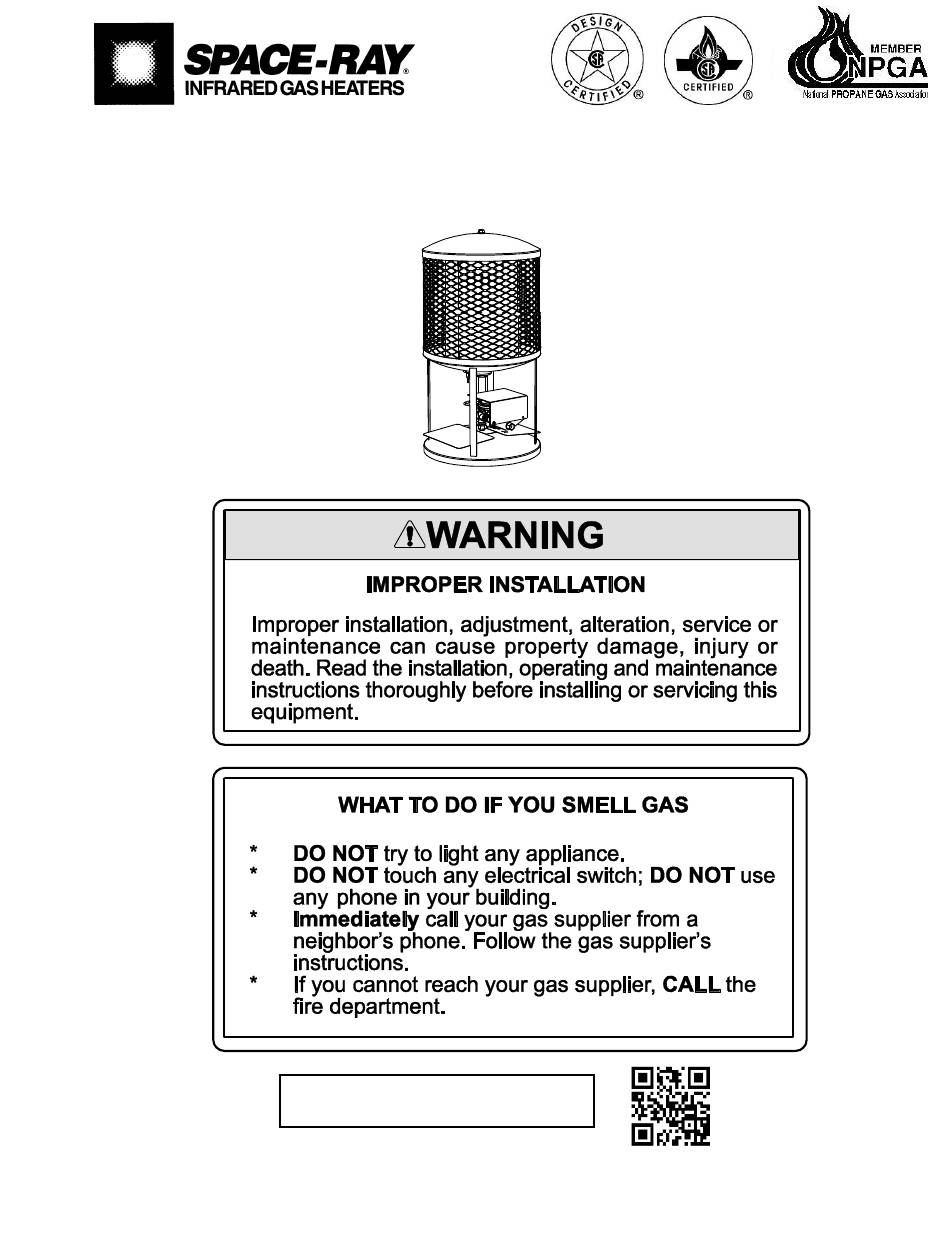

INSTALLATION AND OPERATION INSTRUCTIONS
Models: RFPA10C - N6/L6/N6C/L6C/N9A/L9A
Printed in U.S.A.
Space-Ray Division, Gas Fired Products, Inc. P.O. Box 36485, Charlotte, NC 28236 (704) 372-3485
Form 41357040
May 2021
CONSTRUCTION FLOOR HEATER
Scan warranty QR code on the right to
register your product.
SAVE FOR FUTURE REFERENCE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Space-Ray RFPA10C-N6
Summary of Contents for Space-Ray RFPA10C-N6
- Page 1 Models: RFPA10C - N6/L6/N6C/L6C/N9A/L9A Printed in U.S.A. Scan warranty QR code on the right to register your product. SAVE FOR FUTURE REFERENCE Space-Ray Division, Gas Fired Products, Inc. P.O. Box 36485, Charlotte, NC 28236 (704) 372-3485 Form 41357040 May 2021...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION 1 GENERAL INFORMATION………………………….……………………………….. 2 SECTION 2 SPECIFICATIONS ........3 SECTION 3 ADDING OPTIONAL REFLECTOR. -
Page 3: General Information
SECTION 1: RFPA10C GENERAL INFORMATION INSTALLER: This manual is the property of the owner. Please present this manual to the owner when you leave the job site. This heater is a self-contained infrared floor model heater for use in the temporary heating of buildings under construction, repair or alteration. -
Page 4: Specifications
This heater is intended for use in the temporary heating of buildings or structures under construction, alteration or repair. Installation of this heater must be in accordance with all applicable codes shown in the instructions and/or the local codes and authorities having jurisdiction. Heaters shall be installed by a licensed contractor or licensed installer. -
Page 5: Adding Optional Reflector
MODEL SUFFIXES: Natural Gas Propane Gas Standing Pilot Ignition, 100% Safety Shutoff, Manual Valve (Baso) Standing Pilot Ignition, 100% Safety Shutoff, Manual Valve (WhiteRodgers) Standing Pilot Ignition, 100% Safety Shutoff, Thermostatic Controlled Valve (Robertshaw) This heater is for operation at elevations of 0-2000 FT only. Table 2: Model Dimensions DIMENSIONS RFPA10C... -
Page 6: Minimum Clearances To Combustibles
SECTION 4: MINIMUM CLEARANCES TO COMBUSTIBLES The heater shall be operated only on a NON-COMBUSTIBLE, level floor. Minimum clearances to combustible walls and ceilings are listed below: Table 3: RFPA10C Clearances to combustibles. CLEARANCE FROM MODEL RFPA10C FRONT SIDES REAR PROPANE CYLINDER WITH REFLECTOR 120"... -
Page 7: Information For Propane Gas Floor Models Only
The heater must be connected to the tank or cylinder by a UL Listed hose assembly or hard piping. A 15 foot assembly of UL Listed hose is available with each heater from Space-Ray under Part No. 30522020. A PROPANE cylinder kit Part No. 30524000 containing a single stage PROPANE gas regulator (operation range: 10 to 150 PSIG inlet and 11.0"... - Page 8 heater and in the instructions. Fasten PROPANE cylinders securely so they cannot be knocked over. When the heater is to be stored indoors, the connection between the propane supply cylinder(s) and the heater must be disconnected and the cylinder(s) removed from the heater andstored in accordance with the Standard or the Storage andHandling of Liquefied Petroleum Gases, ANSI/NFPA 58 and CSA B149.1, Natural Gas and Propane Installation Code.
-
Page 9: Figure 2 Regulator And Hose Assembly
Figure 2: Regulator and hose assembly Form 41357040 May 2021... -
Page 10: Ventilation And Combustion Air
• Do not use this heater for heating human living quarters. • Use of direct-fired heaters in the construction environment can result in exposure to levels of CO, CO2, and NO2 considered to be hazardous to health and potentially life threatening. •... - Page 11 USA 8-Hr Time weighted average Canada 8-hr time weighted average (OSHA 29 CFR 1926.55 App A) WorkSafe BC OHS Guidelines Part 5.1 and Ontario Workplaces Reg 833 50 ppm 25 ppm 5000 ppm 5000 ppm 3 ppm (Reg 833) USA – Ceiling Limit Canada STEL (15 minutes Reg 833/1 hour (Short Term Exposure Limit = 15 minutes) WSBC) WorkSafe BC OHS Guidelines Part 5.1...
-
Page 12: Lighting And Shutdown Instructions
Form 41357040 May 2021... -
Page 13: Cleaning And Annual Maintenance
Figure 3: Gas control knob setting position SECTION 10: CLEANING AND ANNUAL MAINTENANCE This heater must be cleaned and serviced at least once before the start of each heating season or at any time the infrared emitter show signs of collecting any foreign material on its surface. -
Page 14: Replacing Parts
RFPA10C (ALL MODELS) 41795010 Pilot Shield - Inner RFPA10C (ALL MODELS) 03399020 Pilot Burner & Orifice Fitting - Nat. #J129DDA3223 RFPA10C-N6,N6C,N9A 03399030 Pilot Burner & Orifice Fitting - PROPANE RFPA10C-L6,L6C,L9A #J129DDA4212 03345010 Pilot Orifice - Nat (.023") #Y90AA - 3223... - Page 15 Gas Valve - Robertshaw (Nat 3.5" w.c.) RFPA10C-N9A 30640010 Gas Valve - Robertshaw (PROPANE 10" w.c.) RFPA10C-L9A 30640000 Regulator - RV48 (Nat. 4”w.c.) 03307100 RFPA10C-N6,N6C Regulator – RV48 (PROPANE 10”w.c.) 03307210 RFPA10C-L6C 30524000 *Regulator - 230 (PROPANE) POL x 3/8" (not shown) RFPA10C-L6,L6C,L9A 03333100...
-
Page 16: Figure 4 Replacement Parts
Form 41357040 May 2021... - Page 17 Form 41357040 May 2021...
- Page 18 LIMITED WARRANTY: Gas-Fired Products, Inc., the manufacturer, warrants to the original owner of any Space-Ray infrared gas heater that said heater will be free from defects in material or workmanship under normal use and service. The heater(s) shall be installed, used and maintained strictly in accordance with the manufacturer's instructions. The manufacturer's sole obligation under this warranty shall be limited to furnishing replacement parts, F.O.B.
