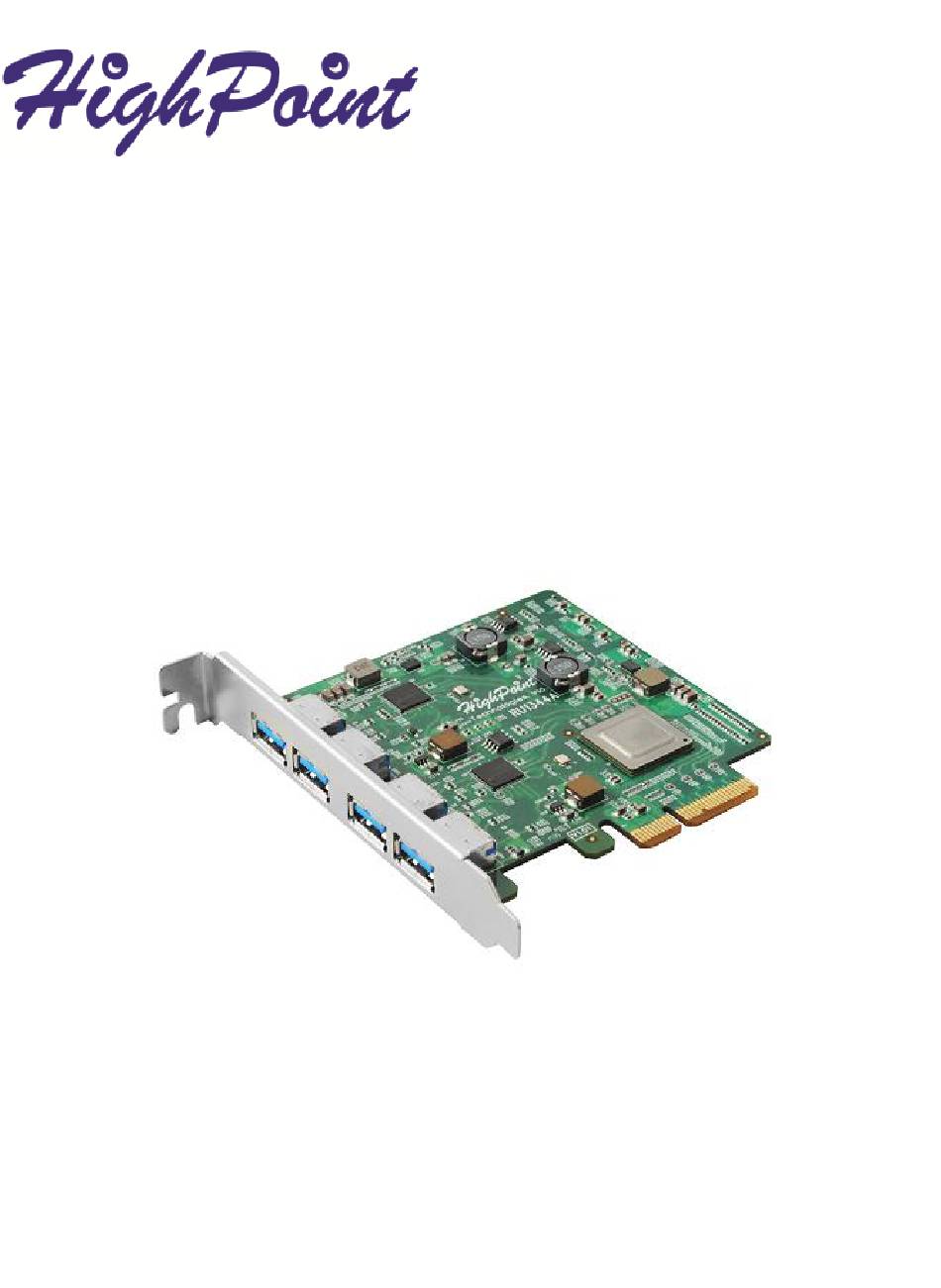

- Page 1 RocketU 1344A PCIe 3.0 to Quad Port USB 3.1 HBA Quick Installation Guide V1.0...
- Page 2 Introducing the HighPoint RocketU 1344A ........... 2 Kit Contents ..................2 System Requirement ................2 Board Layout..................3 Installing the RocketU 1344A Host Adapter .......... 4 Driver Installation................4 Verifying Installation (Windows) ............5 Verifying Installation (Mac OS X) ............5 Connecting USB Storage Devices............

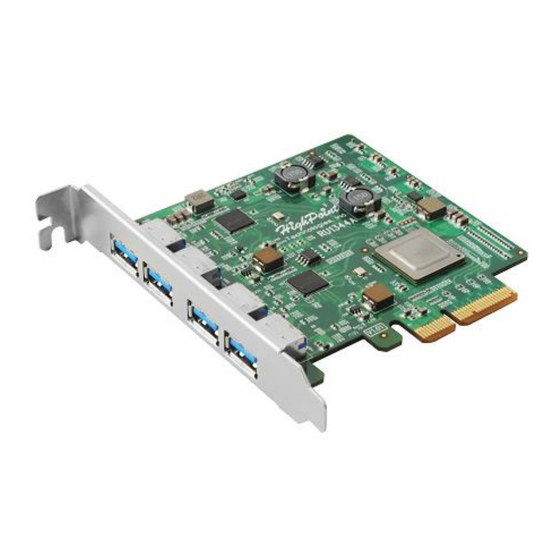

- Page 3 Introducing the HighPoint RocketU 1344A The RocketU 1344A is a 4-Channel USB 3.1 10Gb/s PCIe 3.0 x4 host adapter. It can be easily installed into any PCIe x4, x8 or x16 slot, and is natively supported by the latest versions of Windows, Mac OS, and Linux distributions.
- Page 4 Board Layout...
- Page 5 5. Close and secure the system chassis. Driver Installation Windows Platforms: The RocketU 1344A is natively supported by Windows 8 and later (no driver installation is required). Mac OS: The RocketU 1344A is natively supported by Mac OS 10.10 and later (no driver installation is required).
- Page 6 Host Controller. Connecting USB Storage Devices 1. Power on the system. 2. Connect the USB device to the HighPoint RocketU HBA with a USB cable. 3. For hard drives or enclosures, allow the device to spin up for a few moments.
- Page 7 FCC Part 15 Class B Radio Frequency Interference statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 8 Customer Support If you encounter any problems while utilizing this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: http://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc. websites: http://www.highpoint-tech.com © Copyright 2017 HighPoint Technologies, Inc. All right reserved.
