Summary of Contents for Hans Grohe AXOR Starck 10030 1 Series

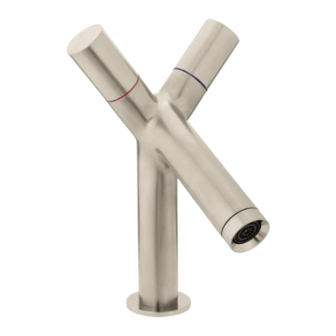

- Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Starck 10030xx1...
-
Page 2: Technical Information
English Technical Information Recommended water pressure 15 - 75 PSI Max. water pressure 145 PSI Recommended hot water temp. 120° - 140° F* Max. hot water temp 176°F* Flow rate 1.5 GPM Hole size in mounting surface 1⅜" Max. depth of mounting surface 1½" *Please know and follow all applicable local plumbing codes when setting the temperature on the water heater. Tools Required / Outiles Utiles / Herramientas Útiles Installation Considerations 9 mm • For best results, Hansgrohe recommends that this 16 mm unit be installed by a licensed, professional plumber. -
Page 3: Données Techniques
Français Español Données techniques Datos tecnicos Pression d’eau recommandée 15 - 75 PSI Presión recomendada en servicio 15 - 75 PSI Pression d’eau maximum 145 PSI Presión en servicio max. 145 PSI Température recommandée 120° - 140° F* Temperatura recomendada del 120° - 140° F* d'eau chaude agua caliente Température maximum d'eau chaude 176°F* Temperatura del agua caliente max. 176°F* Capacité nominale 1.5 GPM Caudal máximo 1.5 GPM Dimension du trou dans la surface de montage 1⅜ po Tamaño del orificio en la superficie de montaje 1⅜" Profondeur maximale de la surface 1½ po Profundidad máxima de la 1½" de montage superficie de montaje * Vous devez connaître et respecter tous les codes de plom- *Debe conocer y cumplir todos los códigos locales apli- berie locaux applicables pour le réglage de la température cables para ajustar la temperatura del calentador de agua. - Page 4 10030xx1 2¼" 1¼" 1¼" O.D. User Instructions / Instructions de service / Manejo ouvert fermé abierto cerrar cold froide chaude frío caliente...
-
Page 5: Installation / Installation / Instalación
Installation / Installation / Instalación English Français Español Place the faucet and sealing ring Placez le robinet et l’anneau Coloque el grifo y el aro de on the mounting surface. d’étanchéité sur la surface de sellado sobre la superficie de montage. montaje. Install the friction washer, metal washer, and mounting nut. Installez la rondelle en fibre, la Instale la arandela de fibra, la rondelle métallique et l’écrou de arandela metálica y la tuerca de Tighten the mounting nut. montage. montaje. Serrez l’écrou de montage. Apriete la tuerca de montaje. Tighten the tensioning screws. Serrez les vis de pression. Apriete los tornillos tensores. Install the drain pull rod. Installez la tirette. Instale el tirador. - Page 6 > 2 min English Français Español Connect the hot and cold supply Connectez les tuyaux d’arrivée sur Conecte las mangueras de sumin- lines to the stops. les butées d’arrêt. istro sobre los topes. Use two wrenches, Utilisez deux clés, tel Use las dos llaves as shown in the qu’illustré. fijas como se ilustra. diagram, to prevent Assurez-vous que No permita las hose twisting.
- Page 7 Installation / Installation / Instalación Petroleum-based plumbers putty Le mastic de pétrole-basé peut Masilla de petróleo-basó puede may damage some sink materials. endommager la surface de quelque dañar la superficie de algún bañeras. Consulte por favor al Please refer to the instructions baignoires. S'il vous plaît consulter included with the sink regarding le fabricant du baignoire quant aux fabricante del bañera con respecto acceptable sealants. enduits d'étanchéité acceptables. a selladores aceptables.
- Page 8 Replacement Parts / Pièces détachées / Repuestos 96319000 94184000 96318xx0 94149000 95379xx0 94083xx0 13961000 96321001 88509xx0 xx = colors / couleurs / acabados 00 = chrome 82 = brushed nickel...
- Page 9 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of For best results: • Prevent the buildup of mineral scale and /or soap residue by cleaning your Hansgrohe product(s) when needed. • Select a cleaning agent specifically intended for the type of product. • Do not use these types of cleaners as they will cause damage to your Hansgrohe product: Any cleaning agent containing hydrochloric acid, formic acid, lye, or acetic acid. Abrasive cleaning powders, pads, or brushes. Steam cleaners. “No rinse” cleaning agents. • Always follow the instructions provided by the manufacturer of the cleaning agent. • Do not mix cleaning agents, unless directed by the manufacturer. • Do not spray cleaners directly onto the product as drops could enter openings and gaps and cause damage. When using spray cleaners, spray the cleaner onto a soft cloth or sponge. • Always rinse your Hansgrohe product thoroughly with clear water and polish dry with a soft cloth after cleaning. Important • Residue from soaps and shampoos can cause damage. Rinse the product with clean water after each use. • Residue from basin/tub/tile cleaner can cause damage to faucets and fittings. Immediately rinse any overspray from the Hansgrohe product.
-
Page 10: Indications Importantes
• Pour le nettoyage avec produit vaporisé liquide, en aucun cas sur la robinetterie, mais au contraire aspergé sur le chiffon (torchon, éponge) et effectuer comme cela le nettoyage, car les aérosols peuvent pénétrer dans les ouvertures et fentes de la robinetterie et peuvent provoquer des détériorations. • Après le nettoyage rincez avec suffisamment d’eau claire pour éliminer les restes de produits attachés. • L’utilisation d’appareil de nettoyage à vapeur n’est pas autorisée, car les températures importantes peuvent détériorer les produits. Indications importantes • Les produits pour le corps comme les savons liquides, les shampooings ou les gels de douche peuvent causer des détériorations. • Ici aussi on doit: Après l’utilisation rincer soigneusement les restes avec de l’eau. Conseil de nettoyage • Les deteriorations imputables à un mauvais entretien ne peuvent être pris en considération par notre garantie. • Par l’action d’un nettoyant sur les revêtements déjà endommagé il se produit une aggravation des dégâts. Recomendación de limpieza para los productos de Hansgrohe Hoy en día, las griferías de baño y de cocina así como duchas modernas se componen de materiales muy distintos para satisfacer las exigencias del mercado respecto al diseño y la funcionalidad. Para evitar daños y reclamaciones hay que tener en cuenta ciertos aspectos tanto en el uso como en su limpieza. -
Page 11: Limited Consumer Warranty
Limited Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products that are purchased by a consumer in the United States or Canada after March 1, 1996, and installed in either the United States or in Canada. WHO IS COVERED BY THE WARRANTY This warranty extends to the original purchaser only. This warranty is non-transferable. WHAT IS COVERED BY THE WARRANTY The warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in mate- rial or workmanship as follows: Hansgrohe will replace at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If Hansgrohe is unable to provide a replacement and repair is not practical or cannot be made in timely fashion, Hansgrohe may elect to refund the purchase price in exchange for the return of the product. LENGTH OF WARRANTY Replacement or repaired parts of products will be covered for the term of this warranty, as stated in the following two sentences. If you are a consumer who purchased the product for use primarily for personal, family or household purposes, this warranty extends for as long as you own the product and the home in which the product is originally installed. If you purchased the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this war- ranty extends only (i) for 1 year, with respect to Hansgrohe & Commercial products, and (ii) for 5 years, with respect to Axor products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: Conditions, malfunctions or damage not resulting from defects in material or workmanship. -
Page 12: Exclusions And Limitations
Exclusions and Limitations REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES,REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER.HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.
