Footplate Angle

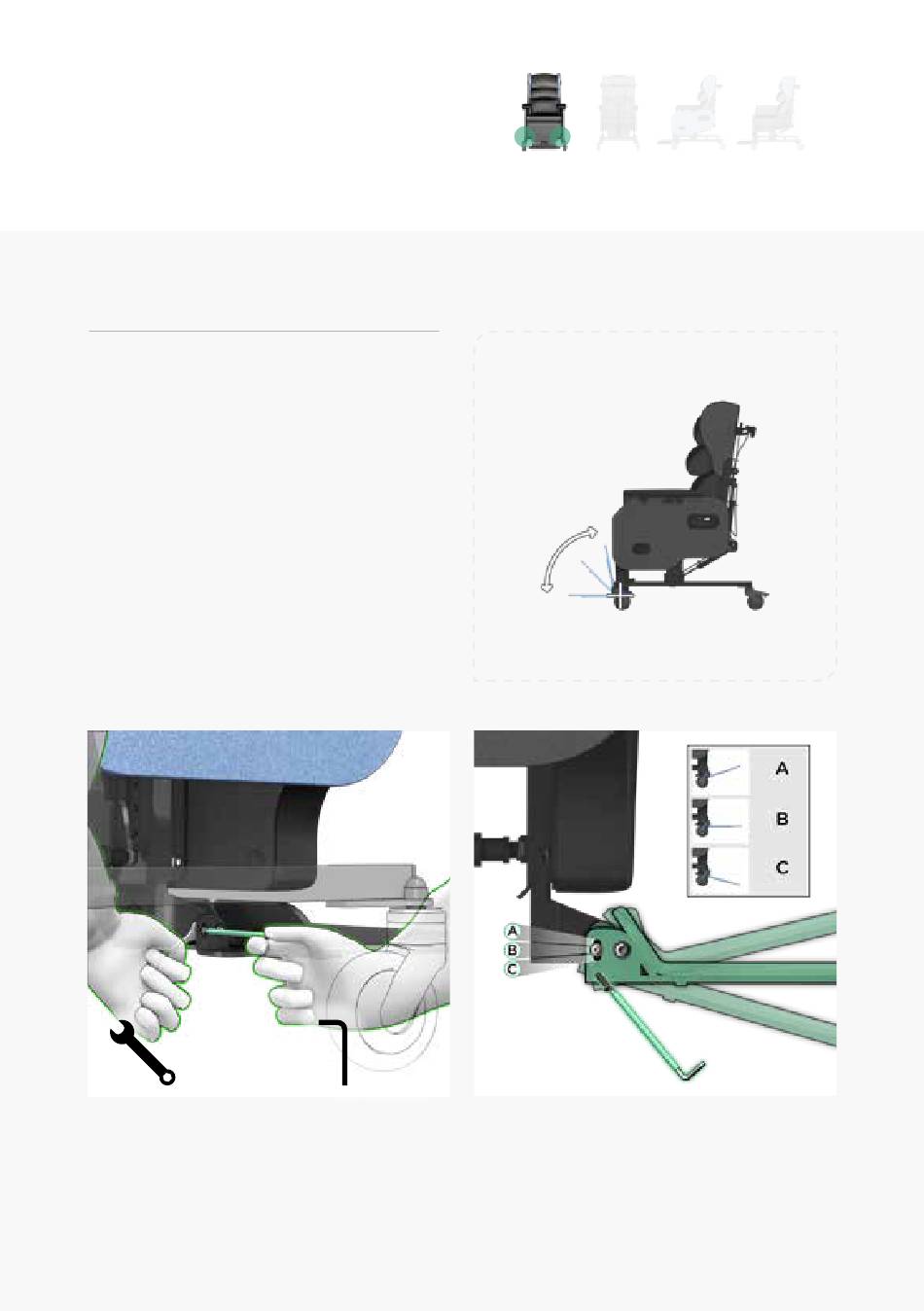

To adjust the angle of the footplate (fig.9).
Using a 4mm allen key and 10mm spanner,
loosen and remove the fixing bolt at either
side of the footplate pivot (fig.9a).
Relocate both bolts to the required setting
(fig.9b) and tighten securely.
