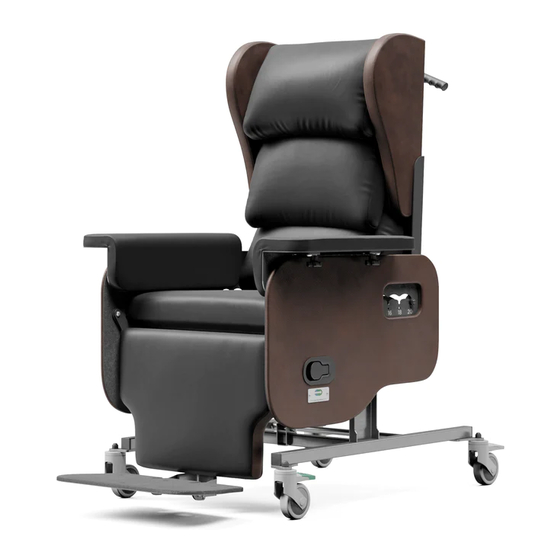

Seating Matters MILANO Instruction Manual

Hide thumbs Also See for MILANO:

Advertisement

Quick Links

Download this manual
MILANO
™
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MILANO and is the answer not in the manual?

Questions and answers

Related Manuals for Seating Matters MILANO

Summary of Contents for Seating Matters MILANO

  • Page 1 MILANO ™ Instruction Manual...
  • Page 2 WANT TO GO STRAIGHT? Ensure to engage directional lock castor at front left of chair Version 1...

  • Page 3: Table Of Contents

    This Instruction Manual is frequently updated to ensure safe use of your product. Visit www.seatingmatters.com where you can find a free copy of the most up to date version. CONTENTS Safety instructions. Technical Specification. User Guide and Operating Instructions. Cleaning & Maintenancce of Fabric. Intellectual Property. Maintenance and Servicing. MILANO™ Instruction Manual...

  • Page 4: Safety Instructions

    The care giver must ensure that the product is in good condition before use (check all nuts and bolts are fastened, fabric in good condition etc). If there are any problems, these must be reported to your Seating Matters provider and corrected before the chair is put into use.
  • Page 5 For motorised options, please ensure that your chair is charged daily. Please call your Seating Matters provider or contact Seating Matters direct at technical@seatingmatters.com if you have any questions on these points.

  • Page 6: Technical Specification

    MILANO Basic dimensions. TECHNICAL SPECIFICATION Overall height 1300mm/51in Back height 770mm/30in Seat height 540mm/21in Overall length 930mm/36.5in Footplate height adjustments. High 400mm/16in from seat 580mm/23in from seat Seat depth. (L) Seat Position 1 400mm/16in Seat Position 2 450mm/18in Seat Position 3 500mm/20in Available seat and overall width.

  • Page 7: User Guide And Operating Instructions

    (fig.1a) • Braking castors: The MILANO™ chair must be used on a plane, hard surface with the brakes engaged to ensure stability and to avoid the device moving undesirably during use. Braking castors, where provided, must be in the braked position while in use (fig.1).
  • Page 8 Tilt in Space Back Angle Adjustment Seat Belt Loops (fig.2) • Back angle adjustment: To recline the back of the chair, the care giver must inform the patient, stand behind the chair, and with two hands, firmly hold the push handle while closing the release lever (fig.2a).
  • Page 9 To adjust the seat width, loosen the two grips knobs on the underside of the arm pads (fig.3a). Move the arm pads inwards to reduce seat width and outwards to increase it. Tighten the grip knobs once the desired width has been achieved. MILANO™ Instruction Manual...
  • Page 10 Manual Lever to elevate leg rest (fig.4) • Leg elevation: Before changing the angle of the elevating leg rest, the caare giver or patient must ensure there are no objects in the immediate environment that could obstruct the leg rest elevation or come into contact with the patients legs.
  • Page 11 • Seat Cushion: The seat cushion on the MILANO™ is a waterproof, pressure redistributing breathable foam cushion providing pressure management and comfort. Ensure the seat cushion label (stating BOTTOM and BACK) is placed at the back of the seat base and facing down., with the zip closure at the back and the nonslip material facing down.
  • Page 12 • Fully Motorised Hand Control: If your chair is a fully motorised model the tilt in space, leg rest and back angle recline are controlled by the electric handset. Simply push the button to operate the desired function. Back Down Back Up Leg Rest Down Leg Rest Up...
  • Page 13 (fig. 6a). (fig. 6b). (fig. 6c). (fig. 6d). fig. 6c Indication fig. 6d Full Charge *NOT AVAILABLE IN ALL TERRITORIES. Please check with your local distributor. NOT AVAILABLE IN ALL TERRITORIES. Please check with your local distributor. MILANO™ Instruction Manual...
  • Page 14 CLEANING & MAINTENANCE OF FABRIC Non-absorbent, anti-bacterial, flame retardant, strong, durable material for outer arms, outside back etc. Vinyl is resistant to urine, most household stains, mild acids/alkalis, drinks and beverages as they are not absorbed by the vinyl and can be wiped off without any problem or lasting damage.
  • Page 15 1988 safety regulations. Regional Variations The device referred to as a "MILANO™" is a Seating Matters product category and the information included in this document reflects common features of this group of products. In some regions of the world, we supply product design variations of similar function and ease-of-use but with alternative specifications or reinforcements.

  • Page 16: Intellectual Property

    Important Parts can only be changed by service persons trained in Seating Matters products and use only Seating Matters parts. We recommend that your chair is serviced every year by a Seating Matters approved provider for any running repairs and maintenance.
  • Page 17 • Frame: Check the visible parts of the frame for cracks, splits, large dents or other damage. If you find any of these things do not use. Contact your Seating Matters approved provider immediately. WE ARE HERE TO HELP For any questions or queries regarding your Seating Matters chair please contact: contact@seatingmatters.com...
  • Page 18 • Contact your local authority or governmental agency for the regulations that apply in your area. • If you wish to have Seating Matters recycle your product and your behalf, you are welcome to return the product to our company.
  • Page 19 MILANO™ Instruction Manual...
  • Page 20 VIEW OUR FULL RANGE OF CHAIRS & ACCESSORIES ONLINE WWW.SEATINGMATTERS.COM www.seatingmatters.com...
  • Page 21 MILANO™ Instruction Manual...
  • Page 22 Australia Canada N.Ireland & ROI 9/256 New Line Road 269 Maplegrove Rd 131 Carnamuff Road Dural Colborne Limavady NSW 2158 ON, Canada Northern Ireland Australia K0K 1S0 BT49 9JG Tel: +61 1300 001 050 Tel: +1 (905) 507 9007 Tel: +44 (0) 28 777 666 24 australia@seatingmatters.com canada@seatingmatters.com...
