Summary of Contents for Seating Matters Atlanta 2

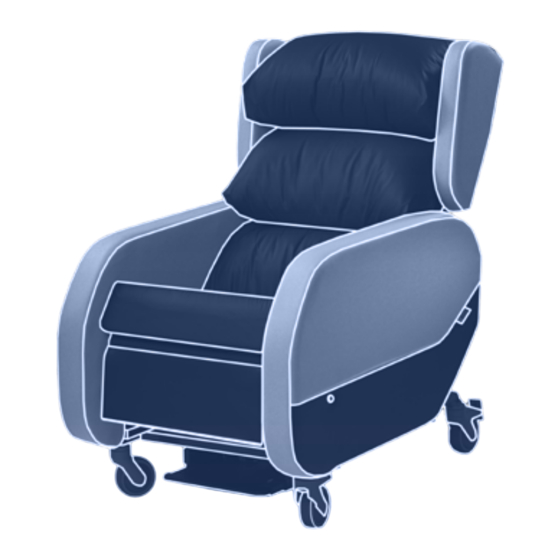

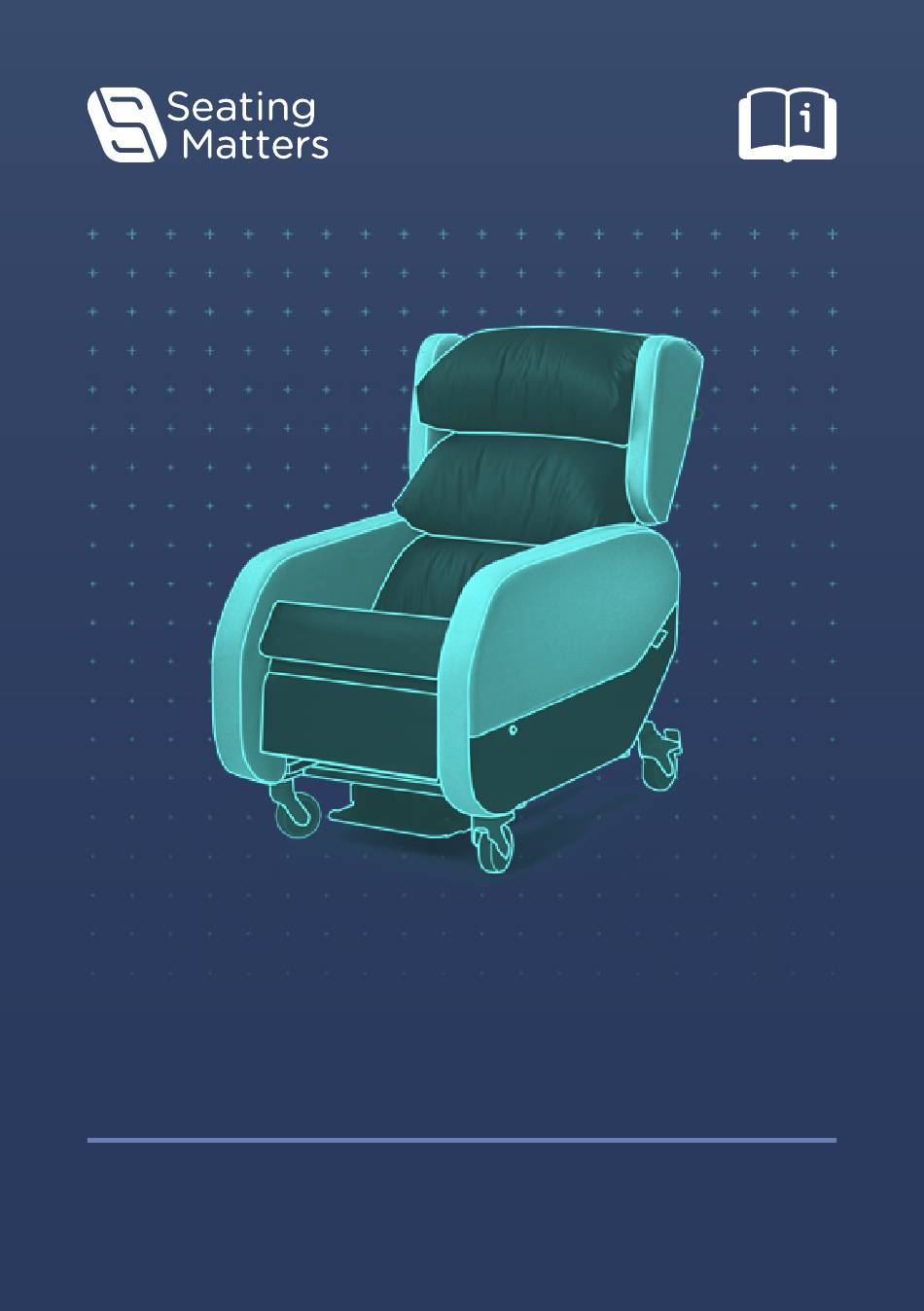

- Page 1 Atlanta 2 Instruction Manual...
- Page 2 Terminologies Patient The person sitting in the chair. User Competent person with responsibility for the persons sitting in the chair as well as the suitability of the equipment for the Patient. The User is responsible for checking the chair for faults during the course of its use. All instructions must be read and understood before the chair may be used.
-
Page 3: Table Of Contents
Contents Technical Specification Operating Instructions SynchroTIlt (Tilt and Recline) Seat Depth Adjustment Elevating Foot Stool Attachment Elevating Foot Stool Adjustment Arm Removal Sliding Footplate Footplate Height Adjustment (Calfpad Configuration) Footplate Angle Adjustment (Calfpad Configuration) Calfpad Angle Adjustment (Calfpad Configuration) Seat Cushion Chair Movement Cleaning Instructions Safety Instructions... -
Page 4: Technical Specification
Atlanta 2 Technical Specification with Sliding Footplate Elevating Foot Stool with Calfpad & Height Adjustable Footplate Height Adjustable Footplate... - Page 5 Basic Dimensions A Overall Height 1070mm* (42") B Back Height 730mm (29") Measurements in inches are approximated. C Seat Height 500mm* (20") D Min Length (Sliding Footplate) 890mm (35") E Max Length (Sliding Footplate) 1390mm (55") F Min Length (Adj. Footplate) 950mm (37.5") G Max Length (Adj.
-
Page 6: Synchrotilt Tm (Tilt And Recline)
To adjust the tilt and recline angle of the chair (fig.1). The tilt and recline functions are integrated to work together on the Atlanta 2. From the back of the chair, place both hands on the push handle and locate the right release lever (fig. -
Page 7: Seat Depth Adjustment
Atlanta 2 Seat Depth Adjustment To adjust the seat depth of the chair (fig.2). From the front of the chair, reach under the seat base and locate the yellow thumb screws on the left and right hand sides of the calf pad. Loosen these thumb screws by turning them anti-clockwise (fig.2a). -
Page 8: Elevating Foot Stool Attachment
Atlanta 2 Elevating Foot Stool Attachment To attach the Elevating Foot Stool to the chair (fig.3). Position the Elevating Foot Stool to the front of the chair (fig.3a) and securely fasten the buckle attachments on both sides of the chair (fig.3b). -
Page 9: Elevating Foot Stool Adjustment
Atlanta 2 Elevating Foot Stool Adjustment To adjust the angle of the Elevating Foot Stool (fig.4). From the front of the chair, reach under the Elevating Foot Stool and locate the manual lever (fig.4a). With the lever engaged and one hand placed on the... -
Page 10: Arm Removal
Atlanta 2 Arm Removal To remove the arms (fig.5). From the front of the chair, reach under the arm, locate and loosen the two bolts shown using a 5mm allen key (fig.5a) on the same side as the arm you will be removing. -
Page 11: Sliding Footplate
Atlanta 2 Sliding Footplate To use the Sliding Footplate (fig.6). From the front of the chair, pull the Sliding Footplate forward until it stops (fig.6a) and allow the feet to rest on it (fig.6b). At no point should anyone stand or sit on the Sliding Footplate. -
Page 12: Footplate Height Adjustment (Calfpad Configuration)
Atlanta 2 Footplate Height Adjustment (Calfpad Configuration) To adjust the seat to footplate height of the chair (fig.7). From the front of the chair, and with both hands, locate the two spring plungers at either side of the Calfpad (fig.7a). Pull both spring plungers outward at the same time and move the Height Adjustable Footplate to the required position before releasing. -
Page 13: Footplate Angle Adjustment (Calfpad Configuration)
Atlanta 2 Footplate Angle Adjustment (Calfpad Configuration) To adjust the angle of the footplate (fig.8). Some tools are required to carry out this adjustment (fig.8a). Using a 4mm allen key and 10mm spanner, loosen and remove the fixing bolt at either side of the footplate pivot (fig.8a). -
Page 14: Calfpad Angle Adjustment (Calfpad Configuration)
Atlanta 2 Calfpad Angle Adjustment (Calfpad Configuration) To adjust the angle of the calfpad (fig.9). Some tools are required to carry out this adjustment (fig.9a). Using a 4mm allen key and 10mm spanner, loosen and remove the fixing bolt at either side of the calfpad pivot (fig.9a). -
Page 15: Seat Cushion
(fig. 1 0a) (fig. 1 0b) Correct fitment of the Seating Matters cushion is important as the structure of the foam allows good immersion ONLY when fitted as instructed above. -
Page 16: Chair Movement
Atlanta 2 Chair Movement Directional Lock Castor For control of direction and manoeuvrability while pushing the chair (fig.11c). The directional lock castor is located on the front left side of the chair (fig. 1 1). To engage the directional lock castor simply press the green pedal with your foot (fig. - Page 17 Atlanta 2 Chair Movement Braking Castors To lock the chair in position (fig.12c). Both rear castors on the chair are total lock castors (fig. 1 2). When engaged, the swivel and rotation of the castor will be locked. To engage the braking castor simply press the pedal with your foot until it clicks into place (fig.
-
Page 18: Cleaning Instructions
Vinyl Cleaning Instructions Dartex Cleaning & Maintenance of Upholstery Your Seating Matters chair is upholstered with two distinct materials, Vinyl and Dartex multi-stretch material. See image above for how to identify these on your chair. Properties Cleaning Vinyl Superficial dirt may be removed by wiping... -
Page 19: Safety Instructions
Patient has a period out of the chair after prolonged sitting to raise tissue Please call your Seating Matters provider if you have oxygenation levels. Although the chair offers any questions on these points. -
Page 20: Maintenance And Servicing
Maintenance & Servicing Regularly servicing your Seating Matters chair will prevent untimely and inconvenient breakdowns, reduce repair costs and extend the chair's working life. Damage to the chair can also cause excess strain for the User and Patient. Important Monthly... -
Page 21: Recycling Policy
Recycling Policy Seating Matters are committed to reducing waste and improving our care for the environment. Where possible we have manufactured our chairs with recyclable materials. Guidance on recycling can be found below. The WEEE Directive Plastic Components The WEEE Directive, 2012/19/EC, urges producers of... -
Page 22: Warranty
(c) Metal back rest frame. 7 Years Atlanta (d) Armrest brackets. Monaco (e) Cracks or tears in metal work. Atlanta 2 (f) Leg rest linkages. Phoenix 2 & Sorrento 2 (g) All mounting points for gas struts and electric actuators. Milano 3 Years (h) All metal fixings and hinges. -
Page 23: Intellectual Property
Intellectual Property Seating Matters are at the forefront of seating research and design, therefore we take the protection of our intellectual property very seriously and have our designs, patents and trademarks protected in many jurisdictions throughout the world. The Seating Matters Trademark is Patent Pending No. - Page 24 UK, Europe & N.America Australia 131 Carnamuff Road 9/256 New Line Road Limavady Dural Northern Ireland NSW 2158 BT49 9JG Australia +44 (0) 28 777 666 24 +61 1300 001 050 contact@seatingmatters.com australia@seatingmatters.com Printed July 2024...
