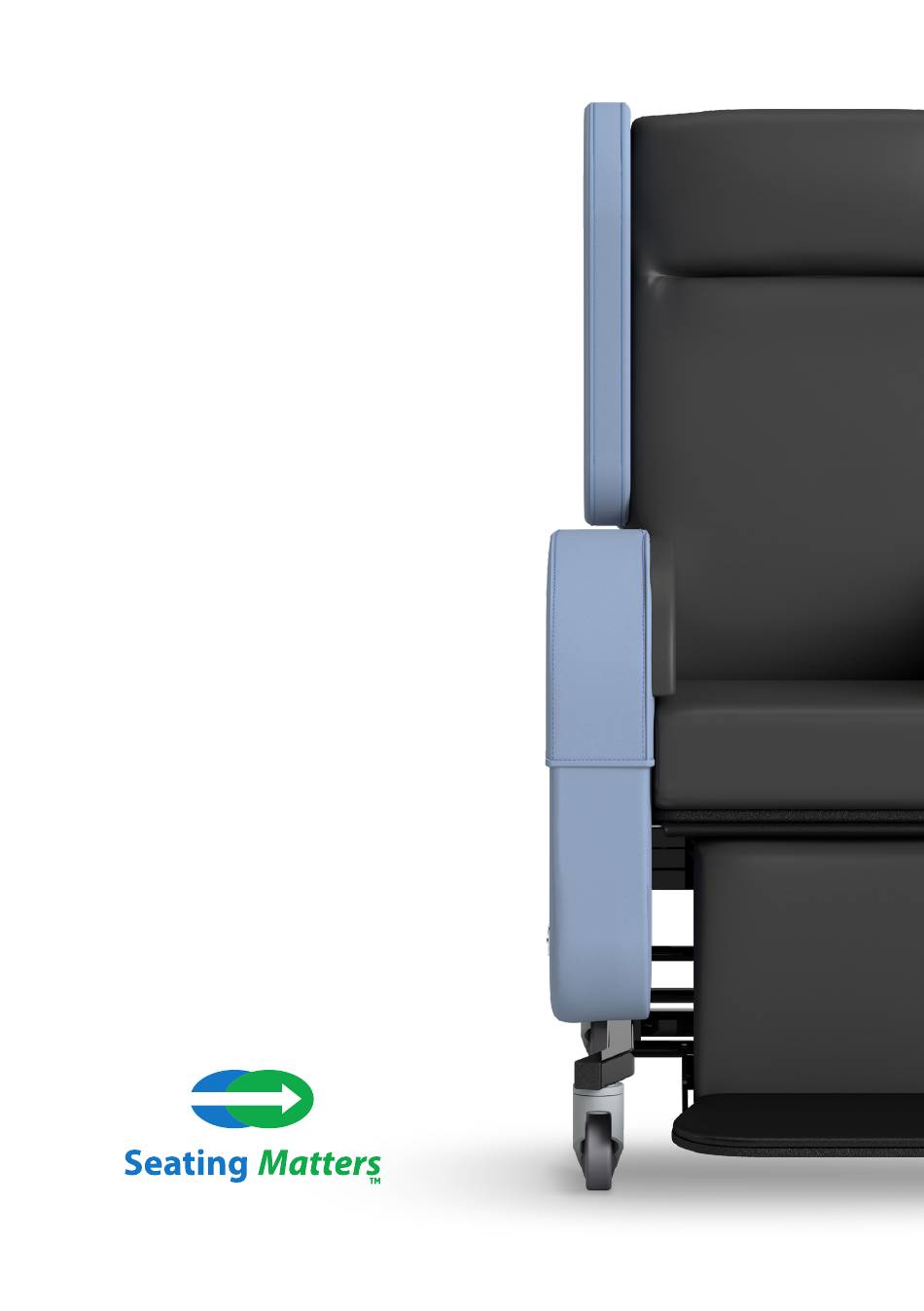

SORRENTO
Operation Manual &
Product Specification

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SORRENTO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seating Matters SORRENTO

  • Page 1 SORRENTO ™ Operation Manual & Product Specification...
  • Page 2 WANT TO GO STRAIGHT? Ensure to engage directional lock castor at front left of chair June 2019...
  • Page 3: Table Of Contents

    This Operation Manual is frequently updated to ensure safe use of your product. Visit www.seatingmatters.com where you can find a free copy of the most up to date version. CONTENTS Safety instructions Technical Specification User Guide and Operating Instructions Working Environment Seating Matters Recycling Policy Intellectual Property Maintenance and Servicing SORRENTO™ Instruction Manual...
  • Page 4: Safety Instructions

    2. The User must ensure that the product is in good condition before use (check all nuts and bolts are fastened, fabric in good condition etc). If there are any problems, these must be reported to your Seating Matters provider and corrected before the chair is put into use.
  • Page 5 9. Ensure there is more than one competent person there when making adjustments to ensure they are correct and safe for the Patient. 10. If in doubt as to any the adjustments, feel free to contact Seating Matters direct at technical@seatingmatters.com.
  • Page 6: Technical Specification

    Tilt in space From 5° forward, or anterior, tilt to 30° or 45° backward tilt (dependent on chair model). Chair weight unloaded is 62 Kg/136.68 lb/9.7 Stone. Chair user weight limit is 159 Kg/364 lb/25 Stone SORRENTO™ Instruction Manual...
  • Page 7: User Guide And Operating Instructions

    This includes lateral supports, arm adjustments, seat adjustment and foot plate. Please call your Seating Matters provider if you have any questions on these points. This product should not be lifted at any time unless by competent persons trained in such manual handling.
  • Page 8 Patient then stand behind the chair with two hands, firmly hold the push handle while closing the release lever. (fig.2b) Tilt the chair to the required position then let go of the Tilt in Space (fig.2b) SORRENTO™ Instruction Manual...
  • Page 9 45 degrees under the seat. (fig.3 & fig.3b) Adjust the seat to the required depth by carefully pulling the seat out. Tighten the screws again to ensure the seat depth doesn’t unintentionally change. (fig.3b) Seat belt loop Arm removal (fig.3a) SORRENTO™ Instruction Manual...
  • Page 10 There are also four options for seat depth Arm removal labelled A,B,C and D. (fig.3c) These adjustments should only be made by a Seating Matters approved provider. 450-480mm 430-460mm 410-440mm Seat depth (fig.3b) 390-420mm 480-500mm available on request • removal: To remove the arms, loosen the thumb screws behind and in front of the arm (fig.3a,b &...
  • Page 11 (fig.4a) When the spring plungers are released, they will catch into the nearest hole immediately below the pins. The foot plate can also be (fig.4b) Footplate angle adjustment removed by dropping it off the bottom of the chair. SORRENTO™ Instruction Manual...
  • Page 12 • Seat cushion: The seat cushion on the SORRENTO™ is a waterproof, pressure redistributing breathable medium foam cushion providing pressure management and comfort. The seat cushion will have non-slip material on one face and a zip closure on one side.
  • Page 13 If your chair is a fully motorised model the Tilt In Space, Leg rest and Back angle recline are controlled by the electric handset simply push the button to operate the desired function. Back Up Back Down Tilt Up Tilt Down Leg Rest Up Leg Rest Down SORRENTO™ Instruction Manual...
  • Page 14 Do not operate the chair during charging. Charging Socket Charger connected to mains (fig.5) Light Colour Indication No Light No Power Orange Plugged in, charging Green Plugged in, fully charged Orange Light Green Light Buzzer SORRENTO™ Instruction Manual...
  • Page 15: Working Environment

    Failure to do this may result in damage to the polyurethane coating, react with the chair frame, or negate the biocompatibility results of the fabric. It is essential that articles be thoroughly dried after all cleaning procedures and before storage. SORRENTO™ Instruction Manual...
  • Page 16: Seating Matters Recycling Policy

    • Contact your local authority or governmental agency for the regulations that apply in your area. • If you wish to have Seating Matters recycle your product and your behalf, you are welcome to return the product to our company.
  • Page 17 93/42/EEC and conforms to BS ISO 7176 at medium hazard. Regional Variations The device referred to as a "Sorrento™" is a Seating Matters product category and the information included in this document reflects common features of this group of products. In some regions of the world, we supply product design variations of equivalent function and ease-of-use but with alternative specifications or reinforcements.
  • Page 18: Intellectual Property

    Parts can only be changed by service persons trained in Seating Matters products and use only Seating Matters parts. We recommend that your chair is serviced every year by a Seating Matters approved provider for any running repairs and maintenance.
  • Page 19 Check that all nuts and bolts are present. Check that all nuts and bolts are secure. Note: If nuts or bolts need attention, contact your Seating Matters approved provider IMMEDIATELY DO NOT USE the chair until it has been serviced.
  • Page 21 WE ARE HERE TO HELP For any questions or queries regarding your Seating Matters chair please contact: contact@seatingmatters.com...
  • Page 22 VIEW OUR FULL RANGE OF CHAIRS & ACCESSORIES ONLINE WWW.SEATINGMATTERS.COM...
  • Page 24 Australia Canada N.Ireland & ROI 2/6 St James Place 269 Maplegrove Rd 131 Carnamuff Road Seven Hills, Colborne Limavady NSW 2147 ON, Canada Northern Ireland Australia K0K 1S0 BT49 9JG Tel: +61 1300 001 050 Tel: +1 (905) 507 9007 Tel: +44 (0) 28 777 666 24 australia@seatingmatters.com...
