Norton Clipper CS1-500 P14 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

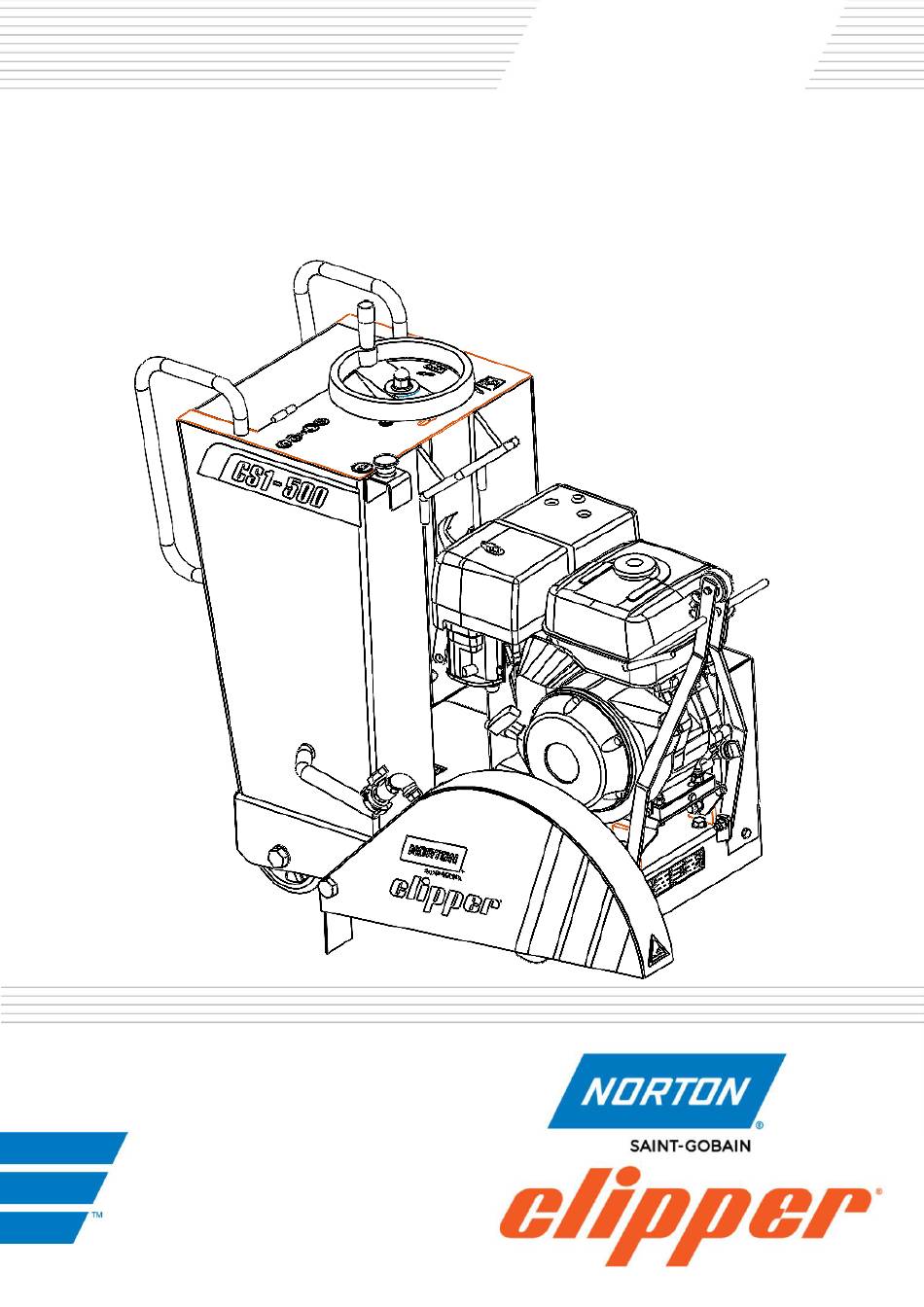

CS1 – 500 P14
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS1-500 P14 and is the answer not in the manual?

Questions and answers

Related Manuals for Norton Clipper CS1-500 P14

Summary of Contents for Norton Clipper CS1-500 P14

  • Page 1 CS1 – 500 P14 OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 VERS.2022.10.20 CS1-500 P14_MAN_EN...

  • Page 3: Declaration Of Conformity

    Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE Declares that this product: CS1-500 P14 Vanguard 70184632544 « Floor saw »: Code : is in conformity with the following Directives : ...
  • Page 4 Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: CS1-500 P14 Vanguard 70184632544 « Floor saw »: Code : is in conformity with the following standard: ...

  • Page 5: Table Of Contents

    VERS.2022.10.20 CS1-500 P14_MAN_EN CS1-500 P14 OPERATING INSTRUCTIONS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 GENERAL DESCRIPTION OF THE CS1-500 2.1 Short description 2.2 Layout 2.3 Technical data 2.4 Statement regarding the vibration emission 2.5 Statement regarding noise emission...

  • Page 6: Basic Safety Instructions

    VERS.2022.10.20 CS1-500 P14_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The CS1-500 is exclusively designed for the cutting of floors made of asphalt, green and cured concrete (reinforced or not) as well as of industrial cement. Uses other than the manufacturer's instructions shall be considered as contravening the regulations.

  • Page 7: Machine Plate

    VERS.2022.10.20 CS1-500 P14_MAN_EN Never move the machine with the blade Rotation direction of the blade running idle. Emergency Stop 1.2 Machine plate Important data can be found on the following plate located on the machine: Year of Ø Maximum Machine Code production blade Ø...

  • Page 8: Safety Instructions For Particular Operating Phases

    VERS.2022.10.20 CS1-500 P14_MAN_EN 1.3 Safety instructions for particular operating phases Before commencing work  Before commencing work, make yourself familiar with the working environment at the place of use. The working environment includes: obstacles in the area of work and manoeuvre, the firmness of the floor, necessary protection at the site relating to public thoroughfares and the availability of help in the event of accidents.

  • Page 9: General Description Of The Cs1-500

    VERS.2022.10.20 CS1-500 P14_MAN_EN 2 GENERAL DESCRIPTION OF THE CS1-500 Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives S.A. who shall confirm that the machine is still in conformity with the safety regulations.
  • Page 10 VERS.2022.10.20 CS1-500 P14_MAN_EN Made of jig welded open profile steel, the CS1-500 is stable but at the same time, easily transportable. The one-piece blade guard (1) fully protects the operator and his working environment. It is firmly fixed to the main frame but can be opened by rotation to change blades. A manually operated hand wheel mechanism (2) enables graduated depth setting.
  • Page 11 VERS.2022.10.20 CS1-500 P14_MAN_EN The parking brake (9) immobilizes and secures the machine when it is not in use. The depth indicator (10) lets you know at what depth the user is cutting.

  • Page 12: Technical Data

    VERS.2022.10.20 CS1-500 P14_MAN_EN 2.3 Technical data Engine Vanguard 400, 4 strokes, 1 cylinder, 14HP (10,4kW) Fuel Automotive unleaded gasoline Vanguard 4-Stroke, or equivalent high detergent, premium quality motor oil certified to meet or exceed U.S. automobile manufacturer’s requirement for service classification SG, SF. (SG, SF designated on the oil container).

  • Page 13: Statement Regarding The Vibration Emission

    Machine Measured vibration Uncertainty K Tool used Model / code emission value a m/s Model / code CS1-500 P14 Vanguard 4.22 Clipper Super Beton Evo 70184632544  Values determined according to procedure described in annex F of EN 13862 ...

  • Page 14: Statement Regarding Noise Emission

    (Sound level (Sound power level Pressure level EN ISO 11201 NF EN ISO 3744 NF EN ISO 3744) EN ISO 11201) CS1-500 P14 Vanguard 89 dB(A) 2.5 dB(A) 105 dB(A) 4 dB(A) 70184632544  Values determined using the procedure described in the standard EN 13862.

  • Page 15: Assembly And Commissioning

    VERS.2022.10.20 CS1-500 P14_MAN_EN 3 ASSEMBLY AND COMMISSIONING Before beginning the work with the CS1-500, you have to assemble some parts. 3.1 Tool assembly Only use NORTON blades with the CS1-500. A blade with a maximum diameter of 500 mm can be fitted. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed.

  • Page 16: Starting The Machine

    VERS.2022.10.20 CS1-500 P14_MAN_EN 3.3 Starting the machine Make sure the blade is raised clear up the ground before starting the machine. Turn the fuel valve to the ON position. Move the choke lever to the CLOSED position. NOTE: do not use the choke if the engine is warm or the air temperature is high.

  • Page 17: Operating The Cs1-500

    VERS.2022.10.20 CS1-500 P14_MAN_EN 4 OPERATING THE CS1-500 4.1 Site of work Before you start working, please check the following points:  Remove from the site anything, which might hinder the working procedure.  Make sure the site is sufficiently well lit. ...

  • Page 18: Transport And Storing

    VERS.2022.10.20 CS1-500 P14_MAN_EN 5 TRANSPORT AND STORING Take the following measures in order to transport and store the CS1-500 securely. 5.1 Securing for transport Before transporting the machine:  Remove the blade.  Empty the water tank.  Raise the guide-a-cut in its upright position. ...

  • Page 19: Maintenance And Service

    VERS.2022.10.20 CS1-500 P14_MAN_EN 6 MAINTENANCE AND SERVICE ATTENTION: to perform maintenance on the machine, always switch it off. Always wear a face mask and safety goggles while performing the maintenance of machine. 6.1 Maintenance of the machine To ensure a long-term quality from the cutting with the CS1-500, please follow the maintenance plan below: Regular service period Perform at every indicated period...

  • Page 20: Maintenance Of The Engine

    VERS.2022.10.20 CS1-500 P14_MAN_EN 6.2 Maintenance of the engine Regular service period Perform at every indicated month or operating hour interval, whichever comes first  Check level Engine oil Change Check Air cleaner filter Clean Fuel strainer cup Clean Spark plug Check-Clean Fuel line Check (Replace if necessary)
  • Page 21 VERS.2022.10.20 CS1-500 P14_MAN_EN Air cleaner The CS1-500 has a dual type filter. To service the air cleaner filter, follow these instructions:  Remove the nut, air cleaner cover and wing nut.  Remove the pre air cleaner elements and separate them. ...
  • Page 22 VERS.2022.10.20 CS1-500 P14_MAN_EN Spark plug To service the spark plug, follow these instructions:  Visually inspect the spark plug. Discard the plug if the insulator is cracked or chipped.  Remove carbon or other deposits with a stiff wire brush. ...

  • Page 23: Faults: Causes And Cures

    VERS.2022.10.20 CS1-500 P14_MAN_EN 7 FAULTS: CAUSES AND CURES 7.1 Fault-finding procedures Should any fault occur during the use of the machine, turn it off. Let only qualified staff make any intervention other than the one described in the previous section. 7.2 Trouble-shooting guide Trouble Possible source...

  • Page 24: Customer Service

    VERS.2022.10.20 CS1-500 P14_MAN_EN Customer service When ordering spare parts, please mention:  The serial number (7 digits).  The code of the part.  The exact denomination.  The number of parts required.  The delivery address.  Please indicate clearly the means of transportation required such as "express" or "by air". Without specific instructions, we will forward the parts through the means which seem appropriate to us --- but which is not always the quickest way.

  • Page 25: Spare Parts

    For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need. Guarantee can be claimed and technical support obtained from your local distributor where...
  • Page 26 VERS.2022.10.20 CS1-500 P14_MAN_EN...
  • Page 27 VERS.2022.10.20 CS1-500 P14_MAN_EN...
  • Page 28 VERS.2022.10.20 CS1-500 P14_MAN_EN...
