User Manual
Prep Station
PS1000HR, PS1400HR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prep Station PS1000HR and is the answer not in the manual?

Questions and answers

Related Manuals for Foster Prep Station PS1000HR

Summary of Contents for Foster Prep Station PS1000HR

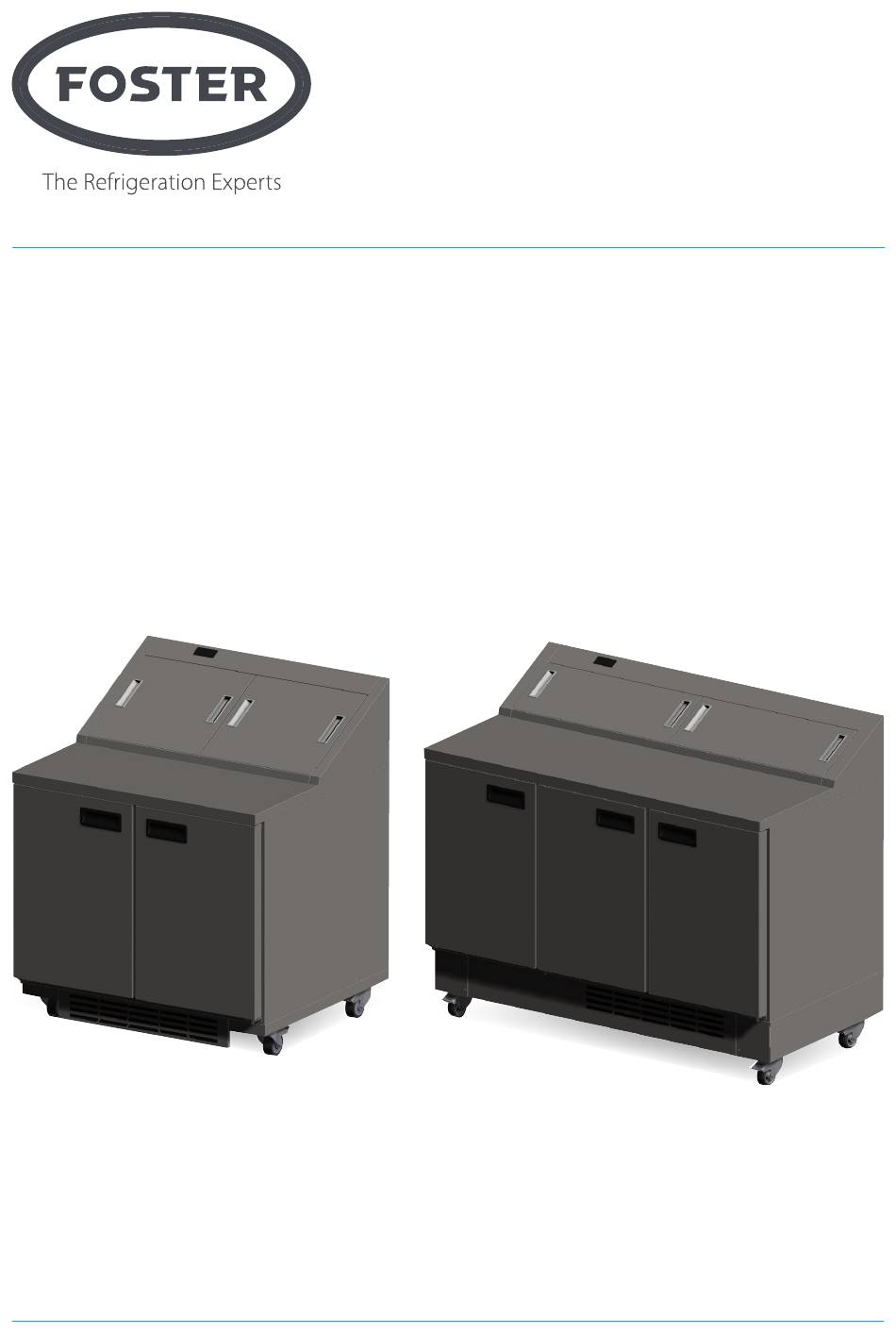

  • Page 1 User Manual Prep Station PS1000HR, PS1400HR...
  • Page 2 Four Steps to extend the life of your appliance Getting to know your new Foster appliance Installation Using the appliance Maintenance www.fosterrefrigerator.com...
  • Page 3 All installations must conform to local and municipal regulations and directives. In case of doubt contact your Foster authorised distributor or the Foster Technical Department. The information contained in this manual is current at the time of publication and is subject to change without notice.

  • Page 4: Climate Class

    Climate Class Climate class indicated on the serial plate shows the ambient temperature & humidity at which this appliance has been tested, for the purposes of establishing values in line with European standards. Climate Class Temperature Relative humidity 30˚C 40˚C Electrical Safety This equipment shall be connected to an electrical supply protected by a Residual Current Device (RCD).

  • Page 5: Disposal Requirements

    Disposal Requirements This appliance contains components and materials which can be harmful to the environment if not disposed of correctly. Disposal of this appliance should be carried out by a suitably licensed waste contractor in accordance with national laws and regulations which may be in force at the time. PS1000 &...

  • Page 6: Installation

    Installation Removal of packaging Prior to carrying out this operation please ensure that these instructions have been read, understood and that the necessary personnel and tools are available to ensure compliance with the instructions. Tools required: A sharp retractable knife or scissors Pliers or cutters suitable to cut hard plastic The PS1000HR weighs up to 130kg when empty and require at least 2 people to carry out these instructions.
  • Page 7 Remove outer plastic and cardboard. Take care not to damage the ppliance with any sharp objects used to remove the packaging. Position the pallet against a flat surface of a similar height to the pallet. Ensure that castors are locked and the doors are taped closed to prevent opening.
  • Page 8 Support the appliance on the front, cut the support straps on both sides and rear then unlock the castors. Carefully slide the appliance off the pallet onto the adjacent level surface. If the appliance is not being moved straight to its final location lock the castors once more. Ensure that all packaging is disposed of in an appropriate way in accordance with any local regulations for waste disposal.
  • Page 9 Start-Up and Test Sequence After unpacking, clean (cleaning directions supplied within this manual) and allow the appliance to stand for 60 minutes before turning on. Ensure the appliance is situated on a firm, level surface, away from both hot and cold air sources, as this will affect its performance.

  • Page 10: Using The Appliance

    Using the appliance Display Icons and Buttons +1.5 Icon 1 Icon 2 °C Icon 3 Icon 4 Icon 5 Button 4 Button 1 Button 2 Button 3 Icon Button Alarm Warning Info & Set Point Thermostat Output Manual Defrost & Decrease Active Value Fan Output Active...

  • Page 11: Set Point

    To amend the Set Point press and hold button 1, then while keeping button 1 pressed use buttons 2 and 3 to set the desired value. If the Set Point cannot be adjusted to the value required please contact your authorised Foster dealer for advice When button 1 is released the new value will be stored automatically.
  • Page 12 Shelf fitting PS1000HR X 4 PS1000HR X 16 PS1400HR X 6 PS1400HR X 24 Insert top of clip into slot as desired shelf position Compress clip to insert into lower slot www.fosterrefrigerator.com...

  • Page 13: Cleaning And Maintenance

    Maintenance Cleaning and Maintenance IMPORTANT: This appliance is heavy. When moving the appliance care should be taken and correct safe practices followed. Prior to cleaning ensure that the correct PPE is available and utilised and that the appliance is switched off and disconnected from the power supply.
  • Page 14 Cleaning Condenser Air Grill Use a soft brush or vacuum to remove loose dust and dirt from the Condenser Air Grill. Condenser Regular cleaning of the condenser (located behind the Condenser Air Grill) increases energy efficiency and prolongs the life of your appliance. Never use a wire brush, abrasive or corrosive materials to clean the condenser.

  • Page 15: Regular Maintenance

    The alarm will reset if the temperature falls to a normal level. If this does not happen please contact your authorised dealer or Foster Service.
  • Page 16 If the reason for the malfunction cannot be identified, disconnect the electrical supply from the unit and contact your authorised dealer or Foster Service. When requesting a service call, please quote the model and serial number which can be found on the inside of the appliance on the right hand wall and begins with ‘E’ .
  • Page 17 Notes PS1000 & PS1400 User Manual...
  • Page 18 Notes www.fosterrefrigerator.com...
  • Page 19 Notes PS1000 & PS1400 User Manual...
  • Page 20 By Appointment to Her Majesty Queen Elizabeth II Suppliers of Commercial Refrigeration Foster Refrigerator, King’s Lynn For more information: For service and spares: +44 (0) 1553 698485 For service +44 (0) 1553 780333 regional@foster-gamko.com service@foster-gamko.com fosterrefrigerator.com For parts +44 (0) 1553 780300 parts@foster-gamko.com...

This manual is also suitable for:

Prep station ps1400hr
