Foster EcoPro G2 Series Original Service Manual

Cabinets, fd1-11 controller & display
Hide thumbs Also See for EcoPro G2 Series:
Table of Contents

Advertisement

Quick Links

EcoPro G2 Cabinets
FD1-11 Controller & Display
English
March 2012 Version 1
ISO 9001
ISO 14001
Call: +44 (0)843 216 8800
Fax: +44 (0)843 216 4700
www.fosterrefrigerator.co.uk
By Appointment to
Her Majesty Queen Elizabeth II
Suppliers of Commercial Refrigeration
Foster Refrigerator, King's Lynn
A Division of ITW Ltd
Foster Refrigerator,
Oldmedow Road,
King's Lynn,
Norfolk, PE30 4JU
United Kingdom
Email: support@foster-uk.com
0771
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EcoPro G2 Series and is the answer not in the manual?

Questions and answers

peter
February 13, 2025

PF fault won’t clear

1
1 comments:
Mr. Anderson
May 14, 2025

A PF fault on a Foster G2 Series unit means there has been a mains power failure that affected the internal air temperature (only if the unit was not in standby mode). When mains power is restored, the cabinet continues to operate and adjust the temperature as needed. The PF warning will sound and display until the alarm button is pressed and released to cancel it. It is recommended to inspect the contents of the unit after a PF fault.

This answer is automatically generated

0
Rakib Hassan
May 13, 2025

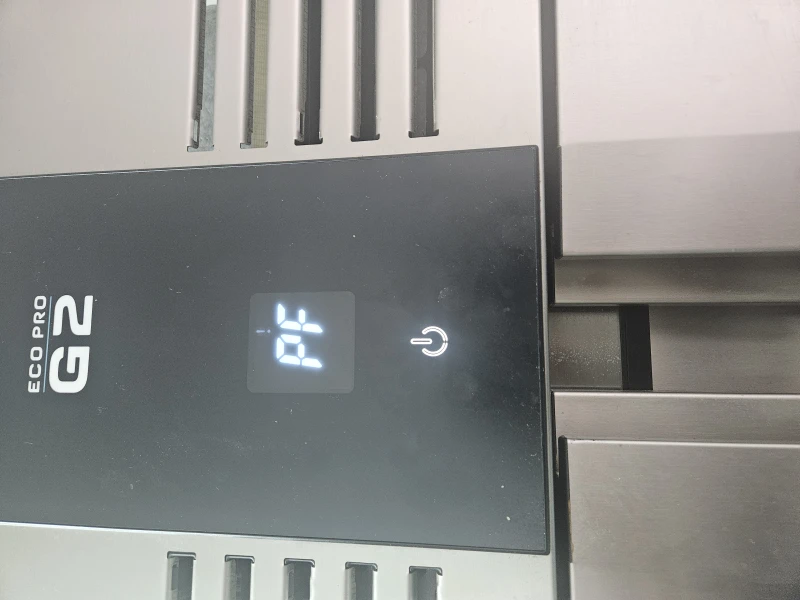

Display message showing PF and alarm with sound. Tried to follow the troubleshoot options but no joy. Power button also doest response after pressing it. How can we fix the issue?

User image 68234c2d49aaa
0
1 comments:
Mr. Anderson
May 21, 2025

To fix the PF (Power Failure) alarm and sound issue on a Foster G2 Series unit when the power button is unresponsive:

1. Ensure the mains power is restored and the plug is securely connected.
2. Confirm the unit is not in standby mode.
3. Check the system controller is illuminated.
4. Make sure the fuse in the fuse box is intact.
5. Inspect the unit's placement to ensure no external hot or cold sources are affecting it.
6. Clean the condenser to ensure proper function.
7. Press and release the alarm button to cancel the PF alarm.

If the power button remains unresponsive after these checks, inspect for electrical faults or contact a technician.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Foster EcoPro G2 Series

Summary of Contents for Foster EcoPro G2 Series

  • Page 1 By Appointment to Her Majesty Queen Elizabeth II Suppliers of Commercial Refrigeration Foster Refrigerator, King’s Lynn EcoPro G2 Cabinets FD1-11 Controller & Display English March 2012 Version 1 A Division of ITW Ltd Foster Refrigerator, Oldmedow Road, King’s Lynn, Norfolk, PE30 4JU...
  • Page 2 Manual Information & Health & Safety Notes Environmental Management Policy Disposal Requirements & Electrical Safety EcoPro G2 Cabinet Description Display Icons & Switches Start up, Standby, User Adjustments Temperature Sensitivity, Key Security, Light Function, Downloading, Defrost Function & Reduced Energy Control. FD1-11 Controller Connection Drawing, Technical Data &...
  • Page 3 Product Support and Installation Contractors. Foster Refrigerator recognises that its activities, products and services can have an adverse impact upon the environment. The organisation is committed to implementing systems and controls to manage, reduce and eliminate its adverse environmental impacts wherever possible, and has formulated an Environmental Policy outlining our core aims.

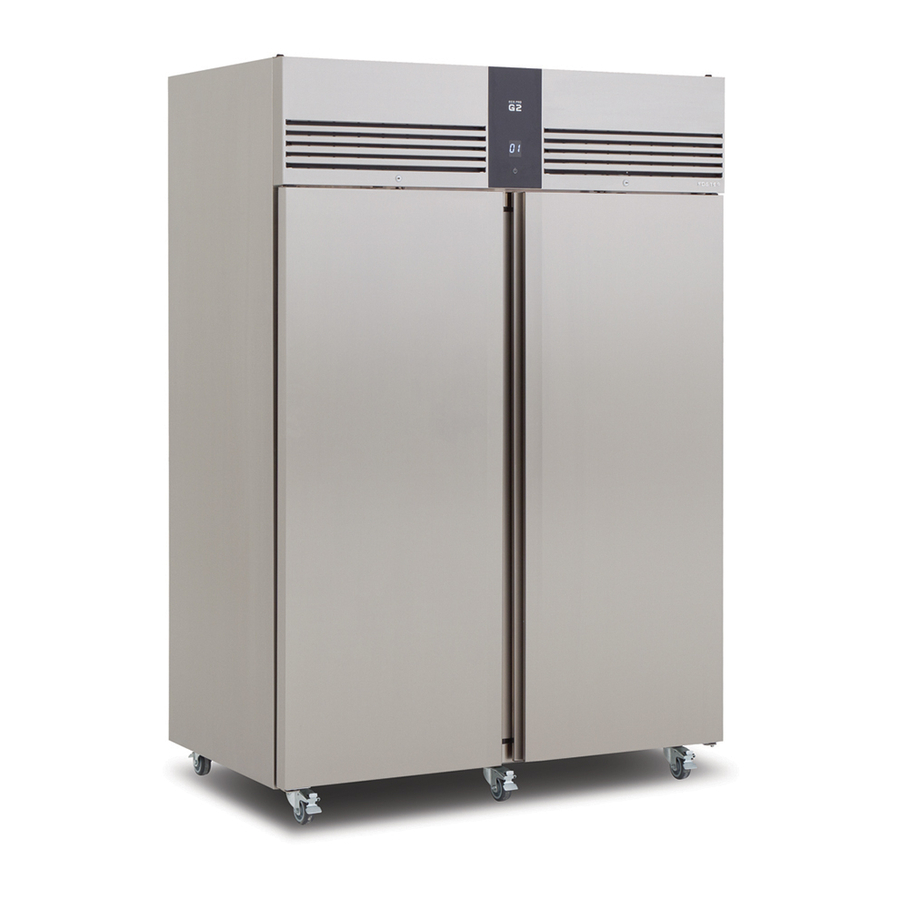

  • Page 4 The EcoPro G2 range comes as a Full Gastronorm format in a variety of capacities and temperatures. A standard unit comes with 2/1 shelves (3 with a single model, 6 with a double model). The fish model comes fitted with fixed racking to take 7 fish boxes (198kgs) as standard whereas the wine version comes with a racking assembly that holds either 140x75cl bottles (for a single model) or 280 x 75cl (for a double model).
  • Page 5 Initial Set Up After unpacking clean and allow the cabinet to stand for 2 hours before turning on. Ensure the cabinet is situated where neither hot nor cold air sources will affect its performance. Make sure that a minimum clearance of 310mm above and 50mm around the cabinet is available for ventilation and effective operation.
  • Page 6 PC and the backlight of the switch will flash. On completion the switch will return to constant state of illumination. All Foster G2 cabinets are fitted with a fully automatic defrost system to ensure that the evaporator coil remains free from ice during normal use. Melt-water is evaporated using either the heat from the refrigeration system or a separate electric heater (dependent upon model and configuration).
  • Page 7 Power Supply Measurement Range FD1-11 -50…120°C, -55…240°F -50 / -9.9…19.9 / 80°C (NTC 10K Only) 230Vac±10%, 50/60Hz, Operating 3.2W, Standby 0.9W Relay Output Measurement Accuracy Compressor - 16(8) A 240Vac <0.5°C within the measurement range Defrost - 16(4) A 240Vac Evap.
  • Page 8 EcoPro G2 FD1-11 Controller Default Parameter Values Para Cond Range Description FD1-11 -50 ... SH Minimum limit for ‘SP’ setting °C SL … 90° Maximum limit for ‘SP’ setting °C SL ... SH Temperature set point to be achieved °C RF - HE Refrigeration or Heating control mode Flag...
  • Page 9 Defrost display mode: Real (actual) air temperature Last temperature display before start of Func. defrost The current set point value Display will show ‘dp’. Defrost display delay period. Time ‘DD’ 0 … 60min is shown following defrost termination. Fans in defrost: Fans run during defrost Flag Fans do not run during defrost...
  • Page 10 Alarm Probe: Air temperature probe used for alarm detection Evaporator temperature probe used for Func. alarm detection (if ‘T2’ = ‘YS’). Third temperature probe used for alarm detection (if ‘D2’ = ‘T3’). 0 … 90min Delay before alarm temperature warning Delay before door open alarm warning 0 …...
  • Page 11 Evaporator fan control during ‘Reduced Energy’ operation: Fan(s) run continuously Temperature based control. When compressor is on, fans are on. When compressor is off, fans run as long as Func. temperature difference Te-Ta > ‘FT’. Fans on again with ‘FH’. Time based control.
  • Page 12 T3 probe function (only when ‘D2’ = ‘T3’): Flag T3 probe temperature displayed Condenser temperature measurement T3 probe temperature offset (only when -9.9 … 9.9°C °K ‘D2’ = ‘T3’): Light control mode (if ‘R3’ = ‘LM’): Light control mode disabled (always off) Light output operation is activated/deactivate by switch (L5 illuminated).
  • Page 13 Relay 4 operation: Output disabled (always off). Control of evaporator fan. Control of defrost heater/device (activated when ‘DY’ = ‘EL’ or ‘GS’), Output enabled for light control. Contacts open/close with ‘Standby’/’on’ Func. mode (‘SB’ = ‘1’) Contacts open when an alarm condition occurs Contacts close when an alarm condition occurs...
  • Page 22 Problem Possible Cause Solution Audible & Visual > Low temperature alarm > Cancel audible alarm and Alarms/Warnings investigate cause. > High temperature alarm > Cancel audible alarm and investigate cause. > T1 Air probe failure > Check and replace the air probe >...
  • Page 23 > Compressor motor has a winding > Measure ohmic resistance of open or shorted main and auxiliary winding using ohmmeter. Compare with correct values > Compressor stuck > Change compressor > Temperature control contacts are > Repair or replace the contacts open >...
  • Page 24 > Too many door openings > Advise user to decrease if possible > Excessive heat load placed in > Advise user not to put in cabinet products that are too hot. > The refrigerator has been > Check to see if condensation overcharged with the refrigerant or ice crystals have formed on the suction line.
  • Page 25 Extreme condensation inside > Controller is set at a very cold > Set the controller to a warmer the refrigerator position position & check to see if compressor stops as should. > The outside environment’s > This type of occurrence is relative humidity is very high caused by local climatic (over 75%)
  • Page 26 Foster European Operations France Foster Refrigerator France SA Tel: (33) 01 34 30 22 22. Fax: (33) 01 30 37 68 74. Email: info@foster-fr.com Germany Foster Refrigerator Gmbh, Tel: (49) 781 990 7840. Fax (49) 781 990 7844. Email: info@foster-gmbh.de...
