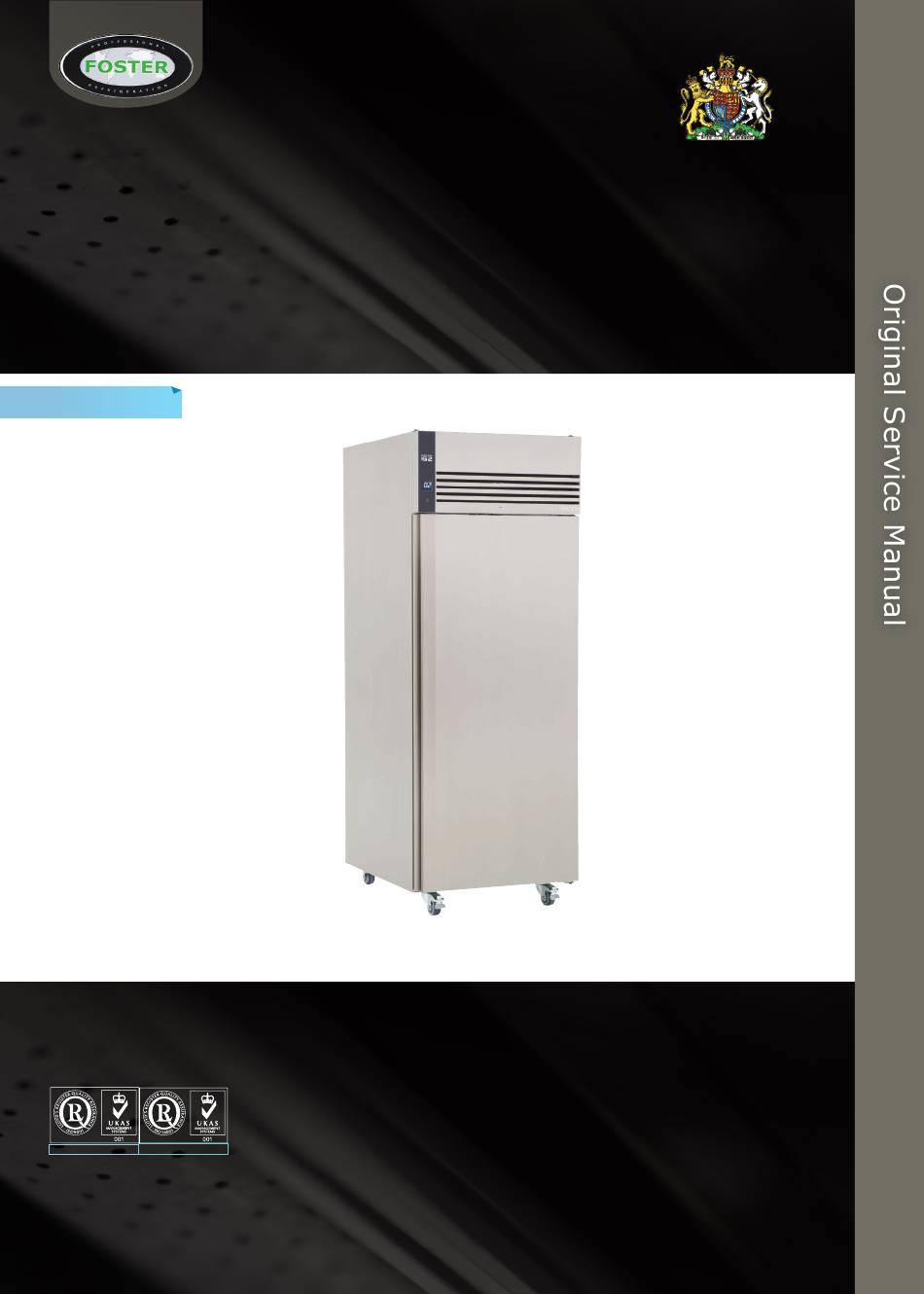

Foster EcoPro G2 EP700SL Original Service Manual
  1. Manuals
  2. Brands
  3. Foster Manuals
  4. Refrigerator
  5. EcoPro G2 EP700SL
  6. Original service manual

Foster EcoPro G2 EP700SL Original Service Manual

Controller & display fd1-14
Hide thumbs Also See for EcoPro G2 EP700SL:
Table of Contents

Advertisement

Quick Links

EcoPro G2 EP700SH & EP700SL
Controller & Display FD1-14
English
ISO 9001
ISO 14001
Call: +44 (0)1553 691 122
www.fosterrefrigerator.co.uk
By Appointment to
Her Majesty Queen Elizabeth II
Suppliers of Commercial Refrigeration
Foster Refrigerator,
King's Lynn
A Division of ITW Ltd
Foster Refrigerator
Oldmedow Road
King's Lynn
Norfolk, PE30 4JU
United Kingdom
Email: support@foster-gamko.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EcoPro G2 EP700SL and is the answer not in the manual?

Questions and answers

Related Manuals for Foster EcoPro G2 EP700SL

Summary of Contents for Foster EcoPro G2 EP700SL

  • Page 1 By Appointment to Her Majesty Queen Elizabeth II Suppliers of Commercial Refrigeration Foster Refrigerator, King’s Lynn EcoPro G2 EP700SH & EP700SL Controller & Display FD1-14 English A Division of ITW Ltd Foster Refrigerator Oldmedow Road King’s Lynn Norfolk, PE30 4JU...

  • Page 2: Table Of Contents

    English Contents Page Manual Information & Health & Safety Notes Environmental Management Policy Disposal Requirements & Electrical Safety Cabinet Description Controller Display Function Buttons Start Up & Operation, User Functions 4 to 5 FD2-10 Connection Drawing & Technical Data Service & Parameter Access & Definitions 7 to 10 Wiring Diagrams 11 to 12...

  • Page 3: Environmental Management Policy

    1. Ensure that wherever possible waste is removed from the client’s site, where arrangements are in place all waste should be returned to Foster Refrigerator’s premises. In certain circumstances waste may be disposed of on the client’s site; if permission is given, if the client has arrangements in place for the type of waste.

  • Page 4: Cabinet Description

    English EcoPro G2 Cabinet Description The EcoPro G2 range comes as a Full Gastronorm format in a variety of capacities and temperatures. A standard unit comes with 2/1 shelves (3 with a single model, 6 with a double model). The fish model comes fitted with fixed racking to take 7 fish boxes (198kgs) as standard whereas the wine version comes with a racking assembly that holds either 140x75cl bottles (for a single model) or 280 x 75cl (for a double model).
  • Page 5 English Start Up and Operation Initial Set Up After unpacking clean and allow the cabinet to stand for 2 hours before turning on. Ensure the cabinet is situated where neither hot nor cold air sources will affect its performance. Make sure that a minimum clearance of 310mm above and 50mm around the cabinet is available for ventilation and effective operation.

  • Page 6: Start Up & Operation, User Functions 4 To

    Defrost All Foster G2 cabinets are fitted with a fully automatic defrost system to ensure that the evaporator coil remains free from ice during normal use. Melt-water is evaporated using either the heat from the refrigeration system or a separate electric heater (dependent upon model and configuration).

  • Page 7: Fd2-10 Connection Drawing & Technical Data

    English FD1-11 Controller Connection Drawing FD1-11 Technical Data Power Supply Measurement Range FD1-11 -50…120°C, -55…240°F 230Vac±10%, -50 / -9.9…19.9 / 80°C (NTC 10K Only) 50/60Hz, Operating 3.2W, Standby 0.9W Measurement Accuracy Relay Output <0.50C within the measurement range Compressor - 16(8) A 240Vac Defrost - 16(4) A 240Vac CE (Reference norms) Evap.
  • Page 8 English FD1-11 Para Range Description EP700SH EP700SL Default -50 ... SH Minimum limit for ‘SP’ setting. ⁰C SL ... 90⁰ Maximum limit for ‘SP’ setting. ⁰C SL ... SH Temperature set point to be achieved. ⁰C RF ... HE Refrigeration or Heating control mode. Flag 1 ...
  • Page 9 English -50 ... 90⁰ Evaporator fan restart temperature following defrost (Only if ‘T2’ = ‘1’). 0 ... 90min Maximum evaporator fan stop period defrost (Only when ‘T1’ = ‘1’). Evaporator fan mode during thermostatic control: Fan(s) run continuously (subject to door & defrost). Func Temperature based control.
  • Page 10 English 1 ... 90min Minimum ‘non activity’ time for reduced energy mode. 1 ... 10⁰ Maximum temperature ‘addition’ for reduced energy mode Reduced energy mode temperature set point – differential above ‘SP’ 1 ... 50⁰ (refrigerating) below ‘SP’ (heating). 1 ... 10⁰ Reduced energy mode ‘off/on’...
  • Page 11 English Light control mode (if ‘R3’ = ‘LM’): Light control mode disabled (always off) Light output operation is activated/deactivate by switch (L5 illuminated). Light output is switched on when door is opened (if ‘D1’ = ‘DS’). Func Light output is switched on when door is closed (if ‘D1’ = ‘DS’). Light output is switched on when door is opened (if ‘D2’...
  • Page 12 English...

  • Page 13: Wiring Diagrams 11 To

    English...

  • Page 14: Air & Evaporator Probe Details/Diagram

    English Air and Evaporator Probe Details / Diagram...
  • Page 15 English Troubleshooting Problem Possible Cause Solution Audible & Visual Cancel audible alarm and > > Low temperature alarm investigate cause. Alarms/Warnings Cancel audible alarm and > > High temperature alarm investigate cause. Check and replace the air probe > > T1 Air probe failure Check and replace the evaporator >...
  • Page 16 English Compressor will not start Measure ohmic resistance of main Compressor motor has a > > and auxiliary winding using ohmmeter. winding open or shorted Compare with correct values > > Compressor stuck Change compressor Temperature control contacts > > Repair or replace the contacts are open >...
  • Page 17 English The temperature is not > > Too many door openings Advise user to decrease if possible cold enough Excessive heat load placed in Advise user not to put in products that > > cabinet are too hot. Check to see if condensation or ice The refrigerator has been over- crystals have formed on the suction >...
  • Page 18 English Extreme condensation Check the door and/or the magnetic The refrigerator door won’t shut > > gasket. Adjust the door hinges if inside the refrigerator completely needed; replace the gasket if broken. The refrigerator had been The unit must not be near sources >...
  • Page 19 English Note...
  • Page 20 UK Head Office Foster Refrigerator Oldmedow Road Kings Lynn Norfolk PE30 4JU a Division of ITW (UK) Ltd Tel: +44 (0)1553 691 122 Email: support@foster-gamko.com Website: www.fosterrefrigerator.co.uk...
