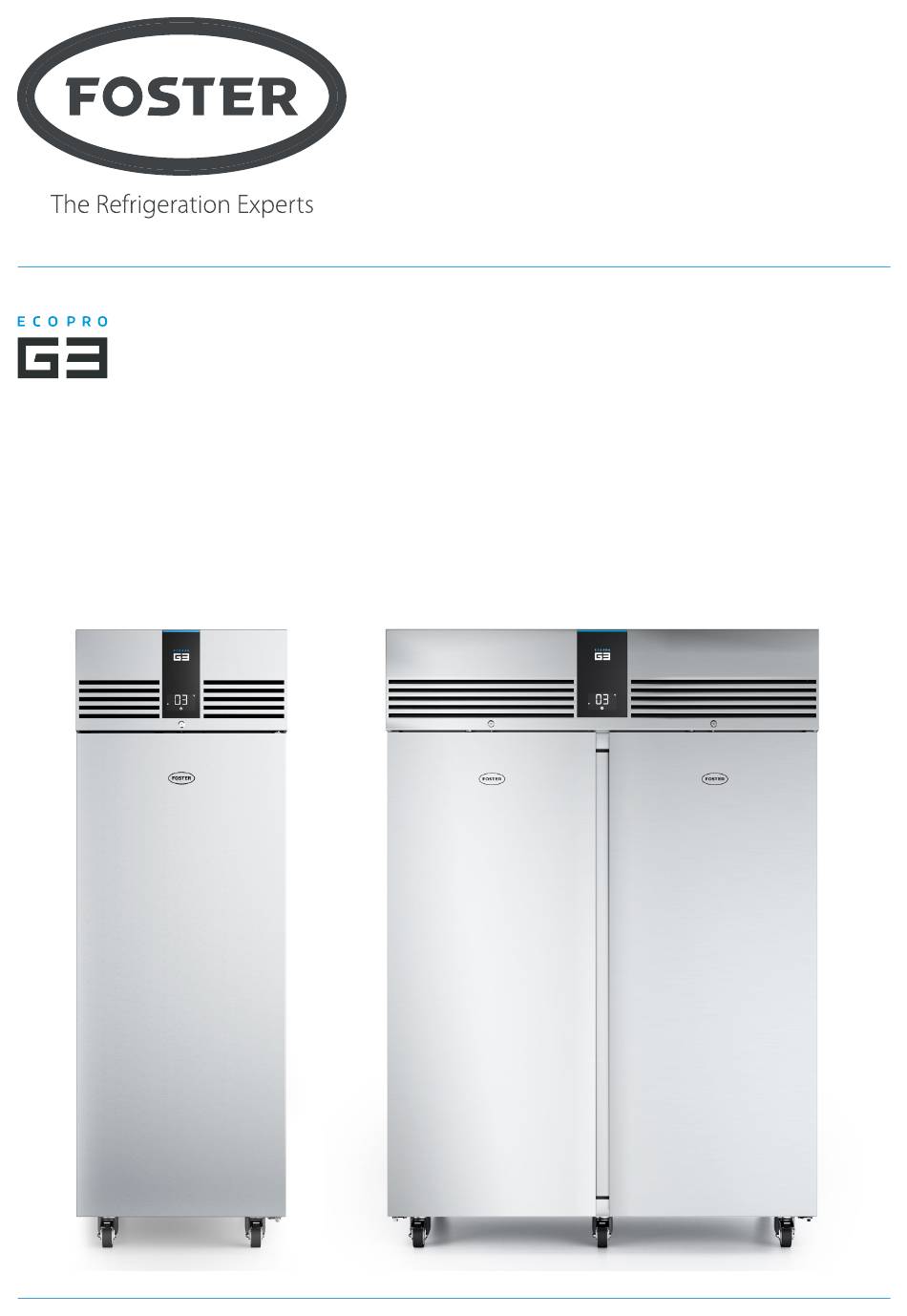

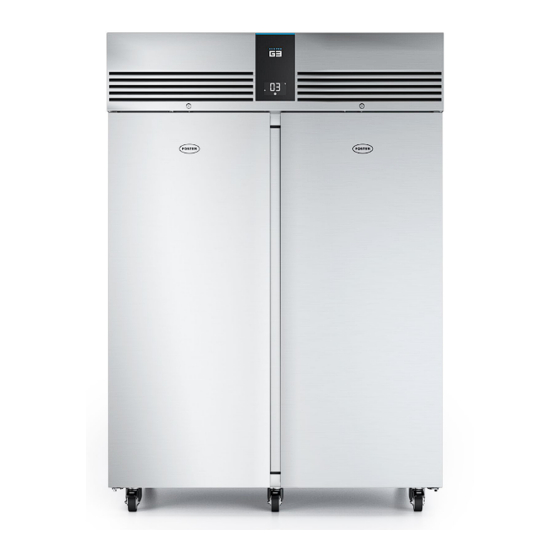

- Page 1 Service Manual Cabinets EP700H, EP700M, EP700L, EP700G, EP700F, EP700SH, EP700SL, EP700P, EP1440H, EP1440M, EP1440L, EP1440G, EP700HH, EP700HL, EP700LL, EP700H2, EP700L2, EP700LW, EP700L2MD, EP820HU, EP820MW, EP1440LG, EP1440HSTB.
-
Page 2: Here's How It Works
Welcome to your interactive Foster service manual. Here’s how it works: To return to the contents at any point, click on the Foster logo at the bottom of every page. Operating Instructions Service Function - Parameters... -
Page 3: General Information
All installations must conform to local and municipal regulations and directives. In the case of doubt contact a Foster authorised dealer or the Foster Technical Department. The information contained in this manual is current at the time of publication and is subject to change without notice. -
Page 4: Locating The Appliance
Locating the appliance After unpacking, clean (cleaning directions supplied within this manual) and allow the appliance to stand for 60 minutes before turning on. Ensure the appliance is situated on a firm, level surface, away from both hot and cold air sources, as this will affect its performance. - Page 5 Operating Instructions Display Icons and Buttons Appliance internal Icon 4 Icon 5 temperature Icon 6 Icon 7 Icon 1 Icon 8 Icon 2 Icon 3 Button 5 Button 1 Button 2 Button 3 Button 4 Icon Button Compressor running Information menu Keypad locked Increase value Evaporator fans running...
-
Page 6: Internal Light
Press button 3 to save the new value. If button 3 is not pressed the new value will not be stored. If the Set Point cannot be adjusted to the value required please contact your authorised Foster dealer for advice. -
Page 7: Service Function
Service Function Controller Menu’s The controller contains 2 menu levels, user level and service level. User Level Menu To access user level settings, press button 3 and then press button 1. The display will show ‘SP’ . Use buttons 2 and 4 to display the parameter required. - Page 8 Service Level Menu To access service level menu, press button 3 then press and hold buttons 2 and 4 for 5 seconds and the display will show ‘MDL’ . Use buttons 2 and 4 to display the parameter required. Press button 3 to display the current value. If it is required to amend the value use buttons 2 and 4 followed by button 3 to save the new value.
- Page 9 Display delay The display shows the information selected with parameter ‘DDM’ during defrost and for ‘DDY’ minutes after defrost termination Evaporator Fans in defrost YES - Fans active during defrost and drain (‘DRN’) and recovery / NO - Fans off during defrost and drain (‘DRN’) and recovery (fan start based on ‘FDD’...
- Page 10 Delay before door open alarm warning ‘Relay 1’ stop delay after door ‘0’ … ‘900’ - time in seconds (‘-1’ = ‘Relay’ does not de-energise / ‘0’ = instantaneous / ‘1’- open ’900’ = de-energises after prescribed time elapses) Door stop overide If the door switch remains open for longer than ‘DOT’...
- Page 11 Modbus communication type RTL or ASCII FD1-19 address for PC communication Return to Factory Parameters. Allow options through ‘User Menu’ to reset all controller parameters to factory production values where controller has been programmed by Foster G3 Cabinets - Service Manual...
-
Page 12: Parameter Settings
Parameter Settings INTEGRAL REMOTE www.fosterrefrigerator.com... - Page 13 INTEGRAL REMOTE NON NON NON NON G3 Cabinets - Service Manual...
- Page 14 INTEGRAL REMOTE NON NON NON NON NON NON www.fosterrefrigerator.com...
-
Page 15: Other Information
- Air probe has failed.. Call your authorised dealer or Foster Service to arrange for this to be replaced. During this time the appliance cannot maintain an accurate temperature and all product should be removed and the appliance switched off. -
Page 16: Probe Information
Probe Information The probe is a type 10k NTC. The probes are identical in characteristics with the T1 and T2 identification markings and different colours being for ease of identification and not for functional reasons. Please refer to the image below for probe identification. Probe Indentification LAEx x-xx... -
Page 17: Refrigerant Charge
The refrigerant charge weight can be found on the serial label within the appliance. Where this is not available please refer to the table below. The information below is correct time of printing but is subject to change without prior notice. EP700H 80gms EP700M 80gms EP700L 80gms... -
Page 18: Relay Test
Factory Reset Where the controller was originally programmed by Foster and is dedicated to a specific appliance type it is possible to return the setting to they’re original programmed state. If the controller was not programmed by Foster this function will return the parameters to the values in the original factory settings. -
Page 19: Maintenance
Maintenance Condenser Cleaning The condenser is a Stayclear condenser which does not require cleaning as regularly as a traditional finned condenser may. Care should be taken when cleaning the condenser. Never use a wire brush, abrasive or corrosive materials to clean the condenser. Door Gaskets Door gaskets should be inspected periodically and cleaned where necessary with a warm damp cloth. -
Page 20: Wiring Diagrams
Wiring Diagrams EP700H Integral Condensing Unit www.fosterrefrigerator.com... - Page 21 EP700H Remote Condensing Unit G3 Cabinets - Service Manual...
- Page 22 EP700G Integral Condensing Unit www.fosterrefrigerator.com...
- Page 23 EP700G Remote Condensing Unit G3 Cabinets - Service Manual...
- Page 24 EP700P Integral Condensing Unit www.fosterrefrigerator.com...
- Page 25 EP700P Glass Door, Integral Condensing Unit G3 Cabinets - Service Manual...
- Page 26 EP700F Integral Condensing Unit www.fosterrefrigerator.com...
- Page 27 EP700F Remote Condensing Unit G3 Cabinets - Service Manual...
- Page 28 EP700M, EP700L Integral Condensing Unit www.fosterrefrigerator.com...
- Page 29 EP700M, EP700L Remote Condensing Unit G3 Cabinets - Service Manual...
- Page 30 EP700HH Integral Condensing Unit www.fosterrefrigerator.com...
- Page 31 EP700HH Remote Condensing Unit G3 Cabinets - Service Manual...
- Page 32 EP700HL Integral Condensing Unit www.fosterrefrigerator.com...
- Page 33 EP700HL Remote Condensing Unit G3 Cabinets - Service Manual...
- Page 34 EP700LL Integral Condensing Unit www.fosterrefrigerator.com...
- Page 35 EP700LL Remote Condensing Unit G3 Cabinets - Service Manual...
- Page 36 EP820HU Integral Condensing Unit www.fosterrefrigerator.com...
- Page 37 EP1440H Integral Condensing Unit G3 Cabinets - Service Manual...
- Page 38 EP1440H Remote Condensing Unit www.fosterrefrigerator.com...
- Page 39 EP1440G Integral Condensing Unit G3 Cabinets - Service Manual...
- Page 40 EP1440G Remote Condensing Unit www.fosterrefrigerator.com...
- Page 41 EP1440M, EP1440L Integral Condensing Unit G3 Cabinets - Service Manual...
- Page 42 EP1440M, EP1440L Remote Condensing Unit www.fosterrefrigerator.com...
- Page 43 G3 Cabinets - Service Manual...
- Page 44 By Appointment to Her Majesty Queen Elizabeth II Suppliers of Commercial Refrigeration Foster Refrigerator, King’s Lynn For more information: For service and spares: +44 (0) 1553 698485 For service +44 (0) 1553 780333 regional@foster-gamko.com service@foster-gamko.com fosterrefrigerator.com For parts +44 (0) 1553 780300 parts@foster-gamko.com...
