Summary of Contents for Idis DC-T4536HRX

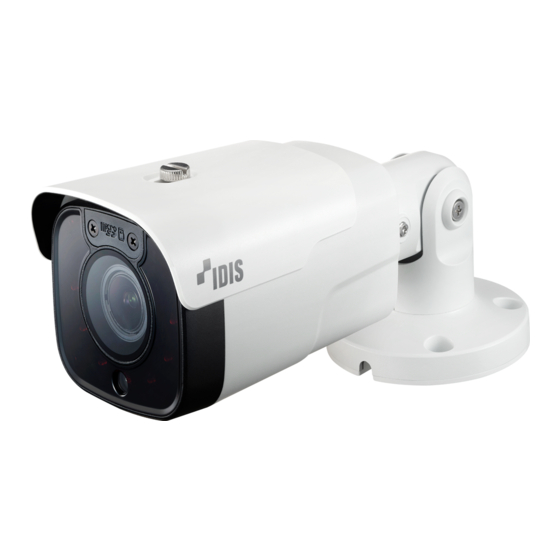

- Page 1 Network Camera Quick Guide DC-T4536HRX DC-T4536HRX-A Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. - Page 4 RJ45 moduler jack, RJ45 waterproof rubber ring, RJ45 connector protect cover, cable waterproof rubber ring, RJ45 connector back cover Please download software (IDIS Discovery, IDIS Center, IDIS Solution Suite Compact) and product manual from this link : -https://www.idisglobal.com - Search IDIS Discovery, IDIS Center, IDIS Solution Suite Compact.
-
Page 5: Camera Installation
Camera Installation Inserting a SD Memory Card Loosen the screws counterclockwise and remove the cover. Make sure that the cover is joined properly when screwing it; otherwise, the IP67 level is not guaranteed. Waterproof Cable Installation RJ45 waterproof rubber ring Insert a SD memory card into the SD memory card RJ45 modular jack slot with the ‘micro SD’... -
Page 6: Installation
Insert the network cable into the waterproof cap, Lock the waterproof cap into the waterproof cap rubber bushing, and waterproof cap body in order. body. Not pulling the cable back may cause water to seep in and damage the product. Installation •... -
Page 7: Angle Adjustment
Angle Adjustment Dimensions 104mm 59mm 19.6mm 20mm 217mm Screw B Screw A 50.9mm Ø 72mm Vertical (Tilt) Rotation Ø 89.9mm Horizontal (Pan) Rotatio 50.9mm Lens Rotation Network Camera... -
Page 8: Specifications
Specifications Out-door Ready IP67, Heater Operating Temperature -40°C ~ 55°C (-40˚F ~131˚F) Boot Up Temperature -20°C ~ +55˚C (-4°F ~ +131˚F) Operating Humidity 0% ~ 90% Power Source , PoE(IEEE 802.3af, Class3) Power Consumption , 1.1A, 13.2W PoE, IEEE 802.3af (Class 3), 11W Approval FCC, CE External Dimensions (W x D x H) - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
