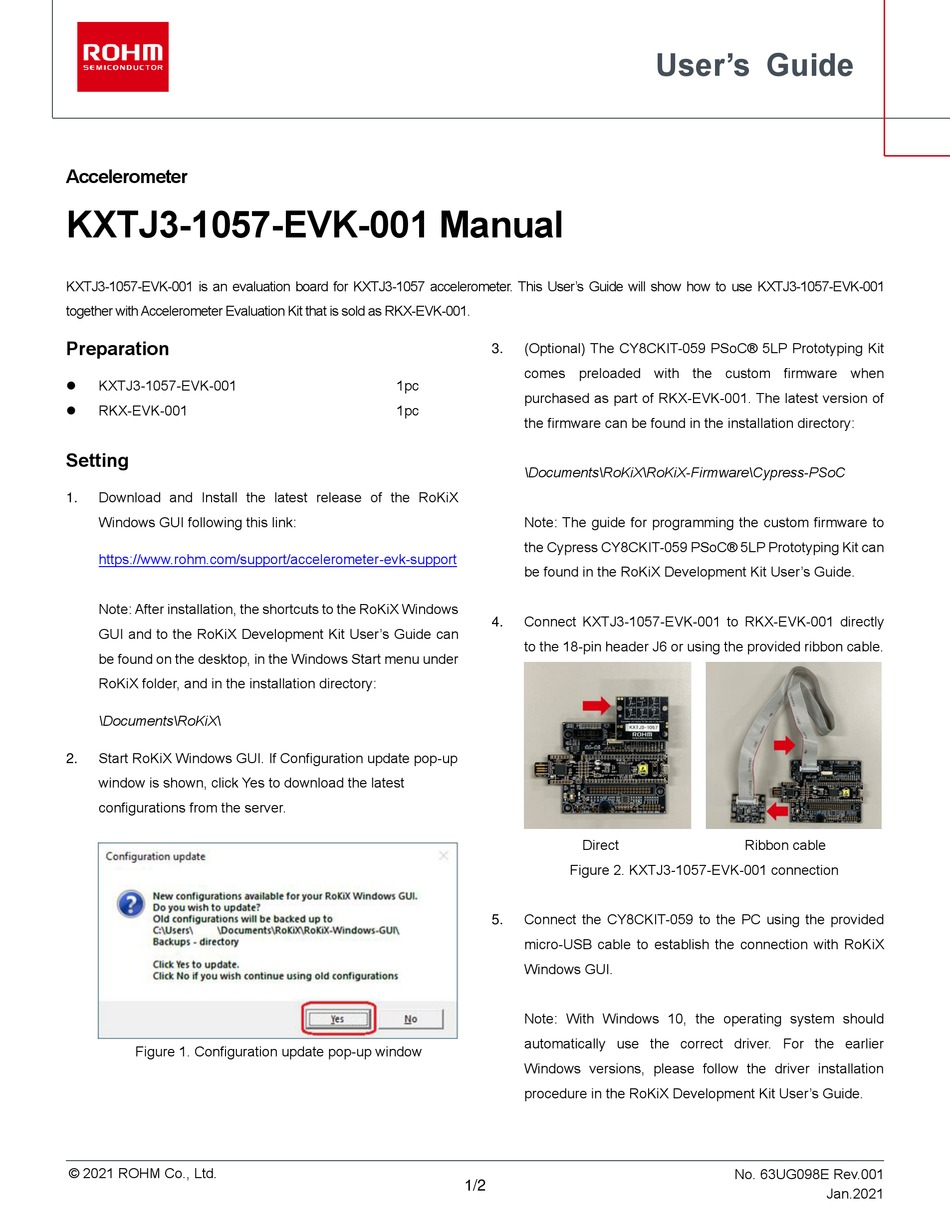

KXTJ3-1057-EVK-001 Manual
KXTJ3-1057-EVK-001 is an evaluation board for KXTJ3-1057 accelerometer. This User's Guide will show how to use KXTJ3-1057-EVK-001
together with Accelerometer Evaluation Kit that is sold as RKX-EVK-001.
Preparation
⚫ KXTJ3-1057-EVK-001
RKX-EVK-001
⚫
Setting
Download and Install the latest release of the RoKiX
1.
Windows GUI following this link:
https://www.rohm.com/support/accelerometer-evk-support
Note: After installation, the shortcuts to the RoKiX Windows
GUI and to the RoKiX Development Kit User's Guide can
be found on the desktop, in the Windows Start menu under
RoKiX folder, and in the installation directory:
\Documents\RoKiX\
Start RoKiX Windows GUI. If Configuration update pop-up
2.
window is shown, click Yes to download the latest
configurations from the server.
Figure 1. Configuration update pop-up window
© 2021 ROHM Co., Ltd.
(Optional) The CY8CKIT-059 PSoC® 5LP Prototyping Kit
3.
comes preloaded with the custom firmware when
1pc
purchased as part of RKX-EVK-001. The latest version of
1pc
the firmware can be found in the installation directory:
\Documents\RoKiX\RoKiX-Firmware\Cypress-PSoC
Note: The guide for programming the custom firmware to
the Cypress CY8CKIT-059 PSoC® 5LP Prototyping Kit can
be found in the RoKiX Development Kit User's Guide.

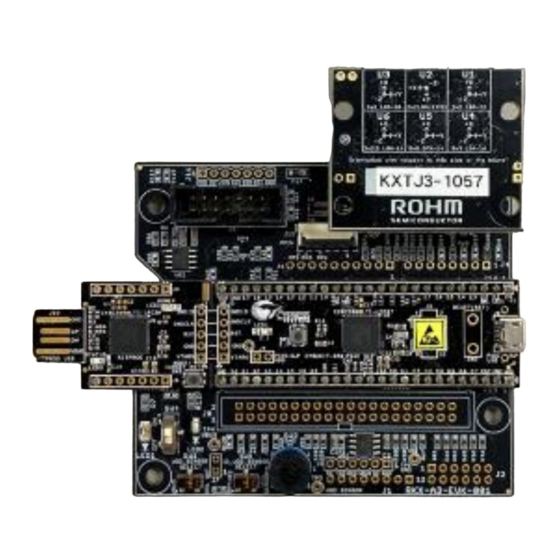

Connect KXTJ3-1057-EVK-001 to RKX-EVK-001 directly
4.
to the 18-pin header J6 or using the provided ribbon cable.
Figure 2. KXTJ3-1057-EVK-001 connection
Connect the CY8CKIT-059 to the PC using the provided
5.
micro-USB cable to establish the connection with RoKiX
Windows GUI.
Note: With Windows 10, the operating system should
automatically use the correct driver. For the earlier
Windows versions, please follow the driver installation
procedure in the RoKiX Development Kit User's Guide.
1/2
User's Guide
Direct Ribbon cable
No. 63UG098E Rev.001
Jan.2021
