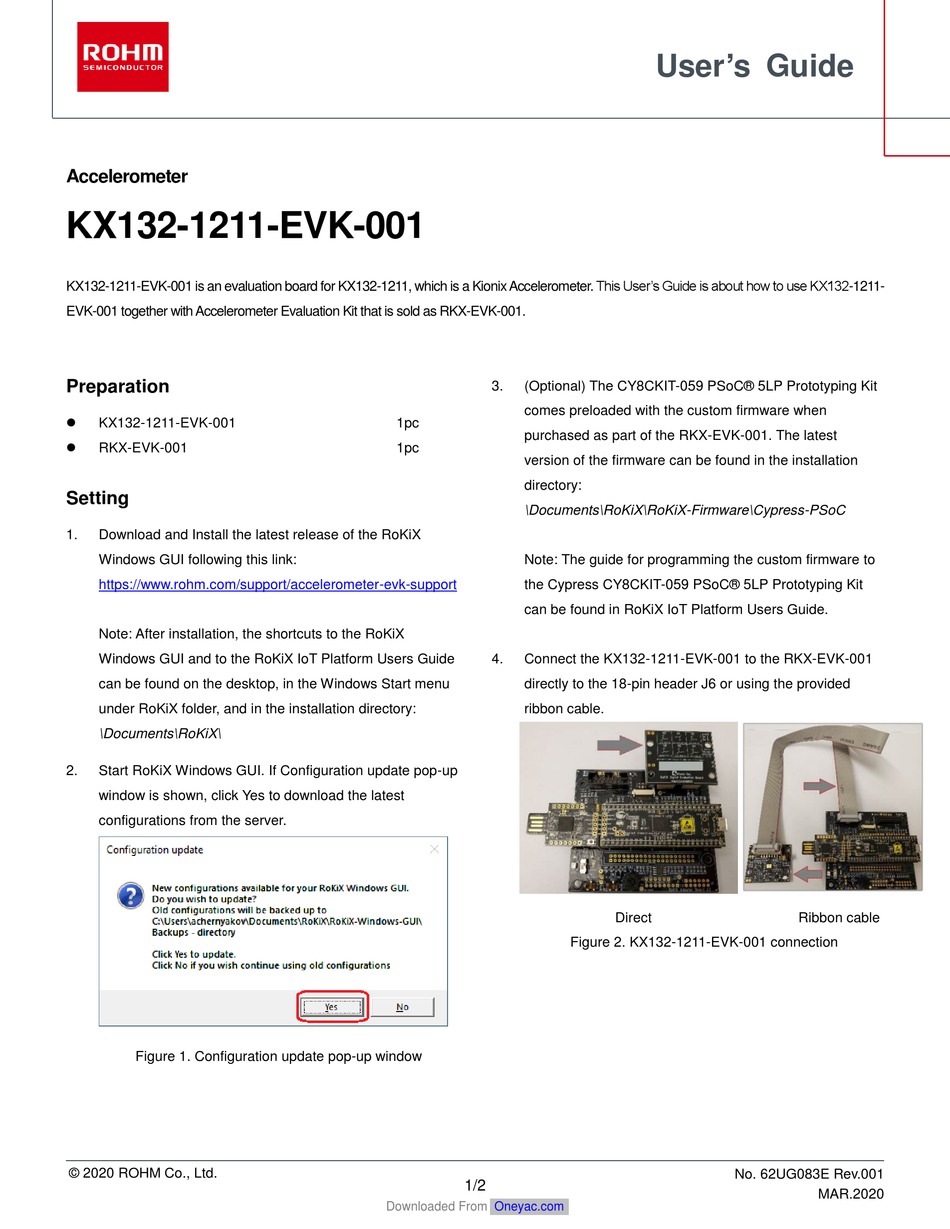

Accelerometer
KX132-1211-EVK-001
KX132-1211-EVK-001 is an evaluation board for KX132-1211, which is a Kionix Accelerometer. This User's Guide is about how to use KX132-1211-
EVK-001 together with Accelerometer Evaluation Kit that is sold as RKX-EVK-001.
Preparation
KX132-1211-EVK-001
RKX-EVK-001
Setting
1.
Download and Install the latest release of the RoKiX
Windows GUI following this link:
https://www.rohm.com/support/accelerometer-evk-support
Note: After installation, the shortcuts to the RoKiX
Windows GUI and to the RoKiX IoT Platform Users Guide
can be found on the desktop, in the Windows Start menu
under RoKiX folder, and in the installation directory:
\Documents\RoKiX\
2.
Start RoKiX Windows GUI. If Configuration update pop-up
window is shown, click Yes to download the latest
configurations from the server.
Figure 1. Configuration update pop-up window
© 2020 ROHM Co., Ltd.
3.
(Optional) The CY8CKIT-059 PSoC® 5LP Prototyping Kit
comes preloaded with the custom firmware when
1pc
purchased as part of the RKX-EVK-001. The latest
1pc
version of the firmware can be found in the installation
directory:
\Documents\RoKiX\RoKiX-Firmware\Cypress-PSoC
Note: The guide for programming the custom firmware to
the Cypress CY8CKIT-059 PSoC® 5LP Prototyping Kit
can be found in RoKiX IoT Platform Users Guide.
4.
Connect the KX132-1211-EVK-001 to the RKX-EVK-001
directly to the 18-pin header J6 or using the provided
ribbon cable.
1/2
Downloaded From
Oneyac.com
User's Guide
Direct
Figure 2. KX132-1211-EVK-001 connection
No. 62UG083E Rev.001
Ribbon cable
MAR.2020
