AG 180-20 (D/P)
English
Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG 180-20 D and is the answer not in the manual?

Questions and answers

Related Manuals for Hilti AG 180-20 D

Summary of Contents for Hilti AG 180-20 D

  • Page 1 AG 180-20 (D/P) English Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03...
  • Page 2 Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03...
  • Page 3 AG 180-20 (D/P) Original operating instructions Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03...
  • Page 4 Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03...

  • Page 5: Information About The Documentation

    Information about the documentation About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...
  • Page 6 The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information...
  • Page 7 ▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. ▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
  • Page 8 ▶ The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. ▶ The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool.
  • Page 9 ▶ Do not use the power tool if it starts suddenly or with a jolt. This may indicate a fault in the electronics. Have the power tool repaired by Hilti Service right away. ▶ Apply appropriate safety measures at the opposite side of the workpiece in work that involves breaking through.
  • Page 10 ▶ Grinding discs must be stored and handled carefully in accordance with the manufacturer’s instructions. ▶ Have the tool checked by Hilti Service after breakage of a disc, if the tool has been dropped or has fallen, or in the event of other mechanical damage.
  • Page 11 English Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03...
  • Page 12 English Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03...

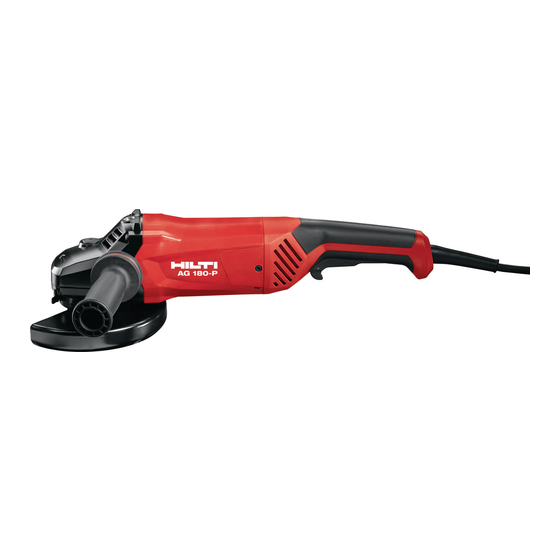

  • Page 13 Description Product overview English Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03...
  • Page 14 Items supplied Angle grinder, guard, side handle, clamping flange, clamping nut, wrench and operating instructions. Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group | USA: www.hilti.com Starting current limitation The electronic starting current limiter reduces the starting current drawn by the power tool and thus prevents the mains fuse blowing.

  • Page 15: Technical Data

    The operating voltage of the transformer or generator must always be within +5 % and -15 % of the rated voltage of the product. AG 180-20 D/ AG 180- 20 P...

  • Page 16: Before Use

    Vibration information Other applications, such as cutting, may produce vibration values that deviate from the given values. Surface grinding with the vibration-absorbing side handle (a 6.15 m/s² h,AG Uncertainty (K) 1.5 m/s² Before use CAUTION Risk of injury. The accessory tool may be hot or have sharp edges. ▶...
  • Page 17 6.2.2 Adjusting the guard or guard with cover plate 1. Release the clamping lever. 2. Rotate the guard to the required position. 3. Secure the guard by closing the clamping lever. 6.2.3 Removing the guard or guard with cover plate 1.

  • Page 18: Operation

    ➥ This will avoid overheating and discoloration of the workpiece and help ensure an even surface finish. Switching on and off 7.2.1 Switching on Option: AG 180-20 D English Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03...

  • Page 19: Care And Maintenance

    3. Press the on/off switch as far as it will go. ➥ The motor runs. 7.2.2 Switching off Option: AG 180-20 D ▶ Release the on/off switch. ➥ The safety catch jumps back automatically into the locked position and the motor stops. 7.2.3...

  • Page 20: Transport And Storage

    To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group | USA: www.hilti.com Checks after care and maintenance work ▶...

  • Page 21: Rohs (Restriction Of Hazardous Substances)

    Hilti for recycling. Ask Hilti Service or your Hilti representative for further information. ▶ Do not dispose of power tools, electronic equipment or batteries as household waste! RoHS (Restriction of Hazardous Substances) Click on the links to go to the table of hazardous substances: qr.hilti.com/r2328153.
  • Page 22 English Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03...
  • Page 23 Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03...
  • Page 24 Hilti = registered trademark of Hilti Corp., Schaan 20180829 Printed: 13.09.2018 | Doc-Nr: PUB / 5169287 / 000 / 03...

This manual is also suitable for:

Ag 180-20 p
