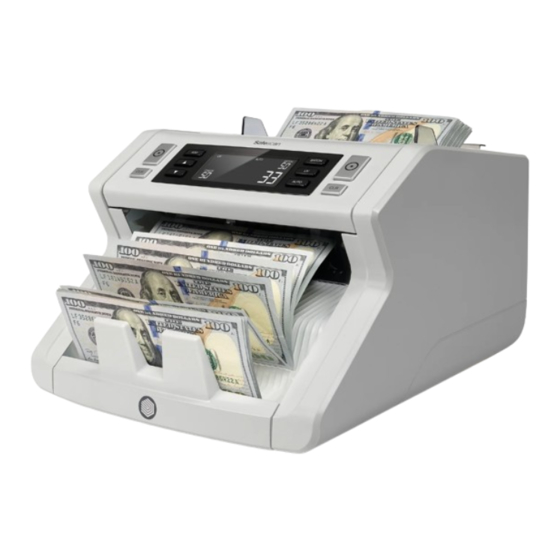

Safescan 2200 Series User Manual

Hide thumbs Also See for 2200 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
English
2210 / 2250
Banknote Counters

Advertisement

Table of Contents
loading

Related Manuals for Safescan 2200 Series

Summary of Contents for Safescan 2200 Series

  • Page 1 User Manual English 2210 / 2250 Banknote Counters...

  • Page 2: Package Contents

    Thank you for purchasing a Safescan 2200-series banknote counter. This user manual will help you to get started with your Safescan banknote counter and describes the setup and operating procedures. We recommend that before using the device you carefully read these operating instructions.
  • Page 3 Product Front 1. Hopper with adjustable 4. Power connection 5. On/Off switch guides 2. Front panel (display / buttons) 6. Hopper adjustment wheel 3. Stacker 7. RJ12 port for external display connection Back More info, articles, tutorials and videos support.safescan.com...

  • Page 4: Available Accessories

    English 8. Power cord(s)* 9. Maintenance kit * Depending on model / country specification Available accessories Safescan Cleaning Cards for banknote counters (pack of 15 cards), partnumber 152-0663. See www.safescan.com for details. More info, articles, tutorials and videos support.safescan.com...
  • Page 5 English Safescan 2210 / 2250: features Banknote feature detection UV and MG SIZE features features features (height) Safescan • — — • 2210 Safescan • • • • 2250 More info, articles, tutorials and videos support.safescan.com...

  • Page 6: Short Press

    7. Safescan 2210: Select auto Enter MG sensitivity level or manual start adjustment menu (Safescan Safescan 2250: MG feature 2250) detection on/off 8. Batch function on/off / set Enter banknote height batch number sensitivity level adjustment menu More info, articles, tutorials and videos support.safescan.com...

  • Page 7: Getting Started

    English Getting started 1. Place the device on a flat and stable surface. 2. Connect the banknote counter to the mains outlet using the supplied power cord. More info, articles, tutorials and videos support.safescan.com...
  • Page 8 UV and/or MG* button. (* Safescan 2250 only) Ready for counting The machine is now ready for basic counting. More advanced settings are described in the next chapters of this manual. More info, articles, tutorials and videos support.safescan.com...

  • Page 9: Counting Banknotes

    Safescan 2210: press the AUTO button to activate/de-activate the auto start function. This will be shown in the display. AUTO AUTO Safescan 2250: press the START button for 3 seconds to activate/ de-activate the auto start function. 3SEC AUTO AUTO...
  • Page 10 1, then flip them backwards as shown in fig. 2. Use the hopper guides to keep the banknotes centered. Please note The banknotes have to be sorted per denomination before counting. More info, articles, tutorials and videos support.safescan.com...
  • Page 11 4. Once you count a second stack of banknotes or re-count the first stack, the number of notes of the previous count will be shown under CHECK in the display. To set this quantity to zero, press AUTO AUTO More info, articles, tutorials and videos support.safescan.com...
  • Page 12 A banknote with a different A banknote with a different thickness has been detected, height than the first counted or 2 banknotes may be stuck banknote has been detected together (“double note detection”) (minimum difference 5mm) More info, articles, tutorials and videos support.safescan.com...
  • Page 13 (“half note detection”) the machine). For more information and details please see chapter “Troubleshooting” Remove the suspect banknote - this is the last counted banknote in the stacker - and press START to continue counting. More info, articles, tutorials and videos support.safescan.com...
  • Page 14 You can set the batch number as follows: AUTO 2.1. Press the BATCH button to activate the function. The indicator in the display lights up, including 2 blinking arrows. AUTO AUTO More info, articles, tutorials and videos support.safescan.com...
  • Page 15 99, 98 etc. by pressing AUTO AUTO AUTO 2.4. Confirm the batch number by pressing the START key. After this, the set batch number will remain visible in the screen. AUTO AUTO AUTO More info, articles, tutorials and videos support.safescan.com...
  • Page 16 The following settings can be made: 1. UV Pressing the UV button for 3 seconds will activate the UV sensitivity level menu. The default level is shown, including 2 blinking arrows. See (5) for adjustment procedure. 3SEC More info, articles, tutorials and videos support.safescan.com...
  • Page 17 English 2. MG Safescan 2250 only: Pressing the MG button for 3 seconds will activate the MG sensitivity level menu. The default level is shown, including 2 blinking arrows. See (5) for adjustment procedure. 3SEC 3. Height Pressing the BATCH button for 3 seconds will activate the HEIGHT sensitivity level menu.
  • Page 18 The default level is shown, including 2 blinking arrows. See (5) for adjustment procedure. 3SEC 5. Level adjustment Adjust the sensitivity level to a higher or lower level with the ARROW keys. More info, articles, tutorials and videos support.safescan.com...
  • Page 19 Press START to confirm the set level. Reset to default factory settings To return to factory default settings: Press and hold [CLR]. The machine will sound a “beep” to confirm that the factory default settings have been restored. More info, articles, tutorials and videos support.safescan.com...
  • Page 20 (half note) detection. To disable the height and width detection, press the arrow down button for 3 seconds. The device will sound 3 beeps and show “HEIGHT OFF” on the display. 3SEC More info, articles, tutorials and videos support.safescan.com...
  • Page 21 To enable size detection again, press the arrow down button for 3 seconds. The device will sound 3 beeps and show “HEIGHT ON” on the display. More info, articles, tutorials and videos support.safescan.com...

  • Page 22: Troubleshooting

    - If the banknote is in are almost impossible fact genuine, lower the to detect. MG sensitivity level and - Some currencies may count the banknote not have MG features again. integrated at all. More info, articles, tutorials and videos support.safescan.com...
  • Page 23 - Adjust the hopper wheel if you notice that banknotes are not going straight through the device. More info, articles, tutorials and videos support.safescan.com...
  • Page 24 Use the shows hopper guides to center the banknotes and when counting a large stack of banknotes, guide the notes also with your hands during counting. More info, articles, tutorials and videos support.safescan.com...
  • Page 25 (EA2 error) and/ aanzetten or that no banknotes or other objects are blocking any internal parts of the machine. When the error message remains, contact Safescan technical support for assistance. More info, articles, tutorials and videos support.safescan.com...
  • Page 26 - When counting errors like “thickness” (double notes) or “skewed notes” occur, decrease the note thickness distance by turning the sensitivity wheel anti-clockwise ( Please note: Since the adjustment wheel is very sensitive, only make minor adjustments. More info, articles, tutorials and videos support.safescan.com...

  • Page 27: Maintenance

    English Maintenance The Safescan 2210 / 2250 is a high precision device. To ensure that operation and reliability remain at an optimal level, it is important to clean the machine frequently. Use an air-duster to remove dust and dirt. Clean the hopper and stacker with the included dry brush. Use a banknote cleaning card (available as option) to clean the inner parts of the device.
  • Page 28 English Cleaning your banknote counter To clean the internal parts and sensors of the device: 1. Open the cover by moving the front panel forward 2. Lift up the handle More info, articles, tutorials and videos support.safescan.com...
  • Page 29 English 3. Remove the hopper guide assembly 4. Clean the sensors and the rotation wheels carefully with a dry brush or air duster More info, articles, tutorials and videos support.safescan.com...

  • Page 30: Technical Specifications

    English The use of banknote counter cleaning cards (option) You can also use the Safescan banknote counter cleaning cards (partno. 152-0663.) to clean the roller wheels and magnetic sensors. Technical specifications Supported currencies: All currencies Counting speed: 1000 banknotes/minute Banknote feature detection: UV features, MG features (Safescan...

  • Page 31: Warranty

    The Declaration of Conformity (DoC) is available at www.safescan.com Take the device to a recycling centre if you want to dispose of it. Never throw any electronic device away with the household waste. More info, articles, tutorials and videos support.safescan.com...
  • Page 32 Safescan is a registered trademark of Solid Control Holding B.V. ® No part of this manual may be reproduced in any form, by print, copy or in any other way without prior written permission of Solid Control Holding B.V. Solid Control Holding B.V.
