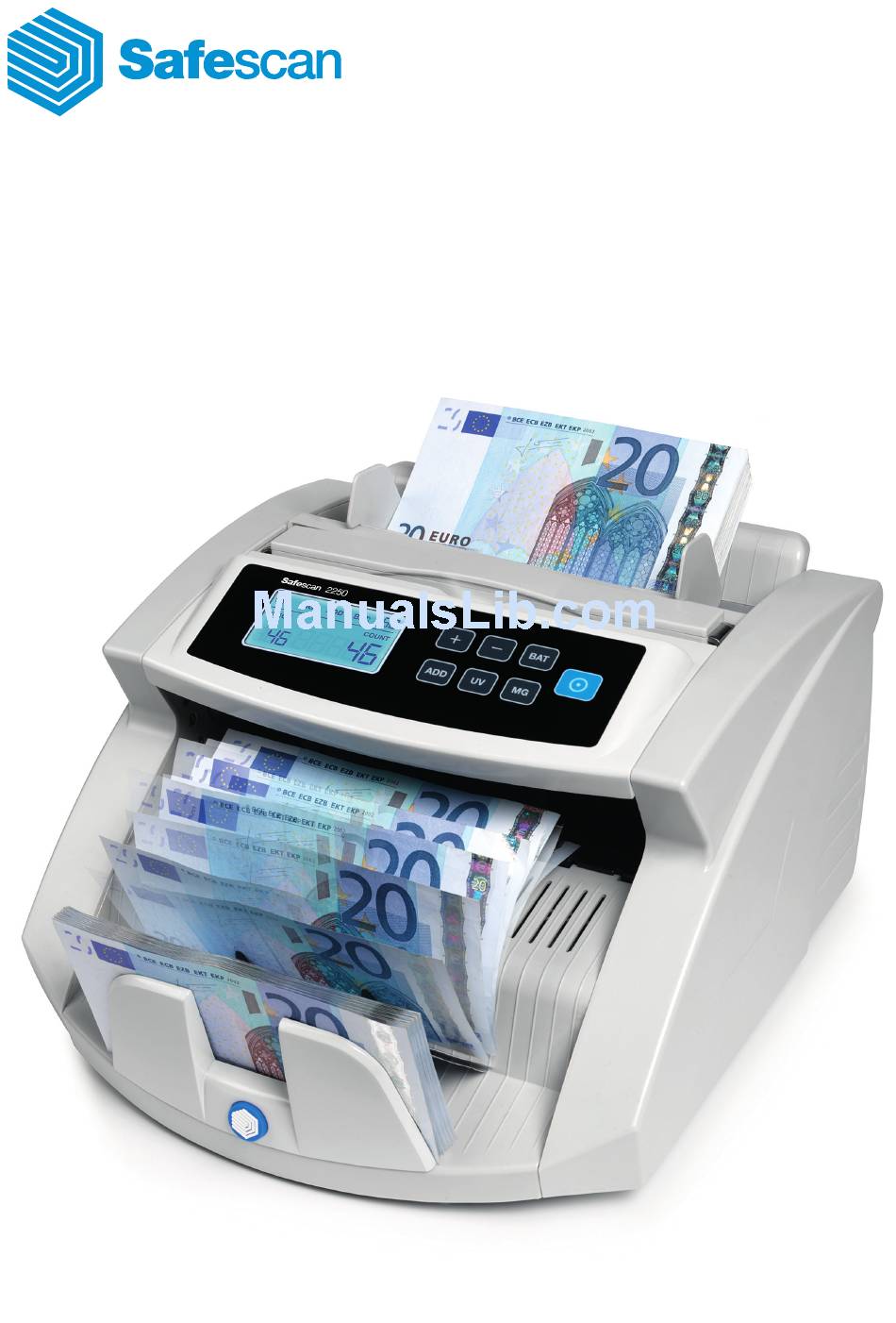

- Page 1 Manual Safescan 2200 series EngliSh | nEdErlandS | dEutSch | FrançaiS | ESpañol | italiano | portuguêS...

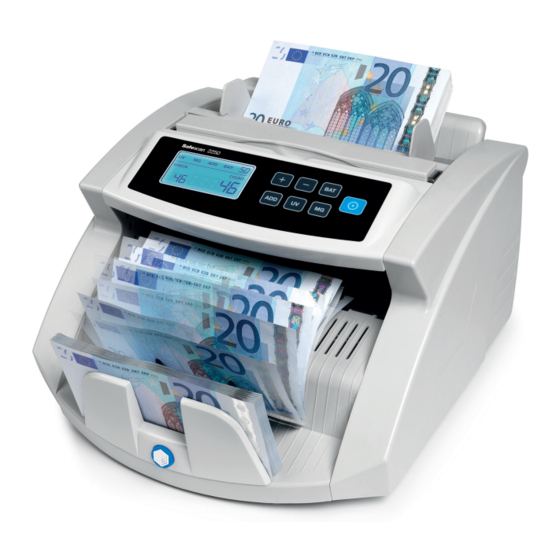

- Page 2 • User manual Safescan 2200 series Thank you for choosing Safescan 2200 series banknote counter. Before using the machine, please read this manual thoroughly in order to familiarize yourself with the functions and operations of the machine. The Safescan 2200 series banknote counters are professional and reliable with outstanding performance. They feature various kind of counterfeit detections, double note, size-detection and counting for sorted notes.
- Page 3 English | nEdErlandS | dEutSch | FrançaiS | ESpañol | italiano | portuguêS 1.0 GENERAL PARTS & CONTROLS 1.1 Parts of the machine 1. Stacker 7. Banknote guides 13. Banknote thickness adjustment wheel 2. Stacker sensors 8. Hopper 14. Power switch 3.
-
Page 4: Operation
[ADD] button. Press to activate the ADD function. Press and hold for 3 seconds to set the IR detection sensitivity level. [UV] button. Press to (in)activate UV (ultra violet) counterfeit detection. Press and hold for 3 seconds to set the UV detection sensitivity level. Product specific items 2210 [CLEAR] button. - Page 5 English | nEdErlandS | dEutSch | FrançaiS | ESpañol | italiano | portuguêS 3.0 COUNTING 3.1 Counting modes This machine has two counting modes: automatic and manual. 3.1.1 Automatic (default) Press and hold the [START] button until [COUNT] screen displays “YES”, indicating that the machine is now in automatic counting mode.
-
Page 6: Counterfeit Detection
4.4 Sort count function The 2200 series banknote counters are equipped with a size detection function. This function can help to prevent wrong counting results in case of one or more different banknotes which were mixed in the sorted banknotes by mistake. -
Page 7: Error Messages And Solutions
5.2 Adjusting the sensitivity of the counterfeit detection The Safescan 2200 series are equipped with adjustable sensors. This makes it possible to fine-tune the sensors sensitivity to make the machine ready for every currency or banknote conditions. Note: fine tuning the sensitivity is only needed when false counterfeit alarms occur. Before changing the sensitivity levels, please first check chapter 7.0. - Page 8 (see chapter 8.0 for details). EA6 Error in the control panel Contact Safescan for assistance: www.safescan.com. 7.3 Adjusting the hopper position The position of the hopper adjusting wheel has already been set in optimal position in the factory. When unnecessary counting errors occur (i.e.
-
Page 9: Maintenance
English | nEdErlandS | dEutSch | FrançaiS | ESpañol | italiano | portuguêS Adjust the hopper position: • If notes cannot be counted smoothly, increase the distance. Turn the wheel clockwise (-) to increase the distance. • If the machine stops and displays the error codes E3 or E5, decrease the distance. Turn the wheel counter clockwise (+) to decrease the note thickness distance. -
Page 10: Technical Specification
Batch range : 1–999 10. WARRANTy Warranty procedure Contact Safescan for assistance: www.safescan.com This product is in compliance with the essential requirements and other relevant provisions of the applicable European directives. The Declaration of Conformity (DoC) is available at www.safescan.com If possible, bring the machine to a recycling centre after usage. - Page 11 Safescan Shop.it Sistemi di Verifica e Conteggio Banconote e Monete Rileva Presenze Marcatempo e Controllo Accessi Cassetti Portadenaro ed Accessori...
