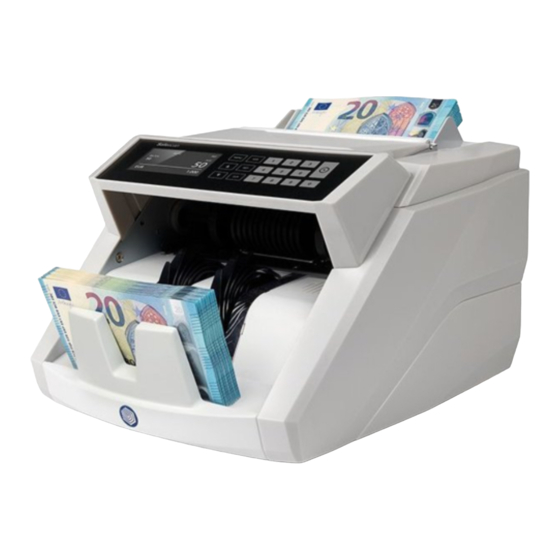

- Page 1 USER MANUAL ENGLISH 2465-S SAFESCAN BANKNOTE COUNTER www.safescan.com...
- Page 2 Maintenance kit USB port for connection to PC * depending on model / country specification MicroSD slot for currency updates SAFESCAN 2465-S: FEATURES UP TO 7-POINT COUNTERFEIT DETECTION DETECT DETECT (UV, MG, MT, IR, SIZE, COLOUR, THICKNESS) UV, MG SIZE...
-
Page 3: Technical Specifications
300 notes Stacker capacity: 220 notes Power: 110-240V, 50/60Hz Power consumption: < 60W 31.1 x 26.1 x 19.5 cm Dimensions: Weight: 6.5 kg Operating Temperature: 0 ~ 40°c Available accessories: Safescan TP-230 thermal printer Safescan MCS Money Counting Software www.safescan.com... -
Page 4: Getting Started
Switch on the banknote counter by pushing the power Select currency by pressing the CUR button. switch at the back in the “1” position. AU TO M IX READY FOR COUNTING The machine is now ready for basic counting. www.safescan.com... -
Page 5: Counting Banknotes
ENGLISH COUNTING BANKNOTES CURRENCY Press the CUR key to select the desired currency. Default setting =EURO. The Safescan 2465-S supports multiple currencies. Depending on the selected currency and its characteristics, not all counting modes may be selectable. AUTO EU R COUNTING MODE. - Page 6 VA LUE 10 0 30 0 20 0 40 0 5 00 1 00 0 EU R 2 . 39 0 DI F FE REN T DE NO MI N ATI O N www.safescan.com DE N P CS VA LUE...
- Page 7 VALUE COUNTING (MIX MODE ONLY): PRINT OR EXPORT COUNT RESULTS When you have connected the optional Safescan TP-230 printer or use the optional Safescan Money Counting Software, press [REP] for 3 seconds to print the detailed count results or export them to the software.
-
Page 8: Device Menu
14 0 E UR 2 39 0 30 0 ENGLISH DEVICE MENU In the device menu of the 2465-S you can define specific settings of the machine. To enter the menu, press the MENU button AUTO DE N VA LUE AUTO... -
Page 9: Menu Content
MODEL MODE CURRENCY* SENSITIVITY LEVEL AUTO M IX 2465-S Mix > Sort > Count EUR > GBP > USD > CHF > UV > MG/MT > Colour BATCH PLN > SEK > NOK > ALL > > IR > Height > Paper ALL+UV >... - Page 10 BATC H E U R 5 seconds after you have made your choice, the number stops blinking and your batch number is saved. You can also save the setting by pressing the START button. AUTO M IX BATCH E UR www.safescan.com...
-
Page 11: Error Messages
Remove the banknote from the stacker and stacker and press START to continue. press START to continue (Safescan 2650-S only). R E CE I VE R S TAC K E R F UL L S LA N T N OTE S... -
Page 12: Troubleshooting
AU TO I R S U S P E C T E D www.safescan.com EU R 2390 H EI G T H ER R O R... -
Page 13: Software Updates
Central banks are constantly updating their banknotes to incorporate the newest security features and make it even harder for counterfeiters to succeed. Safescan’s dedicated currency management team makes sure your 2465-S keeps pace with these changes. We notify you whenever there’s an update; all you have to do is install it using the USB port or micro SD slot on the back of the device. -
Page 14: Maintenance
MAINTENANCE The Safescan 2465-S is a high precision device. To ensure that operation and reliability remain at an optimal level, it is important to clean the machine frequently. Use an air-duster to remove dust and dirt. Clean the hopper and stacker with the included dry brush. -
Page 15: Warranty
Our support team is available by phone during office hours (GMT +1 timezone) or by e-mail to answer any question you may have regarding the usage of your Safescan device. See www.safescan.com for details. When calling or e-mailing our support center, always make sure you have the following information at hand: model number, partnumber, serial number (see product sticker at the bottom of the device), software version number (shown at startup of the device), date of purchase. - Page 16 SAFESCAN® is a registered trademark of Solid Control Holding B.V. No part of this manual may be reproduced in any form, by print, copy or in any other way without prior written permission of Solid Control Holding B.V. Solid Control Holding B.V.
