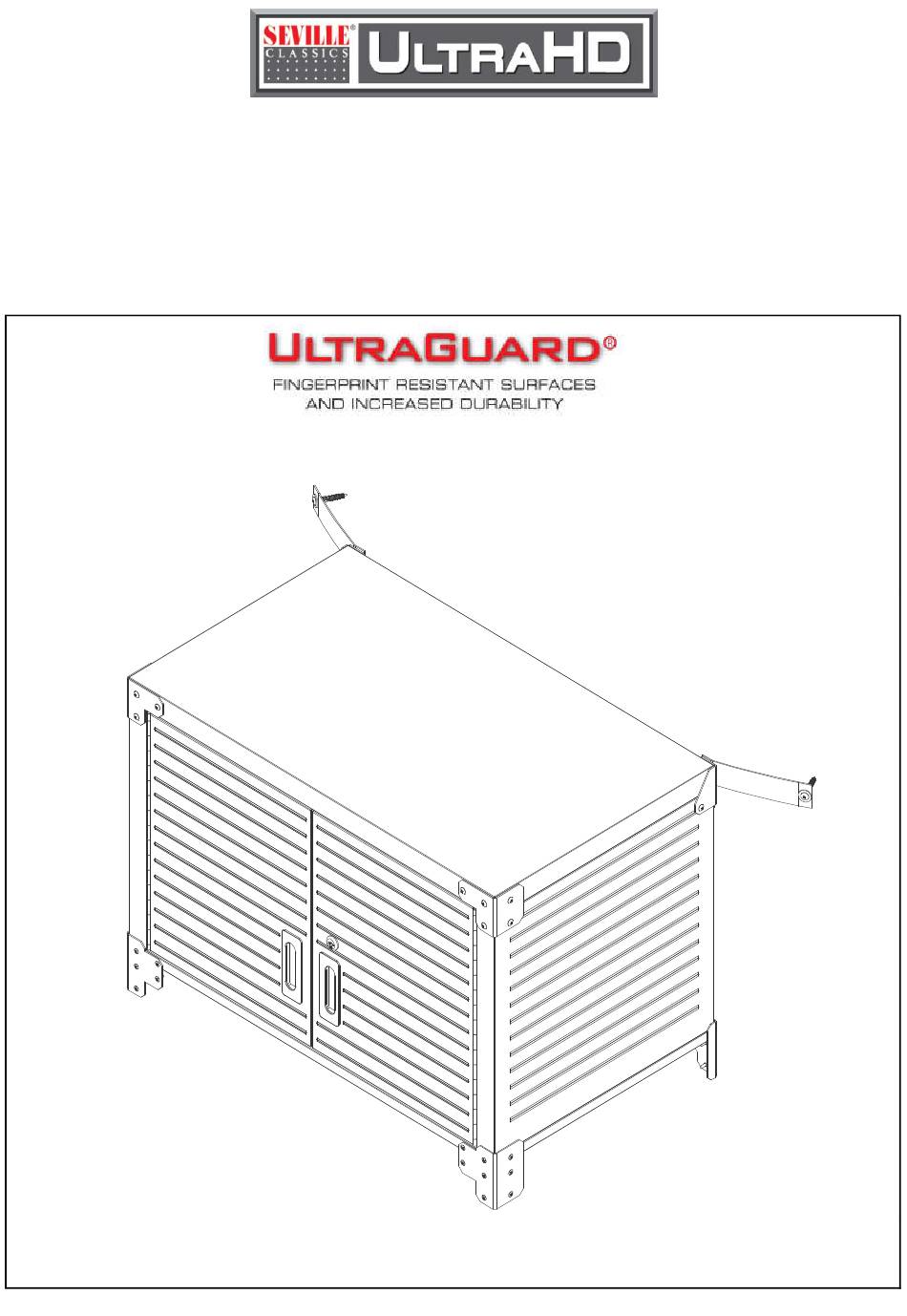

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Cabinet Stacker (Model No. 20594，20595) Granite Graphite 30in. W x 18in. D x 18.5in. H (762cm x 45.7cm x 46.9cm H) Reference page 9 for special care and maintenance of stainless steel SC230720...
- Page 2 #14-A #8-A #20-A #17-A #55-A #27-B #15-A #19-A #18-A Includes Engineered Nylon Anchors for quick assembly...
-
Page 3: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 10.) (#1) Left Panel x 1 PC (#2) Right Panel x 1 PC (#3) Top Panel x 1 PC (#4) Bottom Panel x 1 PC (#6) Left Door x 1 PC... - Page 4 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 10.) (#14) Corner Protection A x 1 PC (#15) Corner Protection B x 1 PC (#17-A) Left Front Bottom Corner Protection x 1 PC (#18-A) Right Front Bottom Corner Protection x 1 PC (#19-A) Right Back Bottom Corner Protection x 1 PC...
- Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 10.) (#23) Magnet x 2 PCS (#27) WASHER (M4) x 2 PCS (#27-B) WASHER (M8)x 2 PCS (#41) Screw F (M4 x 8L) x 40 PCS (#42) Screw G (M4 x 30L) x 6 PCS (#54) Screw N (M4 x 10L) x 26 PCS...
- Page 6 UltraHD® Cabinet Stacker (Model No. 20594,20595) *NOTE: We recommend using TWO people to assemble the cabinet* Back TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep on a low torque setting. Step 1: Install Left Panel (#1) to the Top Panel (#3) Place the Left Panel (#1) on the ground vertically.
- Page 7 UltraHD® Cabinet Stacker (Model No. 20594,20595) *NOTE: We recommend using TWO people to assemble the cabinet* #8-A Step 4: Install Back Panel (#8-A). 1.Place the Back Panel (#8-A) onto both Left and Right Side Panels (#1 and # 2) and Top and Bottom Panel (#3 and #4).
- Page 8 UltraHD® Cabinet Stacker (Model No. 20594,20595) *NOTE: We recommend using TWO people to assemble the cabinet* Install Right Door (#7) Step 7: Attach the Right Door (#7) to the Right Panel (#2). Use 3 pcs of Screw F (#41) to tighten the Door Panel.
- Page 9 UltraHD® Cabinet Stacker (Model No. 20594,20595) *NOTE: We recommend using TWO people to assemble the cabinet* Remove 2 pcs (#60) Mounting Strap and Step 10: screws from the top back panel of 20162B/20163B. #20-A Attach Cabinet Stacker Model No. Step 11: 20594/20595 #17-A A.
- Page 10 UltraHD® Cabinet Stacker (Model No. 20594,20595) *NOTE: We recommend using TWO people to assemble the cabinet* Step 12: Install Mounting Strap (#60) A. Remove 1 pc Screw F (#41) from the Right Back Upper Corner Protection. B. Attach the Mounting Strap (#60) to the #55-A back Corner Protection brackets as the left photo shows using Screw O (#61) and...
-
Page 11: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 12 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20293 (Granite) Model No. 20258 (Graphite) Model No. 20292 (Graphite) Model No. 20252 (White) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No.
