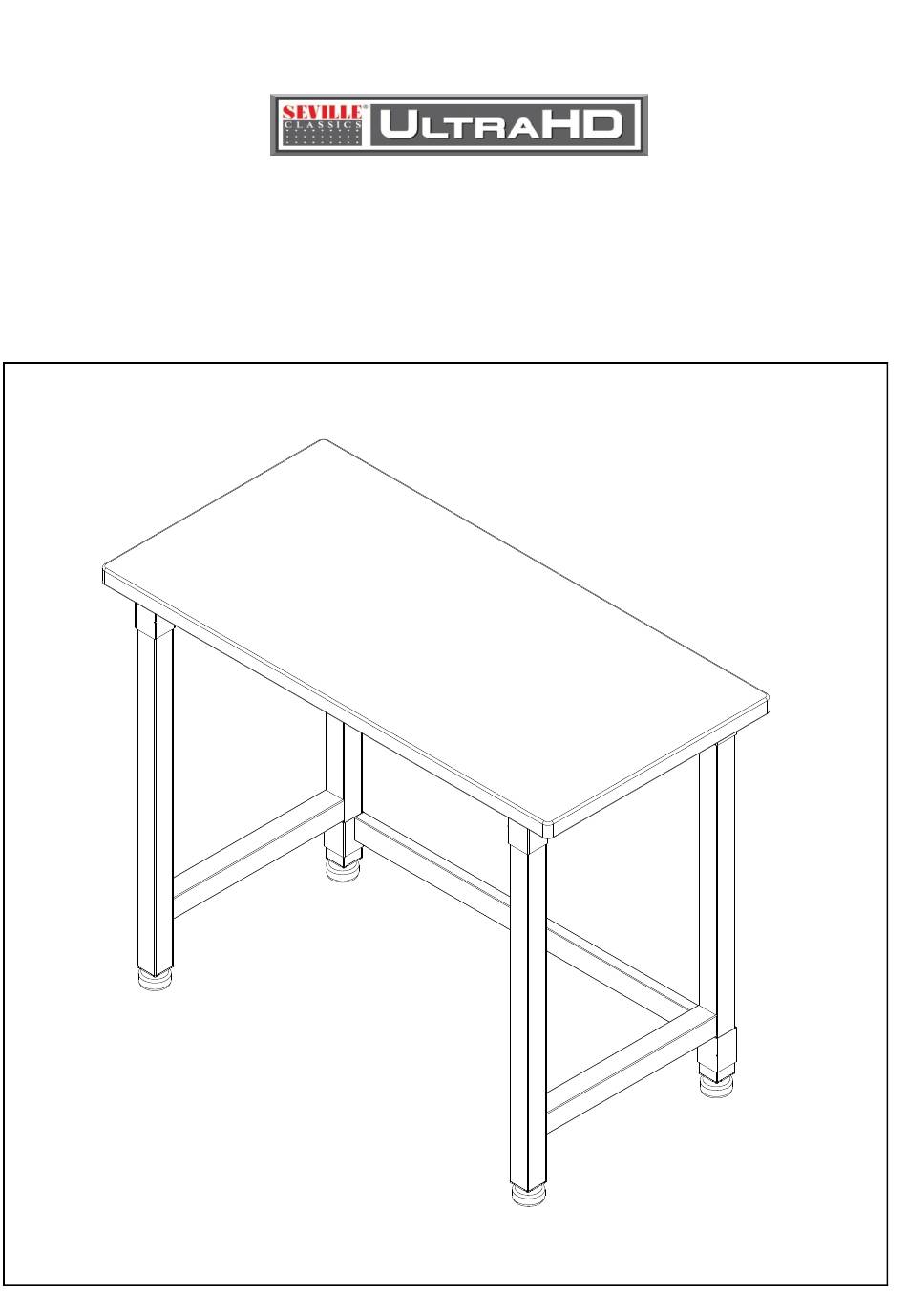

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Workbench (Model No. 20287) 48 in W X 24 in D X 37.5 in H (1.21m x 60.9 cm x 95.2 cm) TR161028...
- Page 2 (pg 1 of 5) #5-B #27-B #3-B...
-
Page 3: Parts List
PARTS LIST (pg 2 of 5) Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please refer to page 5 of 5) to send you the missing parts. (#3-B) BOTTOM CROSSBAR x 1 PC (#4) TOP CROSSBAR x 2 PCS (#1) SOLID HARDWOOD TOP x 1 PC... - Page 4 UltraHD Workbench (Model No. 20287) (Pg 3 of 5) *NOTE: We recommend using TWO people to assemble the work bench. Step 1: Assemble Top Crossbar (#4) Open the package, remove and place all parts to the side. Then open the package of the Solid Hardwood Top (#1).
- Page 5 UltraHD Workbench (Model No. 20287) (Pg 4 of 5) *NOTE: We recommend using TWO people to assemble the work bench. Assemble Bottom Crossbar (#3-B) Step 3: Attach the Bottom Crossbar (#3-B) to the #27-B back of (#5-B) Leg Piece, line up the screw #3-B holes, use 4 pcs Screw E (#40) with Washer (#27-B) and Wrench (#25) to...
-
Page 6: Contact Information
(pg 5 of 5) *If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English/Spanish) customer service department at: Seville Classics, Inc. 19401 South Harborgate Way Torrance, CA 90501 Telephone: (800) 323-5565 within USA... - Page 7 UltraHD Line Model No. 20206 Model No. 16221 UltraHD Locker Gear Cabinet UltraHD Workbench Model No. 20262 Model No. 20230 UltraHD Wall Cabinet UltraHD Rolling Workbench Model No. 20217 Model No. 20255 UltraHD Trash Bin UltraHD Tool Box...
