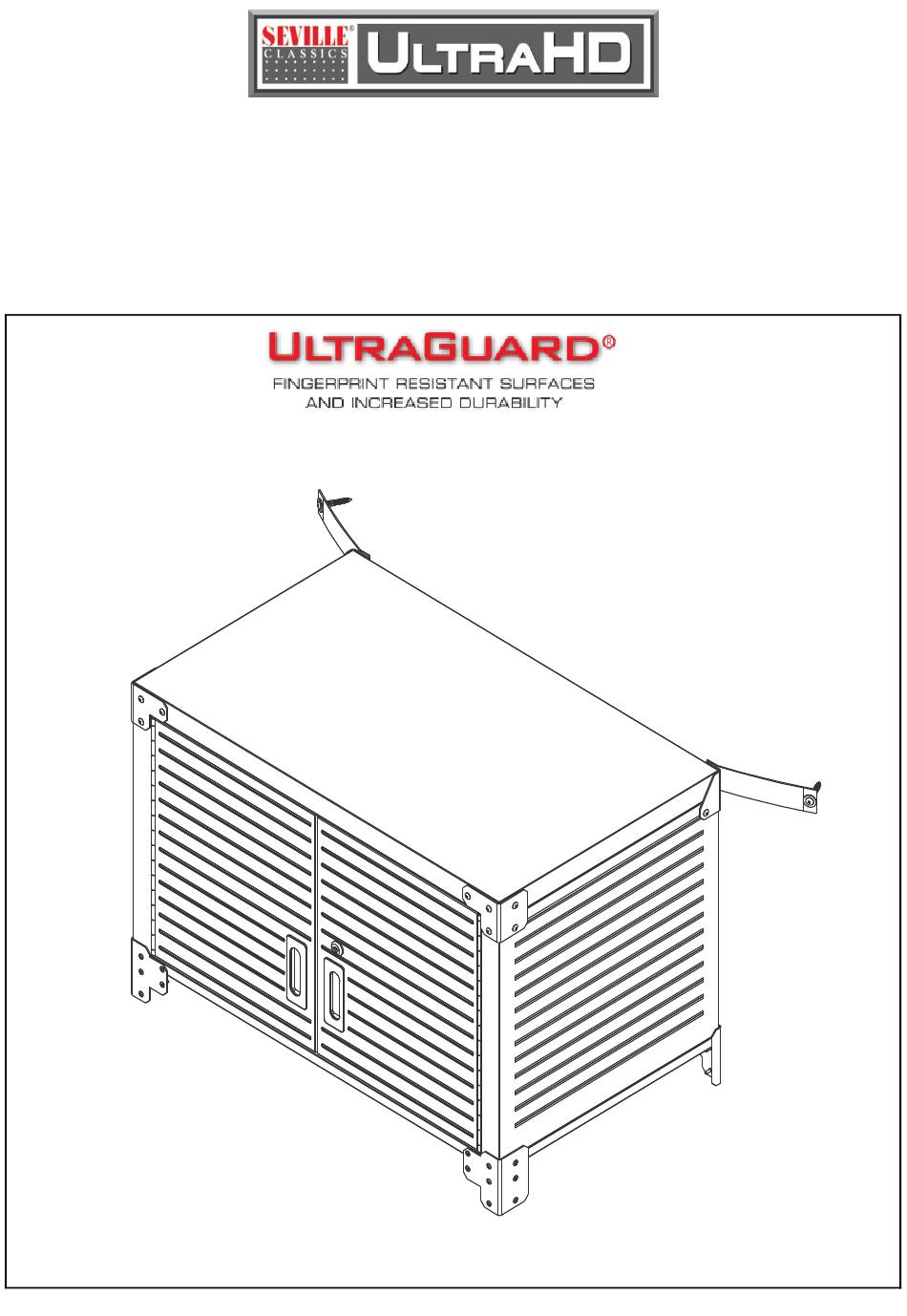

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Cabinet Stacker (Model No. 20162T, 20163T, 20165T, 20166T) Granite Graphite White 30in. W x 18in. D x 18.5in. H (76.2cm x 45.7cm x 46.9cm H) Reference page 9 for special care and maintenance of stainless steel SC240625...
- Page 2 #14-A #8-A #20-A #17-A #55-A #27-B #15-A #19-A #18-A Includes Engineered Nylon Anchors for quick assembly...
- Page 3 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 10.) (#1) Left Panel x 1 PC (#2) Right Panel x 1 PC (#3) Top Panel x 1 PC (#4) Bottom Panel x 1 PC (#6) Left Door x 1 PC...
- Page 4 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 10.) (#14) Corner Protection A x 1 PC (#15) Corner Protection B x 1 PC (#17-A) Left Front Bottom Corner Protection x 1 PC (#18-A) Right Front Bottom Corner Protection x 1 PC (#19-A) Right Back Bottom Corner Protection x 1 PC...
- Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 10.) (#23) Magnet x 2 PCS (#27) WASHER (M4) x 2 PCS M8X20 pcs (#27-B) WASHER (M8)x 2 PCS (#41) Screw F (M4 x 8L) x 40 PCS (#42) Screw G (M4 x 30L) x 6 PCS...
- Page 6 UltraHD® Cabinet Stacker (Model No. 20162T, 20163T, 20165T, 20166T) *NOTE: We recommend using TWO people to assemble the cabinet* Back TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep on a low torque setting. Step 1: Install Left Panel (#1) to the Top Panel (#3) Place the Left Panel (#1) on the ground vertically.
- Page 7 UltraHD® Cabinet Stacker (Model No. 20162T, 20163T, 20165T, 20166T) *NOTE: We recommend using TWO people to assemble the cabinet* #8-A Step 4: Install Back Panel (#8-A). 1.Place the Back Panel (#8-A) onto both Left and Right Side Panels (#1 and # 2) and Top and Bottom Panel (#3 and #4).
- Page 8 UltraHD® Cabinet Stacker (Model No. 20162T, 20163T, 20165T, 20166T) *NOTE: We recommend using TWO people to assemble the cabinet* Install Right Door (#7) Step 7: Attach the Right Door (#7) to the Right Panel (#2). Use 3 pcs Screw F (#41) to tighten the Door Panel.
- Page 9 UltraHD® Cabinet Stacker (Model No. 20162T, 20163T, 20165T, 20166T) *NOTE: We recommend using TWO people to assemble the cabinet* Remove 2 pcs (#60) Mounting Strap and Step 10: screws from the top back panel of 20162B/20163B. #20-A Attach Cabinet Stacker Model No. Step 11: 20162T/20163T #17-A...
- Page 10 UltraHD® Cabinet Stacker (Model No. 20162T, 20163T, 20165T, 20166T) *NOTE: We recommend using TWO people to assemble the cabinet* Step 12: Install Mounting Strap (#60) A. Remove 1 pc Screw F (#41) from the Right Back Upper Corner Protection. #55-A B.
- Page 11 If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA...
- Page 12 UltraHD® Line UltraHD® Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20225 (Granite) Model No. 20292 (Granite) Model No. 20081 (Graphite) Model No. 20293 (Graphite) Model No. 20082 (Red) Model No. 20134 (Red) Model No. 20083 (White) Model No. 20131 (White) UltraHD®...
