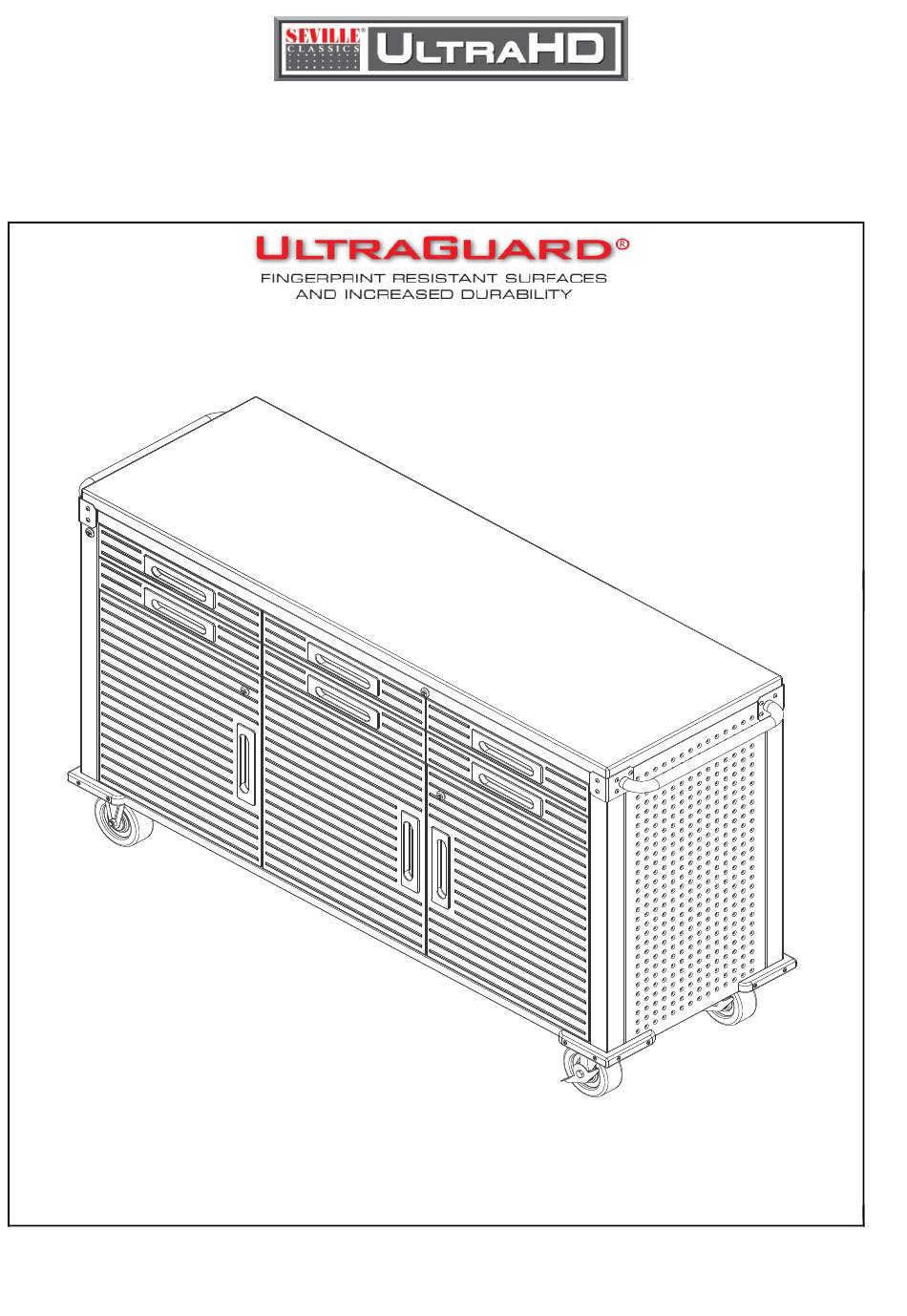

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® 60" Rolling Workbench (Model No. 20110, 20111) Granite Graphite 60 in. W X 20 in. D X 37.5 in. H (152.4cm W x 50.8cm D x 95.2cm H) Reference page 11 for special care and maintenance of stainless steel TR230525...
- Page 2 #26-2 #26-2 #26-2 #26-1 #26-1 #26-1 #27-B #27-B #27-B #13-B #13-B #13-B #19-A #19-A #19-A #20-A #20-A #20-A #20-C #20-C #20-C #20-B #20-B #20-B #12-B #12-B #12-B...
-
Page 3: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 12). (#1) LEFT SIDE PANEL x 1 PC (#2) RIGHT SIDE PANEL x 1PC (#3) FRONT FRAME x 1 PC (#4) BACK FRAME x 1 PC (#5) BASE PANEL x 1 PC... - Page 4 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 12). (#11) LEFT SIDE SLIDER SUPPORT x 1 PC (#9) PUSH BAR x 2 PCS (#20-A) LEFT DOOR x 1 PC (#20-C) MIDDLE DOOR x 1 PC (#20-B) RIGHT DOOR x 1 PC...
- Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 12). (#23) MAGNET x 1 PC (#27) RIGHT SIDE SLIDER SUPPORT x 1 PC (#19-A) LEFT SIDE DOOR HINGE x 2 PCS (#18) LEFT DOOR HINGE x 2 PCS (#19) RIGHT DOOR HINGE x 2PCS...
- Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 12). (#57) BUMPER x 4 PCS (#25) WRENCH x 1 PC (#17) SCREW D ( M8 x 18L) x 16 PCS (#15) SCREW B (M4 x 8L) x 78 PCS (#41) SCREW F (M4 x 8L) x 70 PCS (#42) SCREW G (M4 x 30L) x 16 PCS...
- Page 7 UItraHD® Rolling Workbench (Model No. 20110, 20111) *NOTE: We recommend using TWO people to assemble the workbench.* TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep on a low torque setting. Step 1. Open both boxes, locate and remove the cardboard box containing the Solid Hardwood Top (#8).
- Page 8 UItraHD® Rolling Workbench (Model No. 20110, 20111) *NOTE: We recommend using TWO people to assemble the workbench.* Step 4. Install Left Side Slider Support (#11) Back Attach the Left Side Slider Support (#11) to the Back Frame (#4), make sure the "Top" of Left Side Slider Support (#11) is close to the Solid Hardwood Top (#8).
- Page 9 UItraHD® Rolling Workbench (Model No. 20110, 20111) *NOTE: We recommend using TWO people to assemble the workbench.* Step 9. Install Base Panel (#5) Attach Base Panel (#5) to the rest of the unit as the left picture shows. Use 10 pcs of Screw F (#41) and Screw Driver (#21) to fasten.
- Page 10 UItraHD® Rolling Workbench (Model No. 20110, 20111) *NOTE: We recommend using TWO people to assemble the workbench.* #26-2 #26-2 #26-2 Step 13. A. Fold up all three panels of the Small Drawer Body (#26-2). B. Use 2pcs Screw B (#15) to tighten the back panel to the drawer left and right panels.
- Page 11 UItraHD® Rolling Workbench (Model No. 20110, 20111) *NOTE: We recommend using TWO people to assemble the workbench.* Step 14. Place the Drawers. A. Pull out the sliders completely, then put the drawer to the sliders, make sure the square holes on the drawer side panels are line up, and the drawer is hook on the sliders completely as show left.
- Page 12 Variations of color within these standards and minor scratches in the clear coat finish will not be a reason for replacement. If the wood top is received with excessive damage or splitting, Seville Classics® will guarantee replacement of the wood top.
-
Page 13: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 14 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) Model No. 20252 (White) Model No. 20293 (Graphite) Model No. 20258 (Graphite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No.
