Summary of Contents for Seville Classics 20288

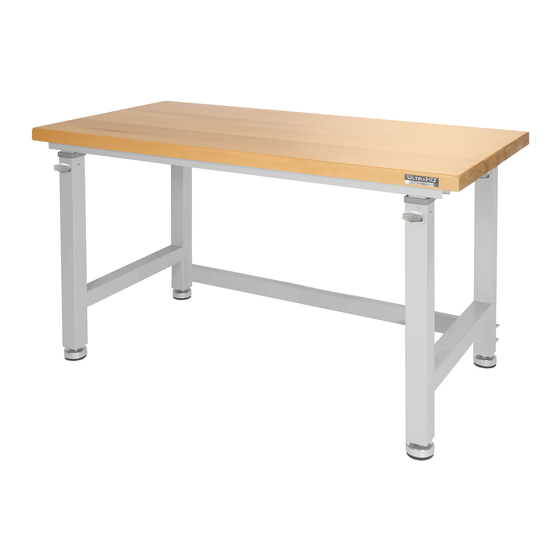

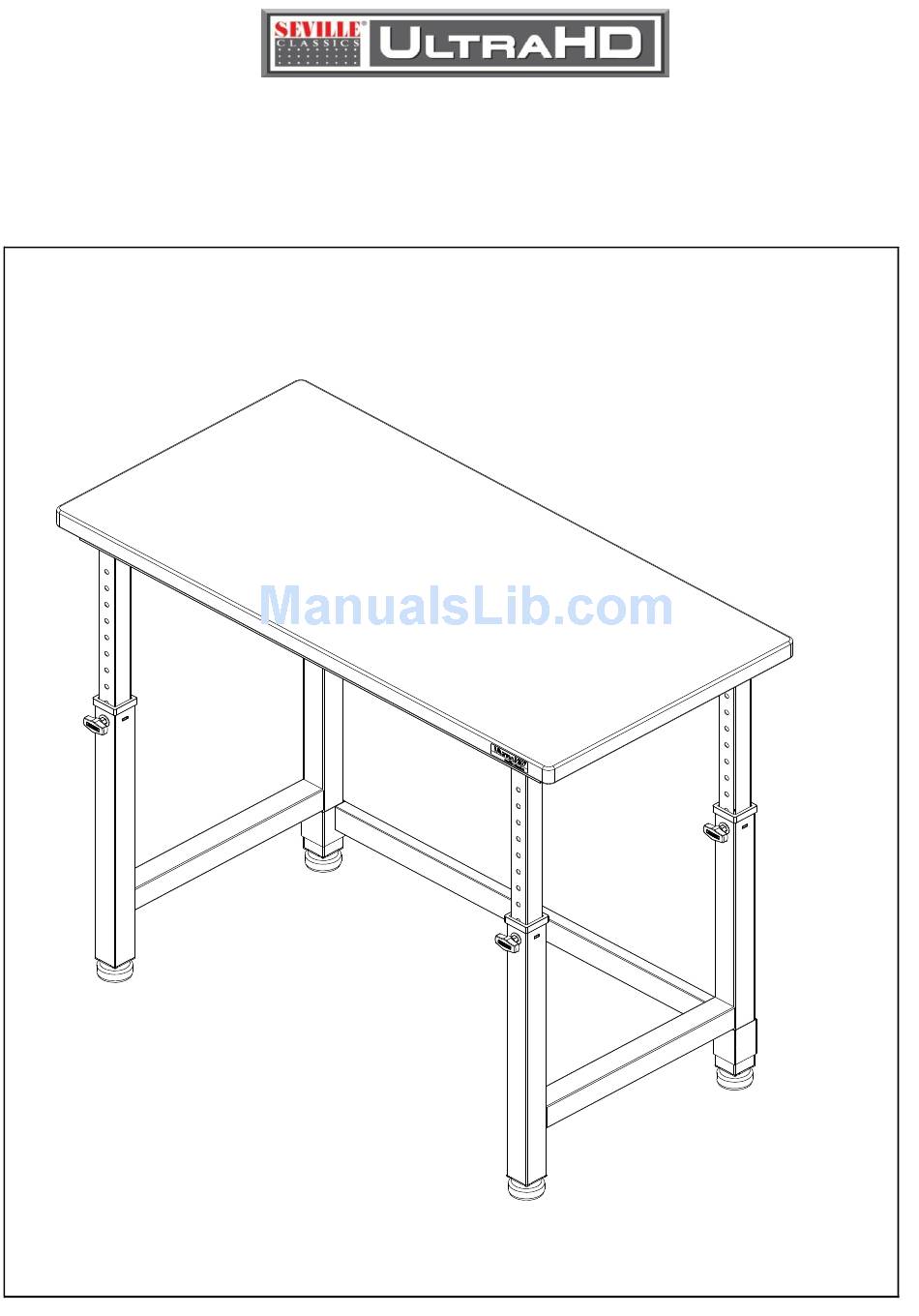

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD Height Adjustable Workbench (Model No. 20288) 48 in W X 24 in D X 28.5-42 in H (1.21m x 60.9 cm x 72.4-106.7 cm) TR170420...
- Page 2 (pg 1 of 5)
-
Page 3: Parts List
PARTS LIST (pg 2 of 5) Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please refer to page 5 of 5) to send you the missing parts. (#3-B) Bottom Crossbar x 1 PC (#4) Top Crossbar x 2 PCS (#1) Wood Top x 1 PC... - Page 4 UltraHD Height Adjustable Workbench (Model No. 20288) (Pg 3 of 5) *NOTE: We recommend using TWO people to assemble the workbench. Step 1: Assemble Top Crossbar (#4) Open the package, remove and place all parts to the side. Then open the package of the Solid Hardwood Top (#1).
- Page 5 UltraHD Height Adjustable Workbench (Model No. 20288) (Pg 4 of 5) *NOTE: We recommend using TWO people to assemble the workbench. Assemble Hand Knob (#26) Step 3: Insert 4 pcs of Hand Knob (#26) into the leg tube using Washer (#27-B).
-
Page 6: Contact Information
(pg 5 of 5) *If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 South Harborgate Way Torrance, CA 90501... - Page 7 UltraHD Line Model No. 20206 Model No. 20230 UltraHD Workbench UltraHD Wall Cabinet Model No. 20262 Model No. 20283 UltraHD Mobile Table UltraHD Rolling Workbench Model No. 20217 Model No. 20255 UltraHD Trash Bin UltraHD Tool Box...
