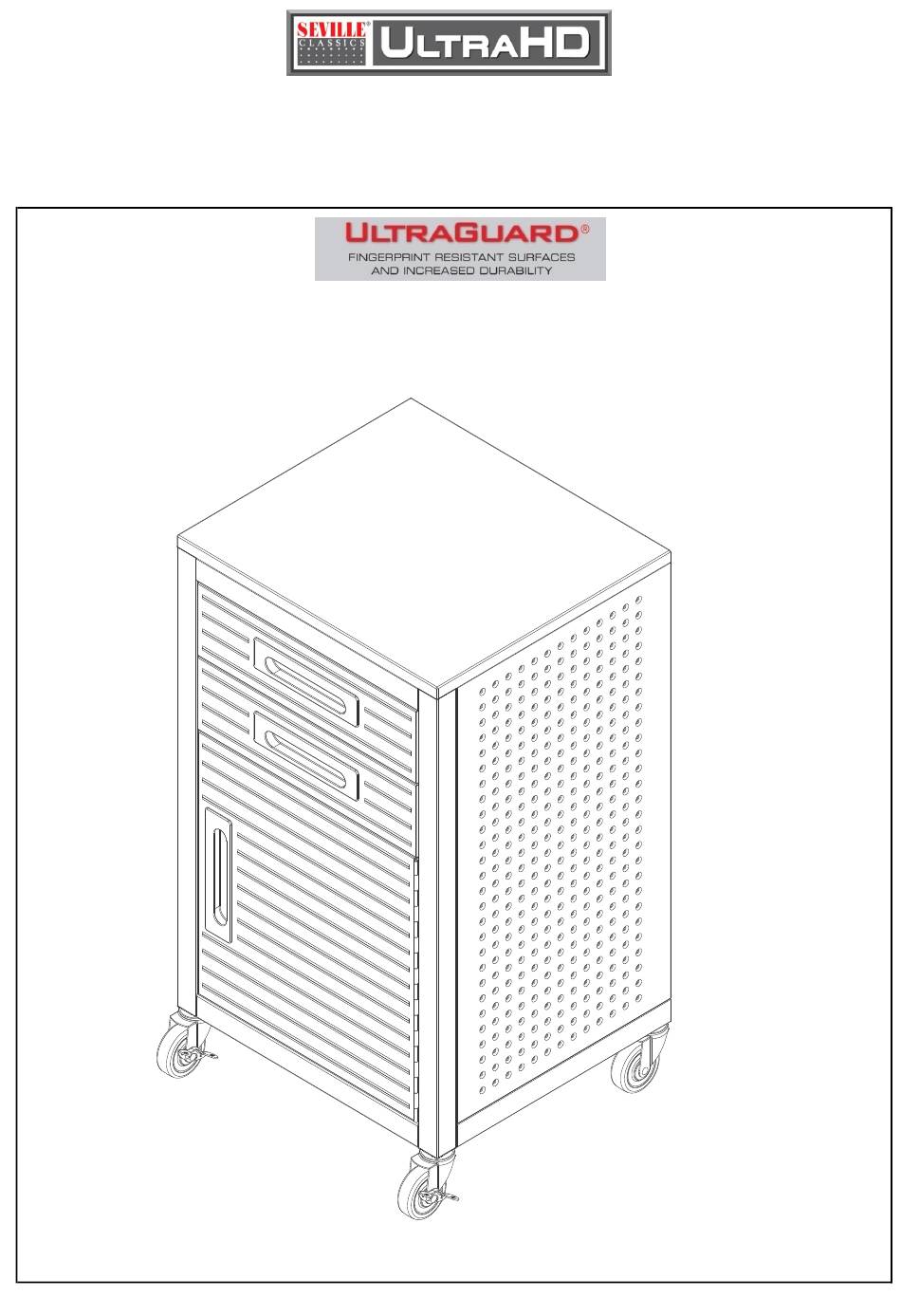

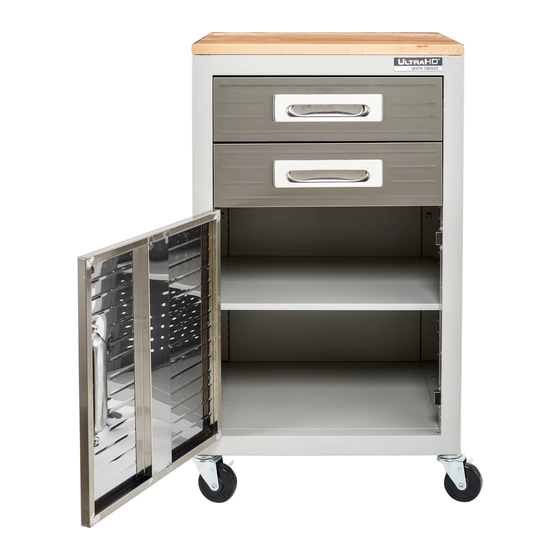

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® 2-Drawer Storage Cabinet (Model No. 20213) 20" W x 18" D x 34.7" H (50.8 cm W x 45.7 cm D x 88.2 cm H) Reference page 11 for special care and maintenance of stainless steel TR201224...
- Page 3 #20 Drawer...
-
Page 4: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 12 of 13.) (#1)Left Panel X 1PC (#2)Right Panel X 1PC (#3) Wood Top X 1PC (#4)Bottom Panel X 1PC (#5)Middle Shelf X 1PC (#6)Door Panel X 1PC... - Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 12 of 13.) (#20-1)Drawer Front Panel X 2PCS (#20-2)Drawer Base Panel X 2PCS (#20-3) Drawer Left Panel X 2PCS (#20-4)Drawer Right Panel X 2PCS (#20-5)Drawer Back Panel X 2PCS...
- Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (please refer to page 12 of 13) . (#14) Screw A (M4 x 10 ) X 37 PCS (#15) Screw B (M4 X 8L) X 44PCS (#21) Screw Driver x 1 PC (#23) Magnet x 2 PCS...
- Page 7 UltraHD® 2-Drawer Storage Cabinet (Model No. 20213) *NOTE: We recommend using TWO people to assemble the cabinet. TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep Front on a low torque setting. WARNING: Some parts may have sharp edges.
- Page 8 UltraHD® 2-Drawer Storage Cabinet (Model No. 20213) *NOTE: We recommend using TWO people to assemble the cabinet. Install Bottom Panel (#4) Step 4: Attach Bottom Panel (#4) to the Left and Right Panel (#1 & #2) as the left picture shows. Use 6 pcs of Screw A (#14) and Screw Driver (#21) to tighten.
- Page 9 UltraHD® 2-Drawer Storage Cabinet (Model No. 20213) *NOTE: We recommend using TWO people to assemble the cabinet. #20-3 #20-1 Step 7: Install Drawer Front Panel (#20-1) and Drawer Left Panel (#20-3) Attached the Drawer Left Panel (#20-3) to the Drawer Front Panel (#20-1) as the left photo shows.
- Page 10 UltraHD® 2-Drawer Storage Cabinet (Model No. 20213) *NOTE: We recommend using TWO people to assemble the cabinet. Place the Drawers (#20) Step 7: A. Pull out the sliders completely, then attach the drawer to the sliders. Make sure the square holes on the drawer side panels are line up, and the drawer is hooked onto the sliders completely.
- Page 11 UltraHD® 2-Drawer Storage Cabinet (Model No. 20213) *NOTE: We recommend using TWO people to assemble the cabinet. Step 9: Install the Middle Shelf (#5) Place the Middle Shelf (#5) in the unit at the desired height and ensure that all four corners are secured on the hooks on the front and back frame.
- Page 12 UltraHD® 2-Drawer Storage Cabinet (Model No. 20213) *NOTE: We recommend using TWO people to assemble the cabinet. How to pull the drawer out of the unit? 1). To pull the drawers out of the unit, pull the black plastic clip on the right side of the drawer up, then push on the black plastic clip on the left side of the drawer down.
-
Page 13: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 14 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20230 (Granite) Model No. 20262 (Granite) Model No. 20140 (Graphite) Model No.
